SONOFF MINI Extreme Zigbee Dimmer Switch
SKU:MINI-ZBDIM
Manufacturer:SONOFF
New
The SONOFF MINI-ZBDIM is an ultra-compact Zigbee 3.0 smart dimmer switch designed for concealed installation behind existing wall switches. This module enables smart lighting automation and dimming capabilities without requiring the replacement of original hardware.
Key Features

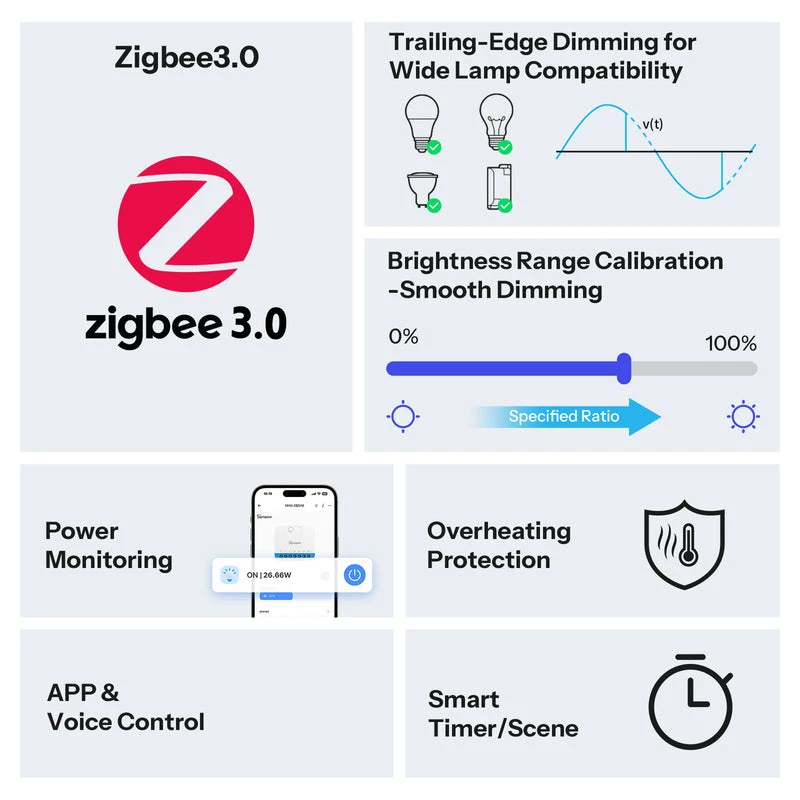

- Employs trailing-edge dimming technology for smooth, flicker-free brightness control.
- Supports loads up to 200 VA for dimmable LEDs and up to 400 W for incandescent or halogen lamps.
- Provides real-time energy monitoring to track power consumption via compatible applications.
- Includes integrated overheat protection for enhanced operational safety.
- Functions as a Zigbee router, extending the range and stability of the local Zigbee mesh network.

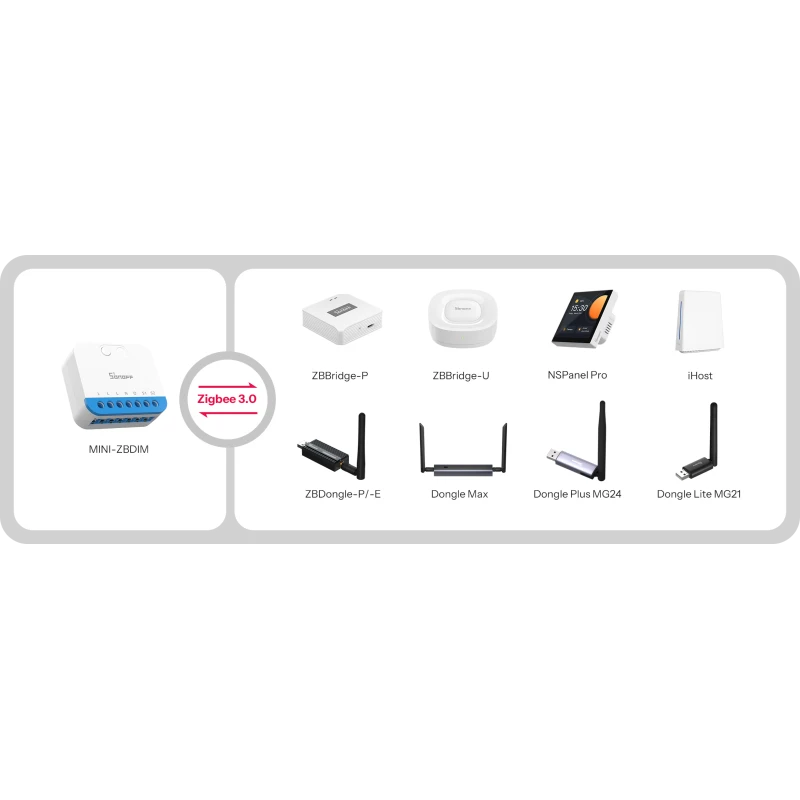

- Broad compatibility with SONOFF hubs (NSPanel Pro, iHost, ZBBridge Pro) and Home Assistant (ZHA, Zigbee2MQTT).
- Supports voice control integration through Amazon Alexa and Google Home.
Applications

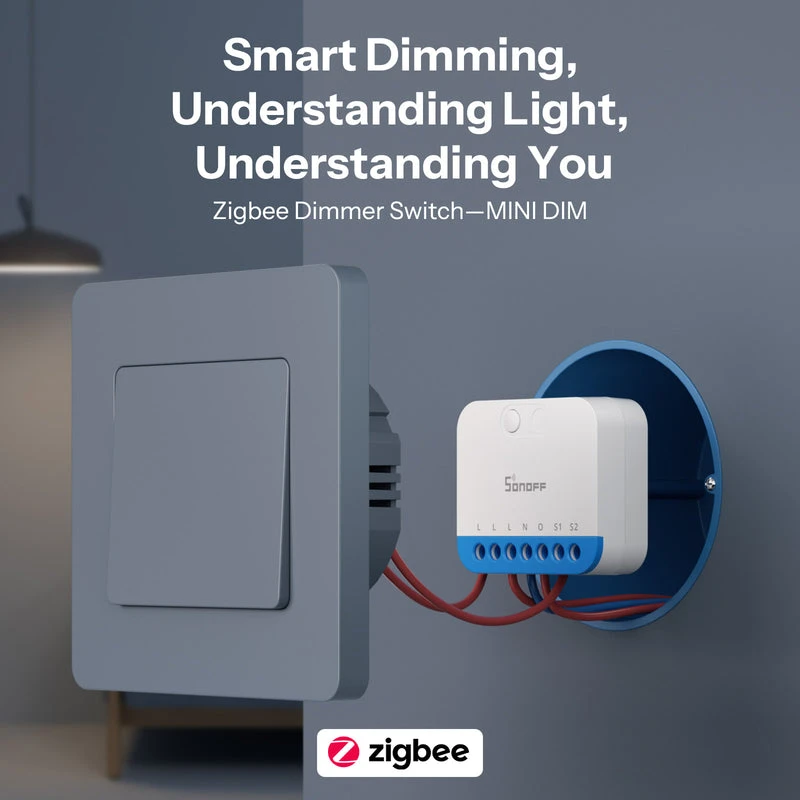

The MINI-ZBDIM is specifically engineered for hidden mounting in standard junction boxes. Its miniature form factor makes it an ideal solution for retrofitting smart dimming into existing residential or commercial lighting setups where space is limited and maintaining the original aesthetic is required.
Key Features
- Employs trailing-edge dimming technology for smooth, flicker-free brightness control.
- Supports loads up to 200 VA for dimmable LEDs and up to 400 W for incandescent or halogen lamps.
- Provides real-time energy monitoring to track power consumption via compatible applications.
- Includes integrated overheat protection for enhanced operational safety.
- Functions as a Zigbee router, extending the range and stability of the local Zigbee mesh network.
- Broad compatibility with SONOFF hubs (NSPanel Pro, iHost, ZBBridge Pro) and Home Assistant (ZHA, Zigbee2MQTT).
- Supports voice control integration through Amazon Alexa and Google Home.
Applications
The MINI-ZBDIM is specifically engineered for hidden mounting in standard junction boxes. Its miniature form factor makes it an ideal solution for retrofitting smart dimming into existing residential or commercial lighting setups where space is limited and maintaining the original aesthetic is required.
Model: MINI-ZBDIM
Series: MINI Extreme
Wireless Protocol: Zigbee 3.0 (IEEE 802.15.4)
MCU: EFR32MG21
Input Voltage: 220–240V AC 50Hz
Max Current: 2A
Max Load (Resistive): 400W
Max Load (LED): 200VA
Max Load (Electronic Transformer): 200W
Dimming Type: Trailing-edge
Dimming Range: 1% - 100%

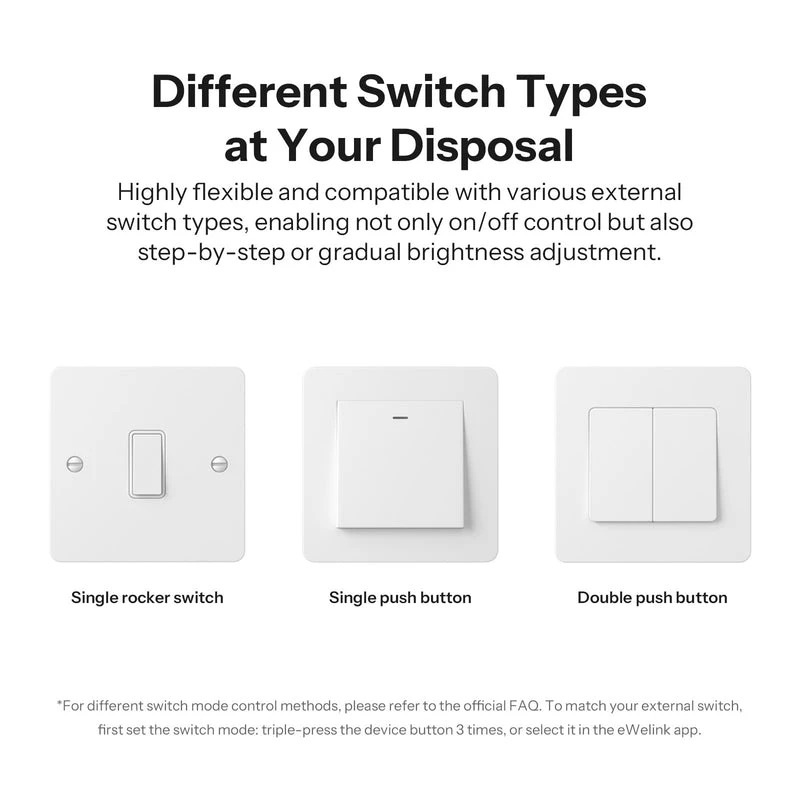

External Switch Support: Momentary (Push-button), Rocker (Toggle)

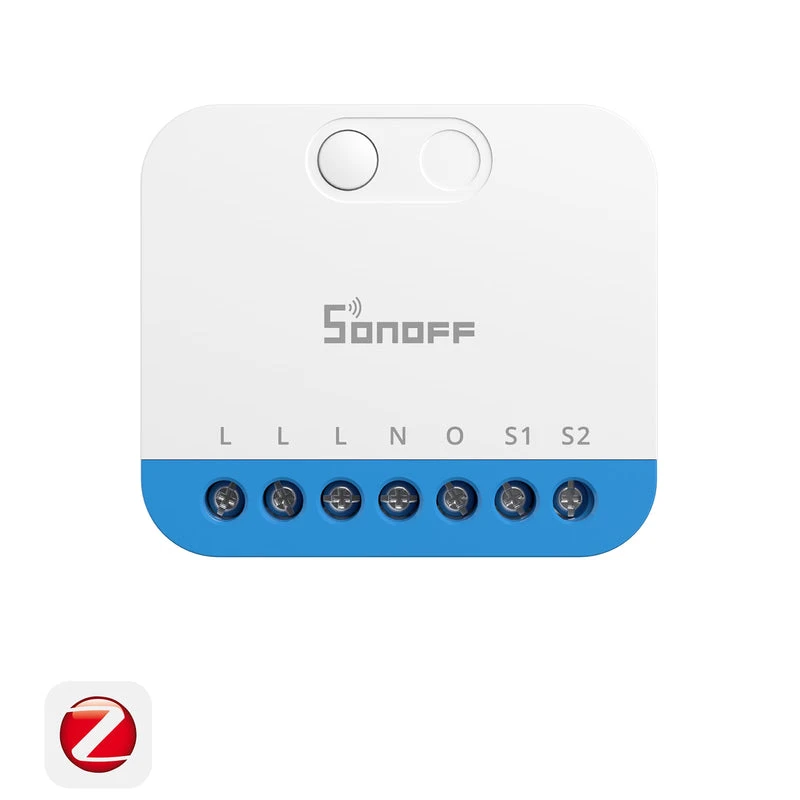

Wiring: Neutral wire required (L, N, O, S1, S2 terminals)
Dimensions: 45 x 39.4 x 16.8 mm
Net Weight: 24.5g
Operating Temperature: -10°C to 40°C
Operating Humidity: 5% - 95% RH (non-condensing)
Casing Material: PC V0 (White)
Features: Power Monitoring, Overheat Protection (TC sensor), Zigbee Router/Repeater, Brightness Calibration (Auto/Manual), 2-way control support
Certifications: CE, RoHS, FCC
Series: MINI Extreme
Wireless Protocol: Zigbee 3.0 (IEEE 802.15.4)
MCU: EFR32MG21
Input Voltage: 220–240V AC 50Hz
Max Current: 2A
Max Load (Resistive): 400W
Max Load (LED): 200VA
Max Load (Electronic Transformer): 200W
Dimming Type: Trailing-edge
Dimming Range: 1% - 100%
External Switch Support: Momentary (Push-button), Rocker (Toggle)
Wiring: Neutral wire required (L, N, O, S1, S2 terminals)
Dimensions: 45 x 39.4 x 16.8 mm
Net Weight: 24.5g
Operating Temperature: -10°C to 40°C
Operating Humidity: 5% - 95% RH (non-condensing)
Casing Material: PC V0 (White)
Features: Power Monitoring, Overheat Protection (TC sensor), Zigbee Router/Repeater, Brightness Calibration (Auto/Manual), 2-way control support
Certifications: CE, RoHS, FCC
-
