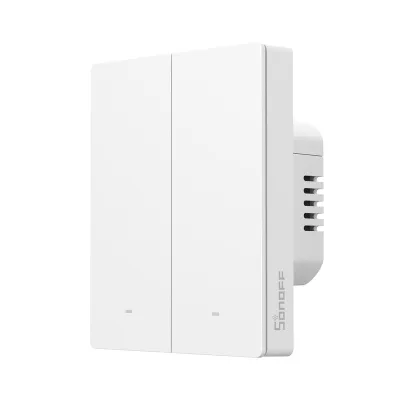

Sonoff SwitchMan Zigbee Smart Wall Switch 10A, 2 gangs
SKU:SF-ZBM5-2C-80W
Manufacturer:SONOFF
The Sonoff M5 SwitchMan ZBM5-2C-80W is a sophisticated smart light switch featuring physical push buttons and utilizing the Zigbee 3.0 protocol. This 2-gang version is an excellent solution for upgrading your home lighting to a smart system. One of its standout features is the flexible wiring support, as it can operate with both live + neutral and live-only (no-neutral) setups, making it ideal for retrofitting older homes without the need for extensive rewiring.
This 80mm modular version is designed to fit into Sonoff’s separately sold modular frames, allowing for a clean and professional multi-switch installation. With a maximum load capacity of 10A, it is robust enough to handle most household lighting fixtures and small electrical appliances. The physical buttons provide a traditional tactile experience, while the smart connectivity offers modern convenience.
Compatibility is a core strength of this device. It works natively with the eWeLink app via Sonoff gateways and is fully compatible with Zigbee2MQTT and ZHA for Home Assistant enthusiasts. It also integrates smoothly with Amazon Alexa, Google Assistant, SmartThings, and Apple Siri (via compatible gateways). When installed with a neutral wire, the switch acts as a Zigbee router, strengthening your home's mesh network and improving overall connectivity.
Users can take advantage of smart features like remote monitoring, scheduling, and complex scene creation. For those using smart bulbs, the detachable relay mode (available with live + neutral wiring) allows you to decouple the switch from the power output, ensuring your smart bulbs remain powered even when the wall switch is turned off.
This 80mm modular version is designed to fit into Sonoff’s separately sold modular frames, allowing for a clean and professional multi-switch installation. With a maximum load capacity of 10A, it is robust enough to handle most household lighting fixtures and small electrical appliances. The physical buttons provide a traditional tactile experience, while the smart connectivity offers modern convenience.
Compatibility is a core strength of this device. It works natively with the eWeLink app via Sonoff gateways and is fully compatible with Zigbee2MQTT and ZHA for Home Assistant enthusiasts. It also integrates smoothly with Amazon Alexa, Google Assistant, SmartThings, and Apple Siri (via compatible gateways). When installed with a neutral wire, the switch acts as a Zigbee router, strengthening your home's mesh network and improving overall connectivity.
Users can take advantage of smart features like remote monitoring, scheduling, and complex scene creation. For those using smart bulbs, the detachable relay mode (available with live + neutral wiring) allows you to decouple the switch from the power output, ensuring your smart bulbs remain powered even when the wall switch is turned off.
Model: ZBM5-2C-80W
MCU: EFR32MG22
Input/Output: 100-240V~ 50/60Hz
Max Load: 10A per circuit, total max. 10A resistive load
LED Load: 400W @ 240V per circuit, total 400W @ 240V
Minimum Load: 3W (no-neutral wiring, bypass module may be required)
Protocol: Zigbee 3.0
Net Weight: 167.6g
Dimensions: 86 x 71 x 40.3mm
Color: White
Casing Material: PC+CRS
IP Rating: IP20
Operating Temperature: -10°C ~ 40°C
Operating Humidity: 5% ~ 95% RH (non-condensing)
Certification: CE / RoHS
Wiring Options: Live + Neutral or Live-only
Physical Buttons: 2 buttons
App Compatibility: eWeLink app
Smart Home Integration: Amazon Alexa, Google Assistant, SmartThings, Zigbee2MQTT, ZHA
MCU: EFR32MG22
Input/Output: 100-240V~ 50/60Hz
Max Load: 10A per circuit, total max. 10A resistive load
LED Load: 400W @ 240V per circuit, total 400W @ 240V
Minimum Load: 3W (no-neutral wiring, bypass module may be required)
Protocol: Zigbee 3.0
Net Weight: 167.6g
Dimensions: 86 x 71 x 40.3mm
Color: White
Casing Material: PC+CRS
IP Rating: IP20
Operating Temperature: -10°C ~ 40°C
Operating Humidity: 5% ~ 95% RH (non-condensing)
Certification: CE / RoHS
Wiring Options: Live + Neutral or Live-only
Physical Buttons: 2 buttons
App Compatibility: eWeLink app
Smart Home Integration: Amazon Alexa, Google Assistant, SmartThings, Zigbee2MQTT, ZHA
