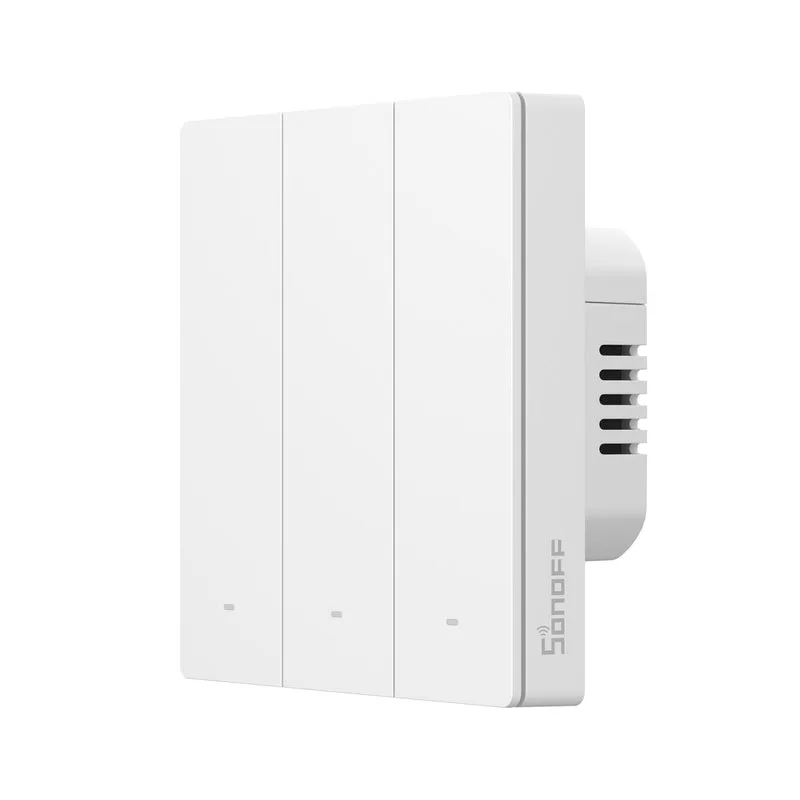

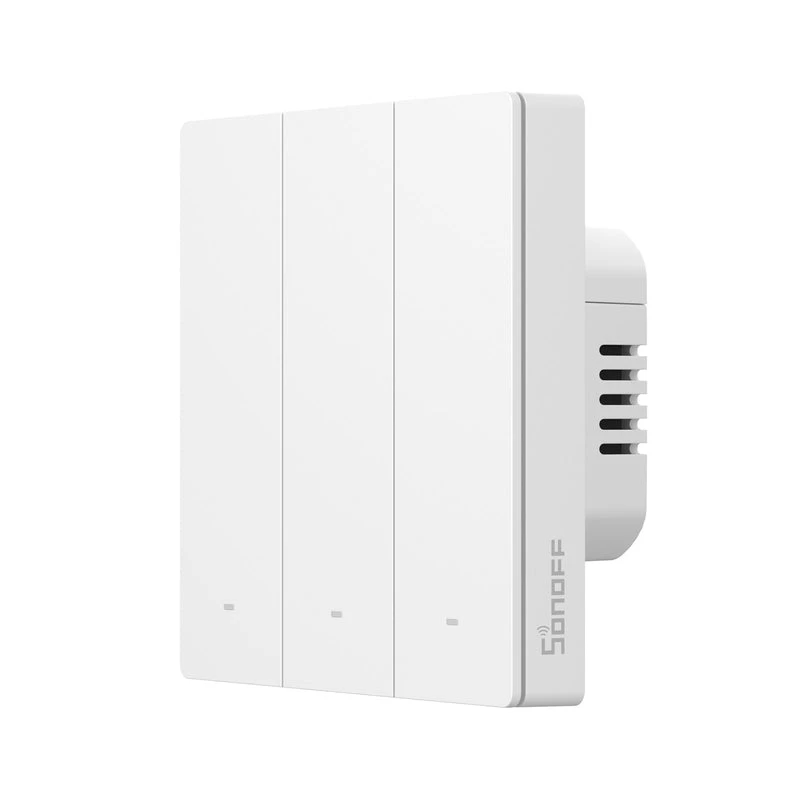

Sonoff SwitchMan Zigbee Smart Wall Switch 10A, 3 channels
SKU:SF-ZBM5-3C-80W
Manufacturer:SONOFF

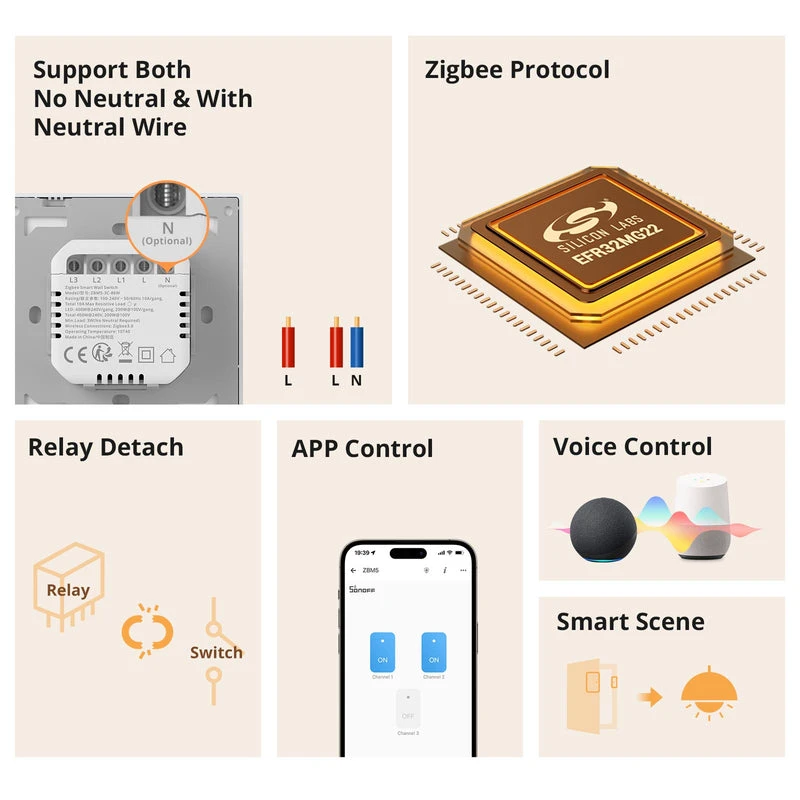

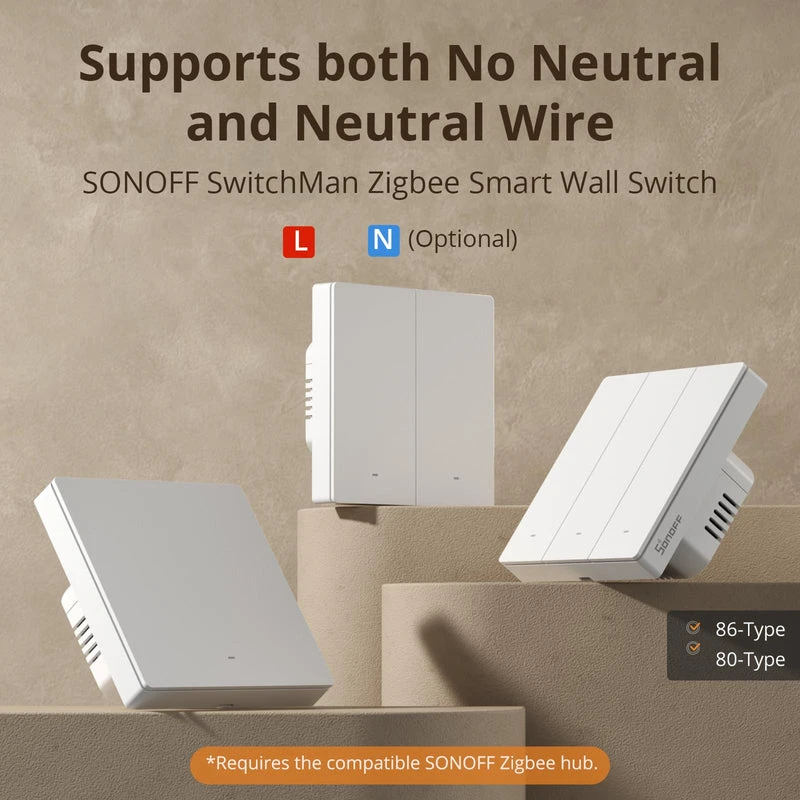

The Sonoff M5 SwitchMan (ZBM5-3C-80W) is a smart Zigbee 3.0 light switch featuring three physical push buttons. It is an ideal choice for upgrading your home lighting to a smart system while keeping the tactile feel of a traditional switch. One of its standout features is the flexible wiring support, as it can operate with both live + neutral or live-only (no-neutral) setups, making it perfect for retrofitting older homes without neutral wiring in the switch boxes.
This 80mm modular version is specifically designed for installation into Sonoff modular frames (available in double, triple, or quadruple configurations), offering a clean and professional look for multi-switch setups. With a 10A maximum load capacity, it can handle most household lighting fixtures and small electrical appliances. When wired with a neutral wire, the device also acts as a Zigbee router, strengthening your home's mesh network and improving overall connectivity.
Compatibility is a key strength, as it works seamlessly with the eWeLink app via Sonoff gateways and supports Zigbee2MQTT and ZHA for advanced Home Assistant users. This high-quality switch also integrates with popular ecosystems like Amazon Alexa, Google Assistant, and SmartThings, allowing for effortless voice control, remote state monitoring, and the creation of complex automated scenes.
This 80mm modular version is specifically designed for installation into Sonoff modular frames (available in double, triple, or quadruple configurations), offering a clean and professional look for multi-switch setups. With a 10A maximum load capacity, it can handle most household lighting fixtures and small electrical appliances. When wired with a neutral wire, the device also acts as a Zigbee router, strengthening your home's mesh network and improving overall connectivity.
Compatibility is a key strength, as it works seamlessly with the eWeLink app via Sonoff gateways and supports Zigbee2MQTT and ZHA for advanced Home Assistant users. This high-quality switch also integrates with popular ecosystems like Amazon Alexa, Google Assistant, and SmartThings, allowing for effortless voice control, remote state monitoring, and the creation of complex automated scenes.
Model: ZBM5-3C-80W
MCU: EFR32MG22
Power Supply: 100–240V~ 50/60Hz
Maximum Load: 10A per circuit, total max. 10A resistive load
LED Load: 400W @ 240V per circuit, total 400W @ 240V
Minimum Load: 3W (no-neutral wiring, bypass may be required)
Protocol: Zigbee 3.0

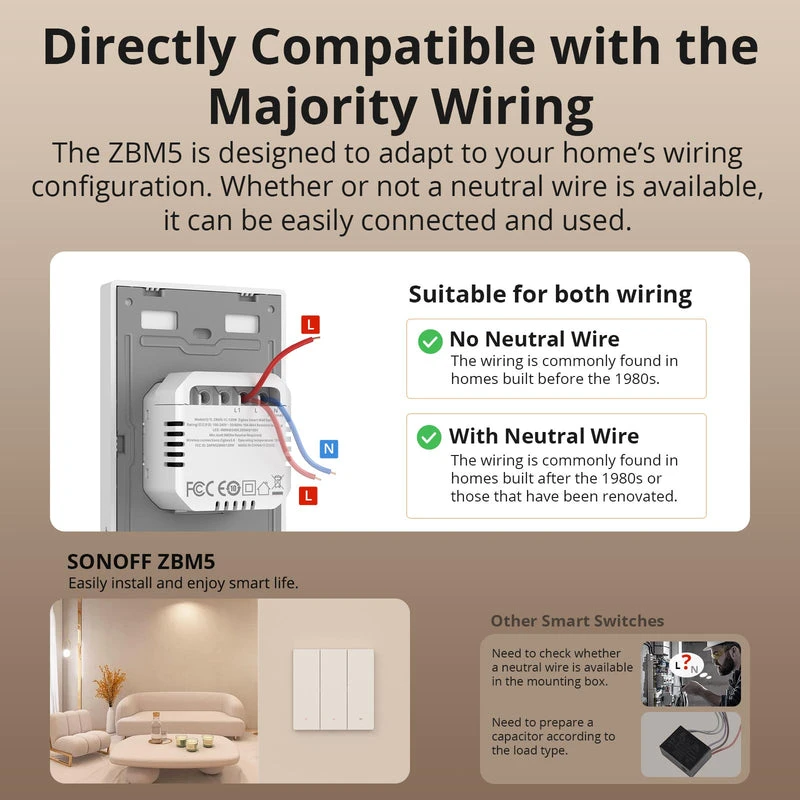

Wiring: Live + Neutral or Live-only (no-neutral)
IP Rating: IP20
Dimensions: 86 × 71 × 40.3 mm
Weight: 176g (net)
Casing Material: PC+CRS
Operating Temperature: -10℃ ~ 40℃
Operating Humidity: 5% ~ 95% RH, non-condensing
Certifications: CE / RoHS
Integration: eWeLink, Zigbee2MQTT, ZHA
Voice Control: Amazon Alexa, Google Assistant, Apple Siri
MCU: EFR32MG22
Power Supply: 100–240V~ 50/60Hz
Maximum Load: 10A per circuit, total max. 10A resistive load
LED Load: 400W @ 240V per circuit, total 400W @ 240V
Minimum Load: 3W (no-neutral wiring, bypass may be required)
Protocol: Zigbee 3.0
Wiring: Live + Neutral or Live-only (no-neutral)
IP Rating: IP20
Dimensions: 86 × 71 × 40.3 mm
Weight: 176g (net)
Casing Material: PC+CRS
Operating Temperature: -10℃ ~ 40℃
Operating Humidity: 5% ~ 95% RH, non-condensing
Certifications: CE / RoHS
Integration: eWeLink, Zigbee2MQTT, ZHA
Voice Control: Amazon Alexa, Google Assistant, Apple Siri
