Supercapacitor Module 16V 1.6F 6S
SKU:LA122075
New
Image is for illustrative purposes only
The LA122075 is a high-performance supercapacitor module featuring a 16 V nominal voltage and 1.6 F capacitance. This module is specifically engineered for applications demanding rapid, high-burst energy delivery over short durations.
Key Features
- Nominal Specifications: 16 V nominal voltage and 1.6 F capacitance.

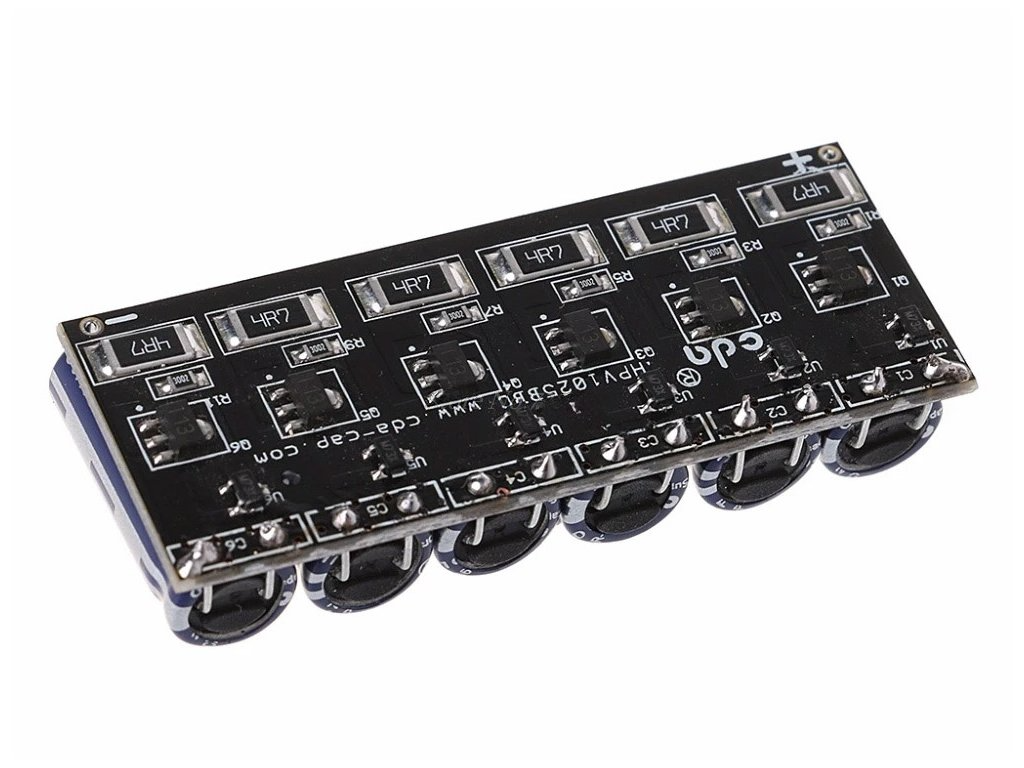

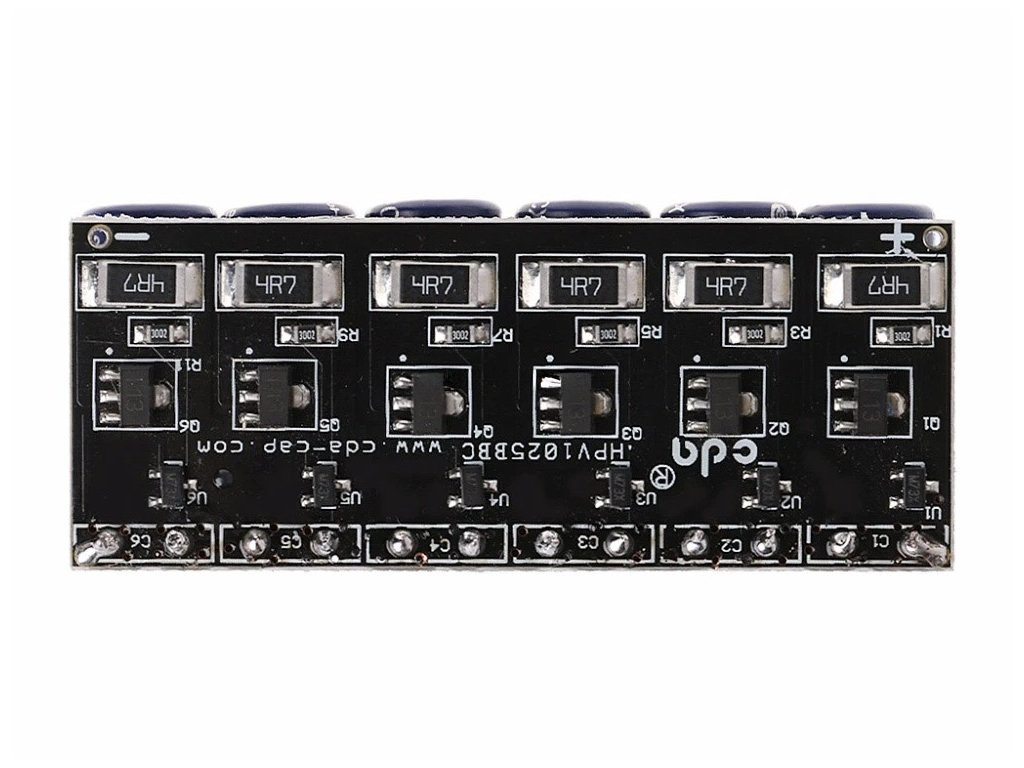

- Internal Structure: Constructed in a 6S configuration, utilizing six supercapacitors connected in series.
- Integrated Protection: Equipped with a built-in protection board to prevent damage from overcharge, over-discharge, overcurrent, and short circuits.
- Performance Focus: Optimized for quick energy release and buffering.
Applications
This module is ideal for use in systems requiring instantaneous power delivery and voltage stability. Typical applications include providing backup power, stabilizing voltage fluctuations, and serving as a buffer element for DC motors.
Key Features
- Nominal Specifications: 16 V nominal voltage and 1.6 F capacitance.
- Internal Structure: Constructed in a 6S configuration, utilizing six supercapacitors connected in series.
- Integrated Protection: Equipped with a built-in protection board to prevent damage from overcharge, over-discharge, overcurrent, and short circuits.
- Performance Focus: Optimized for quick energy release and buffering.
Applications
This module is ideal for use in systems requiring instantaneous power delivery and voltage stability. Typical applications include providing backup power, stabilizing voltage fluctuations, and serving as a buffer element for DC motors.
Configuration: 6S (6 × 2.7V)
Dimensions: approx. 65 × 26 × 12 mm
Lifespan: > 500,000 charging cycles
Maximum Voltage: 16.2 V
Nominal Capacitance: 1.6 F
Operating Temperature Range: -40 °C to +65 °C
Dimensions: approx. 65 × 26 × 12 mm
Lifespan: > 500,000 charging cycles
Maximum Voltage: 16.2 V
Nominal Capacitance: 1.6 F
Operating Temperature Range: -40 °C to +65 °C
-
OKY35538.50 €Customer price8.08 €-5%
