Switch: push-button; Pos: 2; SPST; 20A/14VDC; red; Illumin:LED
SKU:PB-1B-DC-2-RIL
Image is for illustrative purposes only

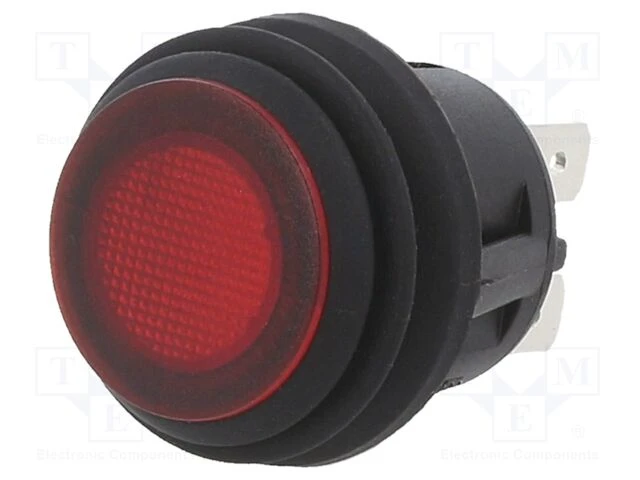

A standard illuminated panel mount push button switch, model PB-1B-DC-2-RIL, designed for reliable operation in various DC applications. It features IP65 protection against dust and water ingress. Key Features
- Contact Configuration: SPST-NO (Normally Open)
- Switch Function: Momentary (Off-Mom)
- Electrical Rating: Rated up to 20A at 14VDC
- Actuator: Red, illuminated
- Illumination: Red LED, operates at 12VDC nominal
- Connection: 0.187" (4.7mm) Quick Connect Terminals
- Mounting: Designed for a 20.20mm round panel cutout
- Protection Rating: IP65, providing dust and water resistance
Applications
Suitable for various DC applications requiring a reliable illuminated momentary push button switch.
- Contact Configuration: SPST-NO (Normally Open)
- Switch Function: Momentary (Off-Mom)
- Electrical Rating: Rated up to 20A at 14VDC
- Actuator: Red, illuminated
- Illumination: Red LED, operates at 12VDC nominal
- Connection: 0.187" (4.7mm) Quick Connect Terminals
- Mounting: Designed for a 20.20mm round panel cutout
- Protection Rating: IP65, providing dust and water resistance
Applications
Suitable for various DC applications requiring a reliable illuminated momentary push button switch.
Actuator/Cap Color: Red
Contact Configuration: SPST-NO
Contact Resistance: 50 mOhm Max.
Dimensions: 1.30 in H X 0.91 in W X 0.91 in L
Electrical Life: 6,000 Cycles
Illumination Type, Color: LED, Red
Illumination Voltage: 12 VDC
Ingress Protection: IP65 - Dust Tight, Water Resistant
Mechanical Life: 10,000 Cycles
Number of Positions: 2
Operating Temperature: -25°C ~ 85°C
Panel Cutout Dimensions: Circular - 20.20mm Dia
Rated Current: 20A (DC)
Rated Voltage: 14 VDC
Switch Function: Off-Mom
Switch Type: Push-button
Termination Type: Quick Connect - 0.187" (4.7mm)
Weight: 0.015 lbs
Contact Configuration: SPST-NO
Contact Resistance: 50 mOhm Max.
Dimensions: 1.30 in H X 0.91 in W X 0.91 in L
Electrical Life: 6,000 Cycles
Illumination Type, Color: LED, Red
Illumination Voltage: 12 VDC
Ingress Protection: IP65 - Dust Tight, Water Resistant
Mechanical Life: 10,000 Cycles
Number of Positions: 2
Operating Temperature: -25°C ~ 85°C
Panel Cutout Dimensions: Circular - 20.20mm Dia
Rated Current: 20A (DC)
Rated Voltage: 14 VDC
Switch Function: Off-Mom
Switch Type: Push-button
Termination Type: Quick Connect - 0.187" (4.7mm)
Weight: 0.015 lbs
