SKU:1661.0101

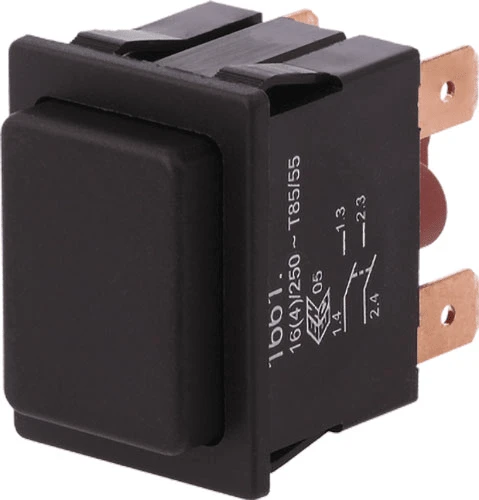

Image is for illustrative purposes only
Must nupplüliti, 2 asendit, DPST-NO, 16A/250VAC, IP40, pistikühendused 6,3x0,8 mm.
Type of switch: push-button
Number of positions: 2
Contacts configuration: DPST-NO
AC contacts rating @R (at resistive load): 16A / 250V AC
Switching method: OFF-(ON)
IP rating: IP40
Leads: connectors 6.3x0.8mm
Operating temperature: -20...85°C
Max. contact resistance: 100mΩ
Mounting hole diameter: 30.4x22.2mm
Body colour: black
Contact plating: silver plated
Actuator colour: black
Panel thickness: max. 3mm
Body dimensions: 33x25x22.5mm
Button shape: rectangular
Number of positions: 2
Contacts configuration: DPST-NO
AC contacts rating @R (at resistive load): 16A / 250V AC
Switching method: OFF-(ON)
IP rating: IP40
Leads: connectors 6.3x0.8mm
Operating temperature: -20...85°C
Max. contact resistance: 100mΩ
Mounting hole diameter: 30.4x22.2mm
Body colour: black
Contact plating: silver plated
Actuator colour: black
Panel thickness: max. 3mm
Body dimensions: 33x25x22.5mm
Button shape: rectangular
