SKU:HM-TJ33-10RF-MINI3
Manufacturer:
Hikmicro
Image is for illustrative purposes only
Hikmicro Mini3 is a truly compact yet powerful thermal camera for your smartphone. It allows you to measure skin surface temperature, inspect electrical equipment, find insulation problems, and even see objects in the dark.
Technical data:
Infrared resolution 384 x 288 (110,592 pixels)
Field of view 26° × 19°
Temperature range -20 to + 650 °C
Operating range from 5 °C to 100 °C covers most daily needs

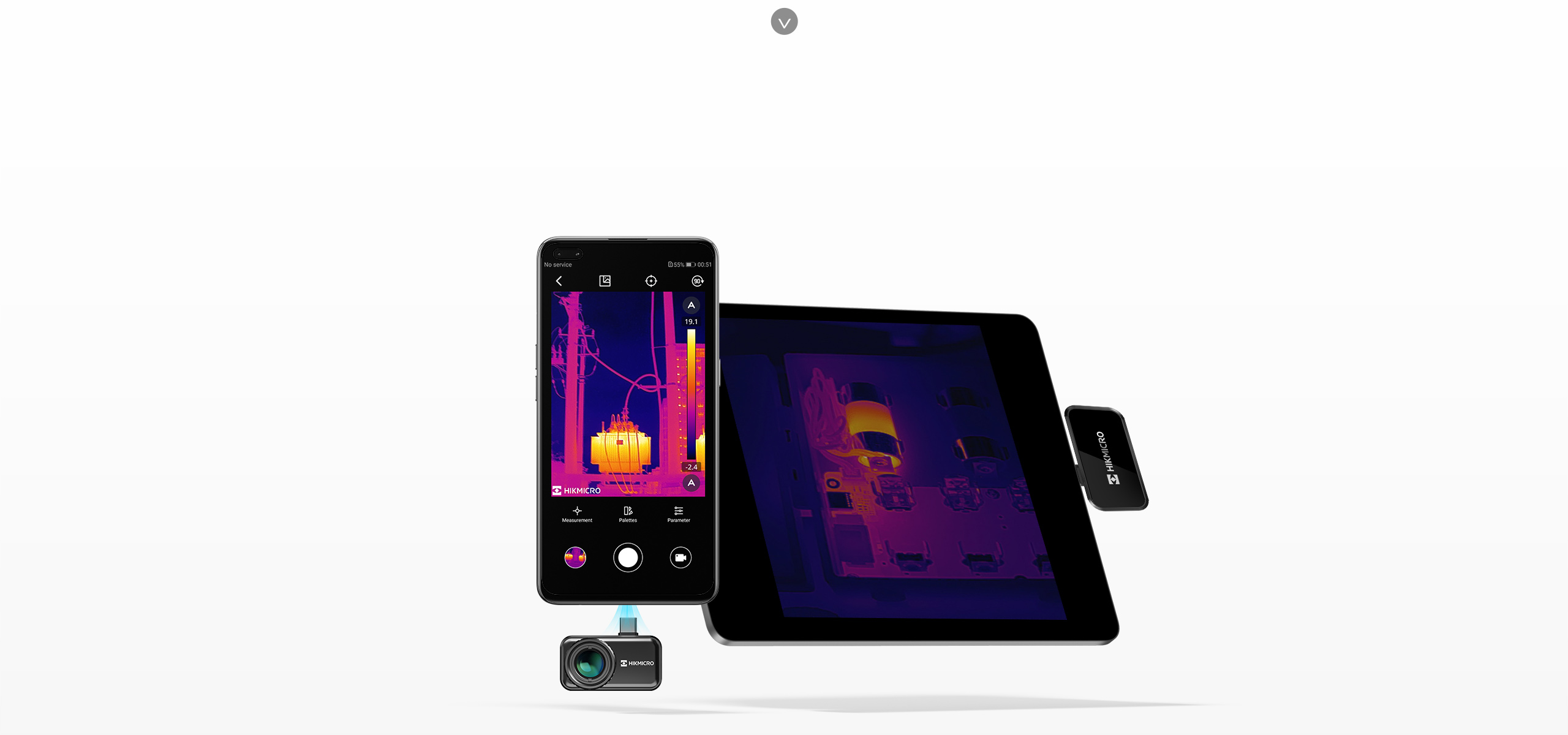

Compatible with the free HIKMICRO Viewer app, which offers a user-friendly interface and the ability to control the camera.
Main uses:
Measurement of skin surface temperature

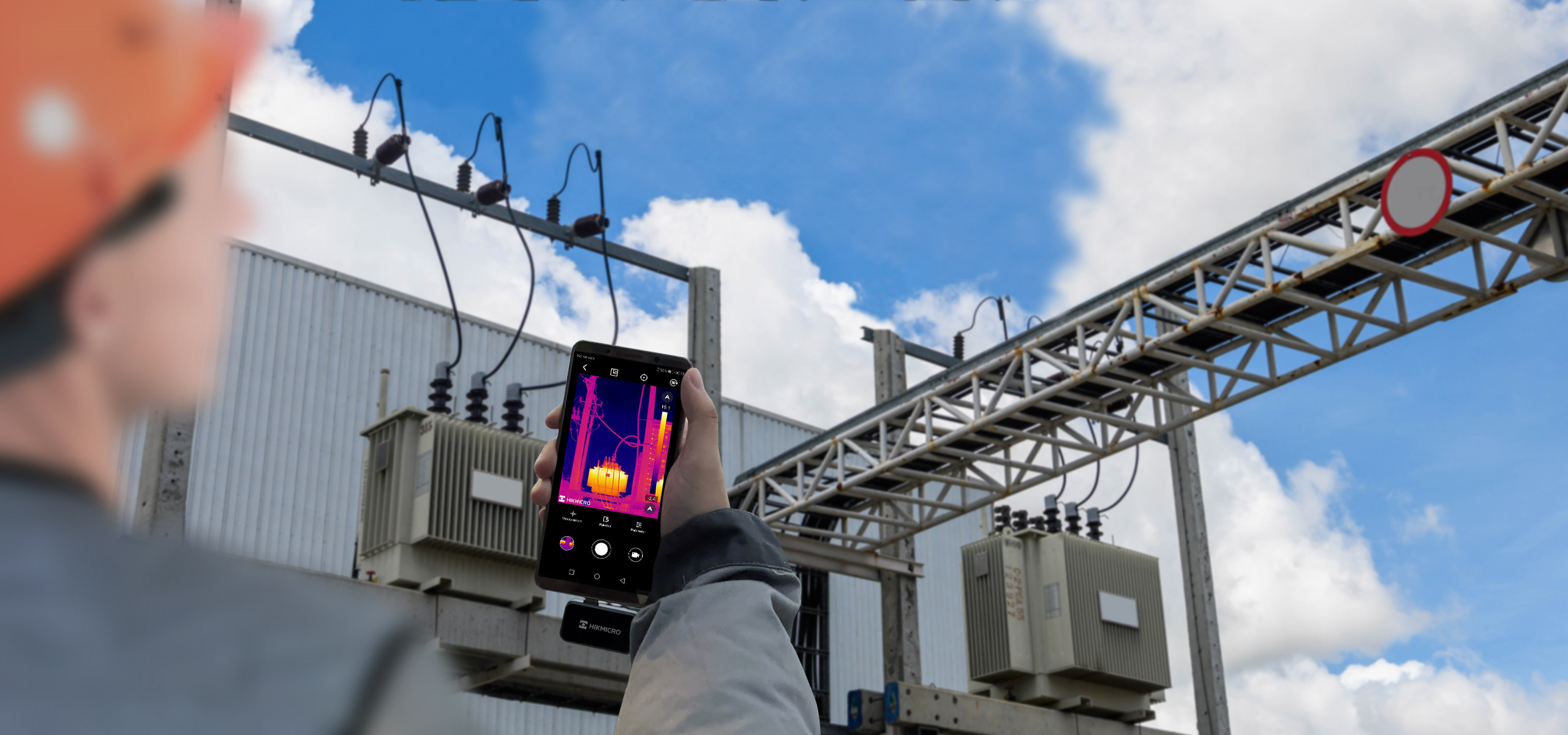

Inspection of electrical equipment
Identifying heating problems
Seeing objects in the dark
Hikmicro Mini3 is a compact yet powerful tool that makes thermography easy and accessible for everyone. Its portable design and smartphone compatibility make it an ideal choice for both professionals and hobbyists.
Technical data:
Infrared resolution 384 x 288 (110,592 pixels)
Field of view 26° × 19°
Temperature range -20 to + 650 °C
Operating range from 5 °C to 100 °C covers most daily needs
Compatible with the free HIKMICRO Viewer app, which offers a user-friendly interface and the ability to control the camera.
Main uses:
Measurement of skin surface temperature
Inspection of electrical equipment
Identifying heating problems
Seeing objects in the dark
Hikmicro Mini3 is a compact yet powerful tool that makes thermography easy and accessible for everyone. Its portable design and smartphone compatibility make it an ideal choice for both professionals and hobbyists.
IR resolution: 384×288
NETD: ≤35 mK (@ 25 °C, F#=1.0)
Frame rate: 25Hz/50Hz (to enable 50Hz you need 8GB of RAM or more on mobile devices)
Detector Pitch: 12μm
Spectral range: 7.5 to 14 μm
Focal length: 10mm
F-number: F1.0
Field of view (FOV): 26° × 19°
Focus mode: Manual focus

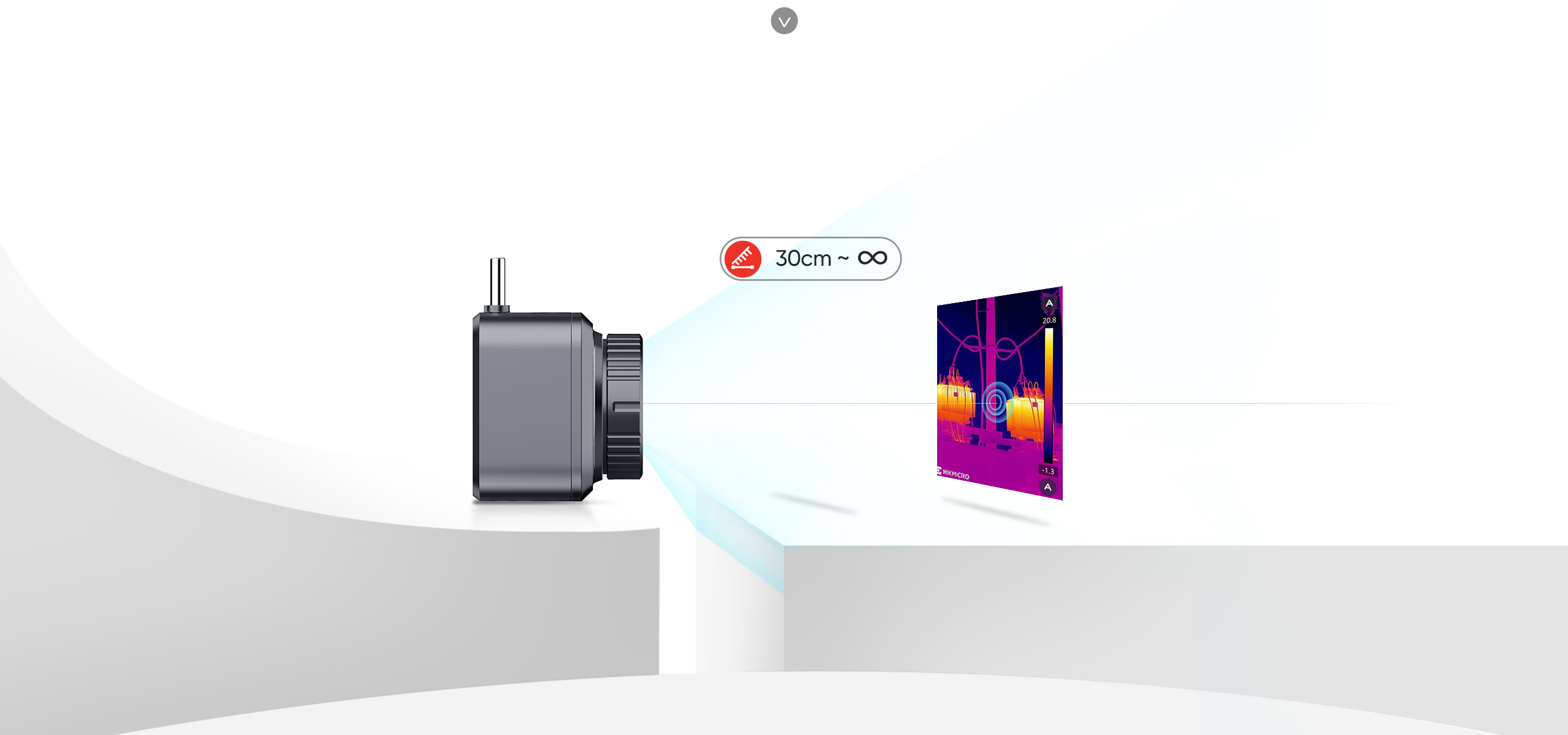

Minimum focus distance: 0.3 m
Color Palettes: White Hot, Black Hot, Rainbow, Iron Rainbow, Sepia, Colorful, Ice Fire, Rain, Hot, Green Hot, Navy Blue, Combo
Object temperature range: -20°C to 650°C
Accuracy: Max (±2°C, ±2%), at an ambient temperature of 15°C to 35°C and an object temperature above 0°C
Measuring tools: Center point, hot spot, cold spot. User definable: 3 points and 3 rectangles.
Level and Range Mode: Auto/Manual
Power consumption: 550 mW
Protection level: IP40
Operating temperature range: -10°C to 50°C
Storage temperature range: -20°C to 60°C
Weight: approx. 45 g

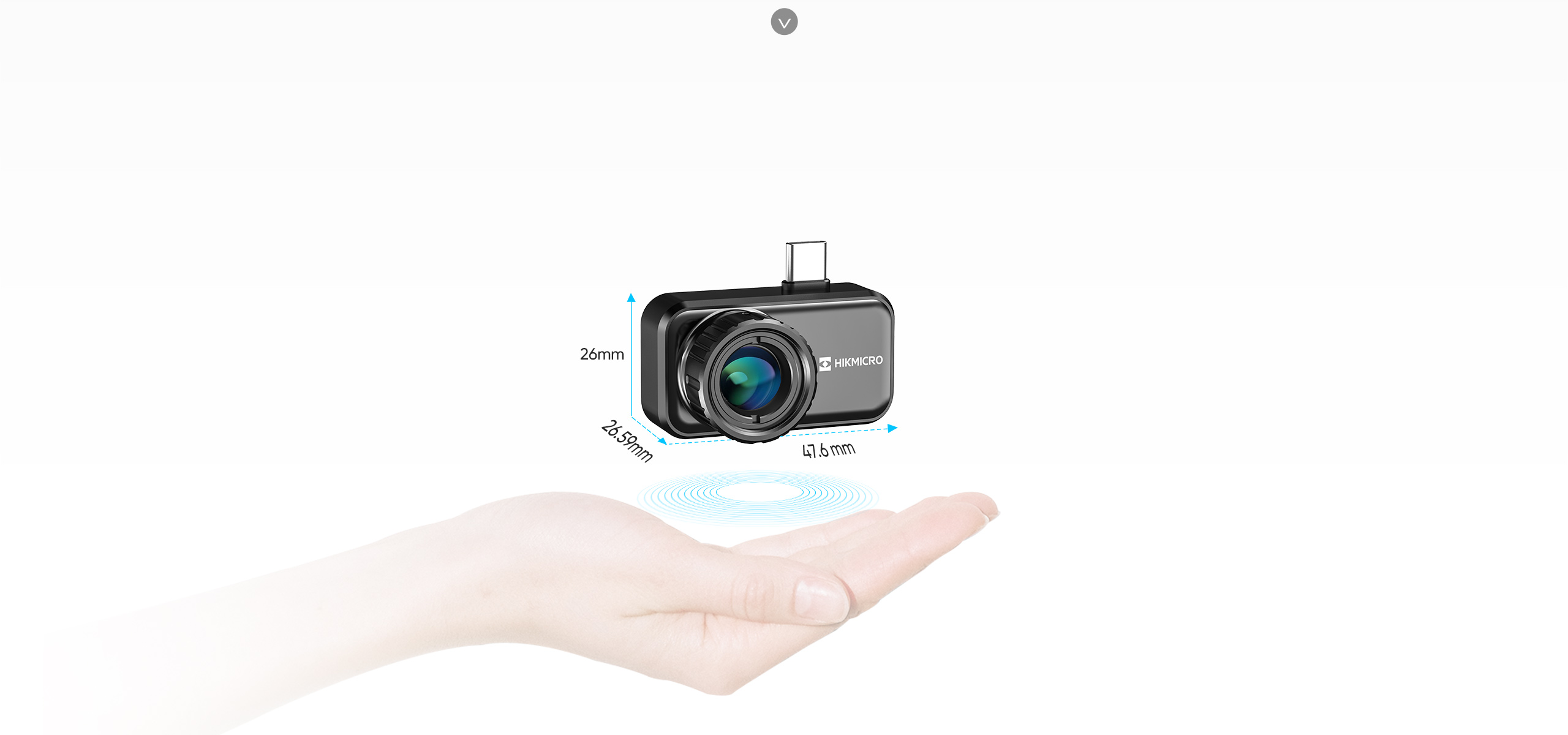

Dimensions: 47.6 × 26 × 26.59 mm
Interface: USB-C
NETD: ≤35 mK (@ 25 °C, F#=1.0)
Frame rate: 25Hz/50Hz (to enable 50Hz you need 8GB of RAM or more on mobile devices)
Detector Pitch: 12μm
Spectral range: 7.5 to 14 μm
Focal length: 10mm
F-number: F1.0
Field of view (FOV): 26° × 19°
Focus mode: Manual focus
Minimum focus distance: 0.3 m
Color Palettes: White Hot, Black Hot, Rainbow, Iron Rainbow, Sepia, Colorful, Ice Fire, Rain, Hot, Green Hot, Navy Blue, Combo
Object temperature range: -20°C to 650°C
Accuracy: Max (±2°C, ±2%), at an ambient temperature of 15°C to 35°C and an object temperature above 0°C
Measuring tools: Center point, hot spot, cold spot. User definable: 3 points and 3 rectangles.
Level and Range Mode: Auto/Manual
Power consumption: 550 mW
Protection level: IP40
Operating temperature range: -10°C to 50°C
Storage temperature range: -20°C to 60°C
Weight: approx. 45 g
Dimensions: 47.6 × 26 × 26.59 mm
Interface: USB-C
