Thermal Camera Hikmicro MiniE 96x96 25Hz Android/IOS
SKU:HM-TJ10-1ARF-MINIE
Manufacturer:Hikmicro
New

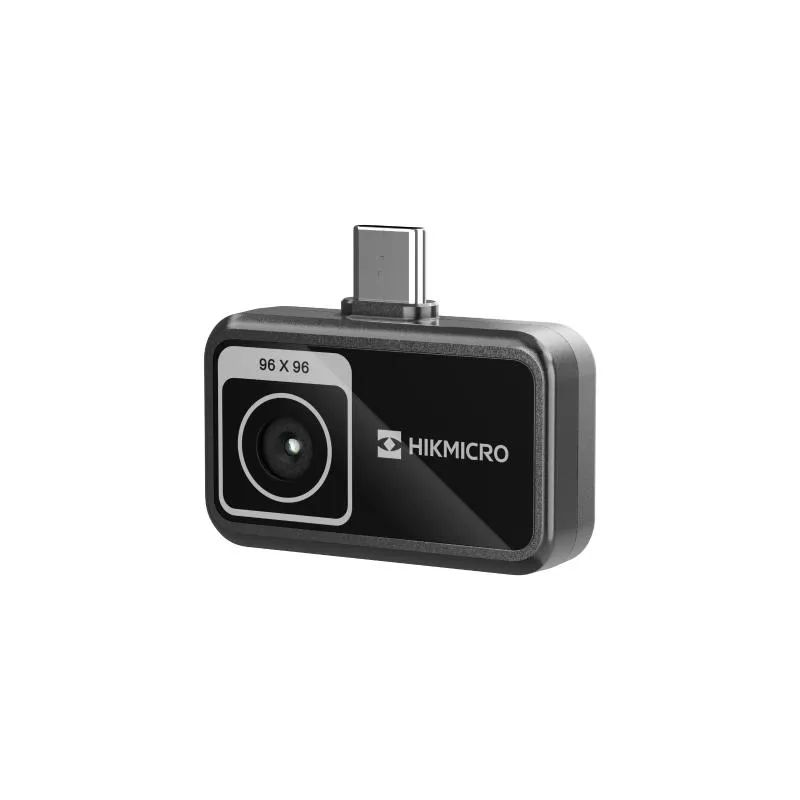

Image is for illustrative purposes only
The HIKMICRO MiniE thermal camera for smartphones is a compact solution for home inspection and finding thermal faults. SKU: HM-TJ10-1ARF-MINIE
Key Features
- Visualizes thermal patterns and measures temperature at 9216 points.
- Features a 96x96 pixel IR detector.
- Utilizes SuperIR technology for enhanced image clarity, reduced noise, and improved detail.
- Provides smooth thermal imaging at 25 Hz.
- Measures temperatures from -20°C to 400°C.
- Offers high temperature measurement accuracy.
- Compatible with both iOS and Android devices.
- Connects via USB-C or Lightning (adapter included).
- Compact and lightweight design (approx. 20g).
- Powered directly by the connected smartphone, no separate battery needed.
- Supports the HIKMICRO Viewer app for settings, data analysis, and reporting.
Applications
Suitable for homeowners, DIY enthusiasts, automotive diagnostics, electrical engineering, and HVAC maintenance.
Key Features
- Visualizes thermal patterns and measures temperature at 9216 points.
- Features a 96x96 pixel IR detector.
- Utilizes SuperIR technology for enhanced image clarity, reduced noise, and improved detail.
- Provides smooth thermal imaging at 25 Hz.
- Measures temperatures from -20°C to 400°C.
- Offers high temperature measurement accuracy.
- Compatible with both iOS and Android devices.
- Connects via USB-C or Lightning (adapter included).
- Compact and lightweight design (approx. 20g).
- Powered directly by the connected smartphone, no separate battery needed.
- Supports the HIKMICRO Viewer app for settings, data analysis, and reporting.
Applications
Suitable for homeowners, DIY enthusiasts, automotive diagnostics, electrical engineering, and HVAC maintenance.
Accuracy: ±2°C (±3.6°F) / ± 2 % (whichever is greater), for ambient temperature 15°C to 35°C and object temperature above 0°C
Color Palettes: White Hot, Black Hot, Rainbow, Ironbow, Sepia, Color, Ice Fire, Rain, Red Hot, Green Hot, Dark Blue, Combined, Custom Palette
Device Compatibility: iOS (version 14 and later), Android (version 7 and later) smartphones and tablets, or Windows devices
Dimensions: 41.56 × 34.03 × 10.79 mm
Drop Test Height: 1 m
Field of View (FOV): 50° × 50° (H × V)
Focus Mode: Focus Free
Frame Rate: 25 Hz
Image Modes: Thermal, PIP
Interface: USB-C (Android, iOS), Lightning (iOS, adapter included)
Measurement Tools: Center Spot, Hot Spot, Cold Spot. User-definable: 3 spots, 3 rectangles and 1 line
Measuring Temperature Range: -20°C to 400°C (-4°F to 752°F)
Minimum Focus Distance: 0.1 m
NETD: < 50 mK (@ 25 °C, F#=1.0)
Operating Temperature: -10°C to 50°C
Power Consumption: 310 mW
Protection Level: IP40
Software Compatibility: HIKMICRO Viewer app for iOS and Android
Storage Temperature: -20°C to 60°C
Thermal Resolution: 96 × 96 (9216 pixels)
Weight: Approx. 20 g
Color Palettes: White Hot, Black Hot, Rainbow, Ironbow, Sepia, Color, Ice Fire, Rain, Red Hot, Green Hot, Dark Blue, Combined, Custom Palette
Device Compatibility: iOS (version 14 and later), Android (version 7 and later) smartphones and tablets, or Windows devices
Dimensions: 41.56 × 34.03 × 10.79 mm
Drop Test Height: 1 m
Field of View (FOV): 50° × 50° (H × V)
Focus Mode: Focus Free
Frame Rate: 25 Hz
Image Modes: Thermal, PIP
Interface: USB-C (Android, iOS), Lightning (iOS, adapter included)
Measurement Tools: Center Spot, Hot Spot, Cold Spot. User-definable: 3 spots, 3 rectangles and 1 line
Measuring Temperature Range: -20°C to 400°C (-4°F to 752°F)
Minimum Focus Distance: 0.1 m
NETD: < 50 mK (@ 25 °C, F#=1.0)
Operating Temperature: -10°C to 50°C
Power Consumption: 310 mW
Protection Level: IP40
Software Compatibility: HIKMICRO Viewer app for iOS and Android
Storage Temperature: -20°C to 60°C
Thermal Resolution: 96 × 96 (9216 pixels)
Weight: Approx. 20 g
-
