SKU:UTI740MS
Manufacturer:
Uni-T
New

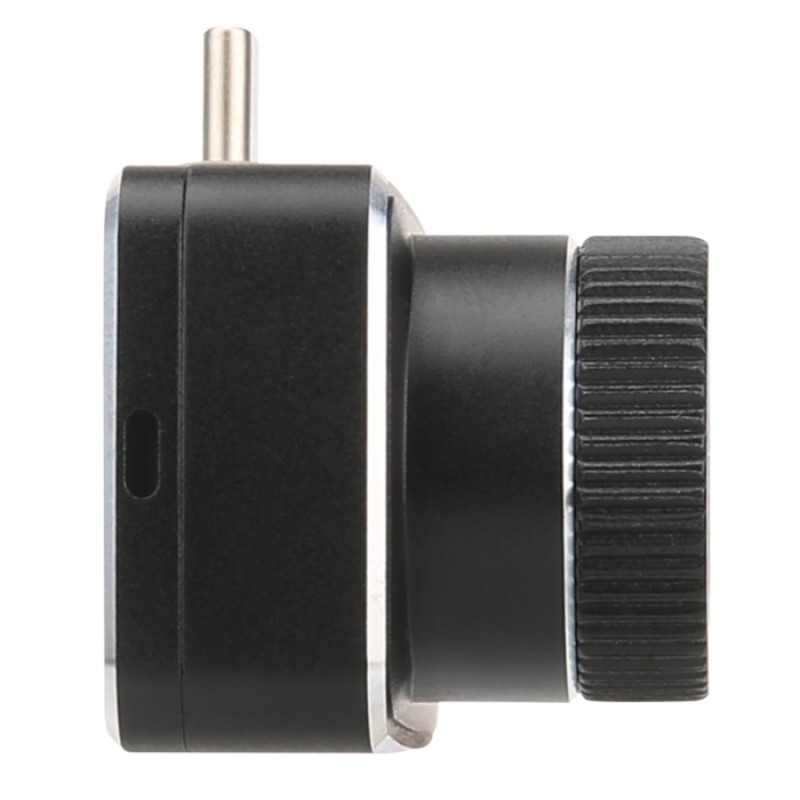

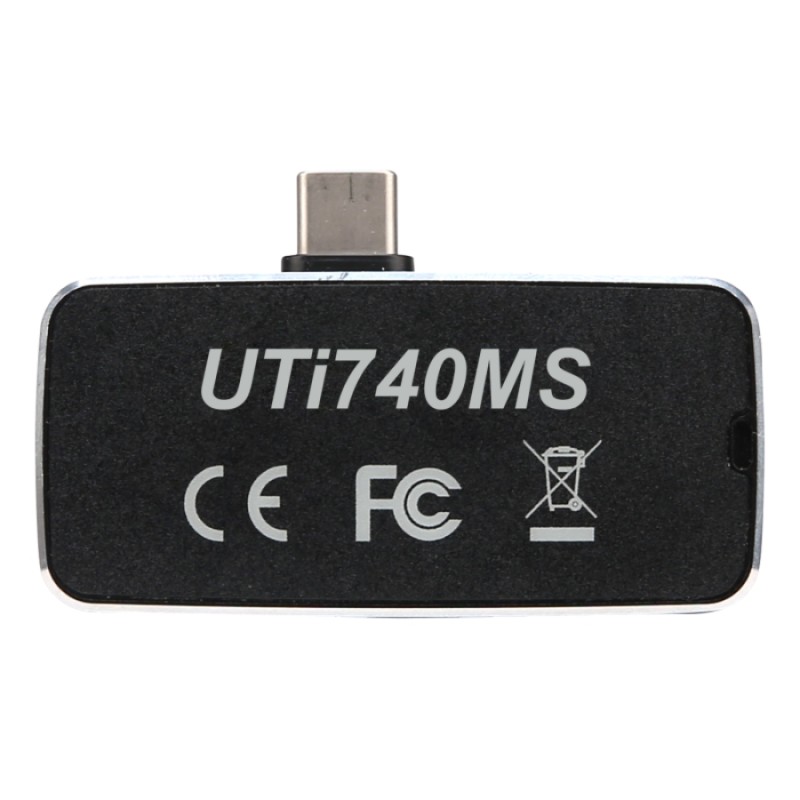

Image is for illustrative purposes only
Uni-T UTi740MS is a high-resolution thermal imaging module designed for Android and iOS mobile devices with a USB-C interface. The device features a 400×300 pixel IR sensor, which can be upgraded to 800×600 using Super Resolution technology. It is a lightweight, battery-free solution that operates via the Thermal Mobile application.
The camera offers a wide temperature measurement range from -20°C to 550°C, making it suitable for building inspections, industrial maintenance, and DIY projects. Manual focus control allows for sharp imaging at various distances, while a ≤25Hz frame rate ensures smooth video output. The device supports multiple image modes including thermal, fusion, and PIP (Picture-in-Picture), along with seven different color palettes for detailed analysis. It is compatible with Android 7.0, iOS 15, and later versions.
The camera offers a wide temperature measurement range from -20°C to 550°C, making it suitable for building inspections, industrial maintenance, and DIY projects. Manual focus control allows for sharp imaging at various distances, while a ≤25Hz frame rate ensures smooth video output. The device supports multiple image modes including thermal, fusion, and PIP (Picture-in-Picture), along with seven different color palettes for detailed analysis. It is compatible with Android 7.0, iOS 15, and later versions.
IR resolution: 400×300 (upgrades to 800×600 with Super Resolution)
Spectral range: 8~14µm
Pixel size: 12µm
Frame rate: ≤25Hz
Thermal sensitivity (NETD): ≤45mK @25℃
Focus: Manual Focus
Lens focal length: 9.5mm
Field of view (FOV): 29°(H) × 21.5°(V)
Measurement modes: Industrial & EST screening
Temperature measurement range: -20℃~550℃
Accuracy: Industrial: ±2° or ±2% (-10℃~550℃); EST: ±0.5° (20℃~50℃)
Color palettes: Ironbow, White Hot, Black Hot, Red Hot, Lava, Rainbow, Rainbow HC
Image modes: Thermal, Fusion, PIP
On screen analyzer: 5 Points / 1 Line / 3 Rectangles / 3 Circles
Isotherm: Auto / Below / Above / Section / Manual
Hi/Lo temperature alarm: LCD animation & Buzzer
Hi/Lo temperature tracking: √
Video recording: √
USB: Type-C
Image storage format: JPG
Video storage format: MP4
Certificates: CE, FCC, RoHS
Languages: ZH, EN, FR, DE, IT, ES, SV, PL, CZ
Weight: 46g
Dimension: 58mm × 27mm × 28.6mm
Spectral range: 8~14µm
Pixel size: 12µm
Frame rate: ≤25Hz
Thermal sensitivity (NETD): ≤45mK @25℃
Focus: Manual Focus
Lens focal length: 9.5mm
Field of view (FOV): 29°(H) × 21.5°(V)
Measurement modes: Industrial & EST screening
Temperature measurement range: -20℃~550℃
Accuracy: Industrial: ±2° or ±2% (-10℃~550℃); EST: ±0.5° (20℃~50℃)
Color palettes: Ironbow, White Hot, Black Hot, Red Hot, Lava, Rainbow, Rainbow HC
Image modes: Thermal, Fusion, PIP
On screen analyzer: 5 Points / 1 Line / 3 Rectangles / 3 Circles
Isotherm: Auto / Below / Above / Section / Manual
Hi/Lo temperature alarm: LCD animation & Buzzer
Hi/Lo temperature tracking: √
Video recording: √
USB: Type-C
Image storage format: JPG
Video storage format: MP4
Certificates: CE, FCC, RoHS
Languages: ZH, EN, FR, DE, IT, ES, SV, PL, CZ
Weight: 46g
Dimension: 58mm × 27mm × 28.6mm
-
