Thermal Camera USB-C 256*192pix -20...+550C WiFi App
SKU:UTI720T
Manufacturer:Uni-T
New
Image is for illustrative purposes only
The UTi720T is a professional-grade portable thermal camera featuring an ergonomic design that fits perfectly in the palm of your hand, enabling fast and efficient detection of potential issues in building diagnostics, automotive maintenance, and electrical equipment inspections. With its high-performance 256x192 pixel infrared detector and a large 3.5-inch TFT touch display, it ensures exceptional image clarity and detail for accurate thermal analysis.
This device is equipped with advanced T-Mix auto-adaptive dual-light image fusion technology, allowing users to blend thermal and visual images for better context. The inclusion of a 2MP digital camera and multiple image modes—including Fusion and Picture-in-Picture—provides versatility for various industrial scenarios. Efficiency is further enhanced by Wi-Fi connectivity via NFC, supporting live streaming and remote control through a dedicated mobile app and PC software.
Designed for the rigors of the field, the UTi720T boasts an IP54 protection rating and can withstand drops of up to 1 meter. It features a wide temperature measurement range from -20℃ to 550℃, a continuous 1-8x digital zoom, and 12GB of internal storage for capturing high-quality thermal images and videos. With its long-lasting rechargeable Li-ion battery and smart measurement functions, it is an essential tool for professionals seeking precision and reliability.
This device is equipped with advanced T-Mix auto-adaptive dual-light image fusion technology, allowing users to blend thermal and visual images for better context. The inclusion of a 2MP digital camera and multiple image modes—including Fusion and Picture-in-Picture—provides versatility for various industrial scenarios. Efficiency is further enhanced by Wi-Fi connectivity via NFC, supporting live streaming and remote control through a dedicated mobile app and PC software.
Designed for the rigors of the field, the UTi720T boasts an IP54 protection rating and can withstand drops of up to 1 meter. It features a wide temperature measurement range from -20℃ to 550℃, a continuous 1-8x digital zoom, and 12GB of internal storage for capturing high-quality thermal images and videos. With its long-lasting rechargeable Li-ion battery and smart measurement functions, it is an essential tool for professionals seeking precision and reliability.
Display: 3.5” TFT Touch (640×480)
IR resolution: 256×192 pixels
Spectral range: 8~14µm
Pixel size: 12µm
Frame rate: ≤25Hz
Thermal sensitivity (NETD): ≤50mK
Focus: Focus Free
Field of view (FOV): 56°(H) × 42°(V)
Spatial resolution (IFOV): 3.75mrad
Temperature measurement range: -20℃~550℃
Accuracy: ±2℃ or ±2% whichever is greater
Color palettes: White Hot, Black Hot, Red Hot, Ironbow, Lava, Rainbow, Rainbow HC
Image modes: Thermal, Visual image, Fusion (T-Mix), PIP
On screen analyzer: 5 Points/1 Line/ 3 Rectangles/ 3 Circles
Isotherm: Auto/Manual/Above/Below/Section/Ratio
Hi/Lo temperature alarm: LCD animation & LED flashlight
Hi/Lo temperature tracking: Yes
Digital camera resolution: 2MP
Digital zoom: 1.0~8× continuous
Video recording: Yes
Wi-Fi / Wi-Fi live streaming: Yes
Bluetooth: Yes
NFC: Yes (for Wi-Fi connection)
LED lighting: Yes
Analysis software: PC + APP
Battery: 1800mAh rechargeable Li-ion battery
Operating time: ≥2.2 hours (with Wi-Fi off)

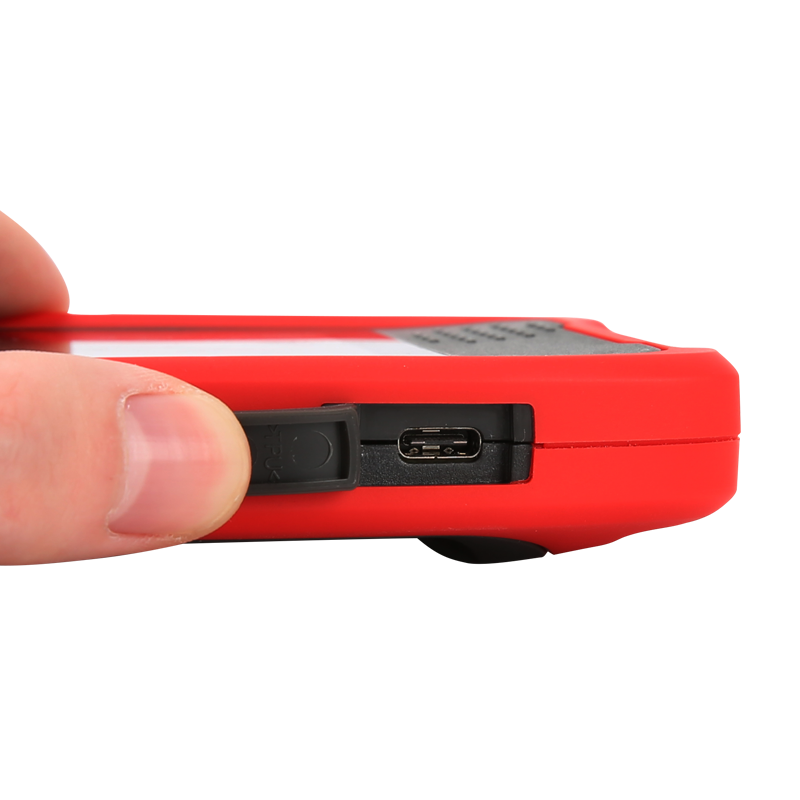

USB: Type-C
Storage: 12GB Internal
Image storage format: JPG
Video storage format: .avi
Protection: IP54 & 1m drop proof
Certificates: CE, FCC, RoHS
Weight: 213g
Dimension: 133.05mm x 85.4mm x 24.1mm
IR resolution: 256×192 pixels
Spectral range: 8~14µm
Pixel size: 12µm
Frame rate: ≤25Hz
Thermal sensitivity (NETD): ≤50mK
Focus: Focus Free
Field of view (FOV): 56°(H) × 42°(V)
Spatial resolution (IFOV): 3.75mrad
Temperature measurement range: -20℃~550℃
Accuracy: ±2℃ or ±2% whichever is greater
Color palettes: White Hot, Black Hot, Red Hot, Ironbow, Lava, Rainbow, Rainbow HC
Image modes: Thermal, Visual image, Fusion (T-Mix), PIP
On screen analyzer: 5 Points/1 Line/ 3 Rectangles/ 3 Circles
Isotherm: Auto/Manual/Above/Below/Section/Ratio
Hi/Lo temperature alarm: LCD animation & LED flashlight
Hi/Lo temperature tracking: Yes
Digital camera resolution: 2MP
Digital zoom: 1.0~8× continuous
Video recording: Yes
Wi-Fi / Wi-Fi live streaming: Yes
Bluetooth: Yes
NFC: Yes (for Wi-Fi connection)
LED lighting: Yes
Analysis software: PC + APP
Battery: 1800mAh rechargeable Li-ion battery
Operating time: ≥2.2 hours (with Wi-Fi off)
USB: Type-C
Storage: 12GB Internal
Image storage format: JPG
Video storage format: .avi
Protection: IP54 & 1m drop proof
Certificates: CE, FCC, RoHS
Weight: 213g
Dimension: 133.05mm x 85.4mm x 24.1mm
-
