SKU:PNI-MAB300-DEF
New
Image is for illustrative purposes only
The PNI MAB300 automatic gate opener set is an ideal solution for those seeking a reliable and convenient way to manage property access. Featuring two robust 40W motors, this system is capable of handling gate leaves up to 2.5 meters in length and weighing up to 200 kg each.
Designed with durability in mind, the motors boast an IP55 rating, ensuring excellent weather resistance even in harsh conditions. Safety is prioritized through integrated obstacle detection, which halts movement to prevent accidents. The control system is highly flexible, allowing for adjustable auto-closing, sequential leaf movement, or partial opening for pedestrian use. For off-grid or backup power needs, the kit can be easily integrated with solar power systems or 24V batteries.
Designed with durability in mind, the motors boast an IP55 rating, ensuring excellent weather resistance even in harsh conditions. Safety is prioritized through integrated obstacle detection, which halts movement to prevent accidents. The control system is highly flexible, allowing for adjustable auto-closing, sequential leaf movement, or partial opening for pedestrian use. For off-grid or backup power needs, the kit can be easily integrated with solar power systems or 24V batteries.
Motor voltage: 24VDC
Motor power: 40W (x2 motors)
Motor rotation speed: 250 rpm
Maximum gate weight: 200 kg per leaf
Maximum gate leaf length: 2.5 m per leaf (up to 2 leaves)
Piston extension speed: 1.6 cm/sec
Water protection class: IP55
Maximum piston stroke: 300 mm
Continuous working time: 5 min
Working temperature: -40°C - +50°C

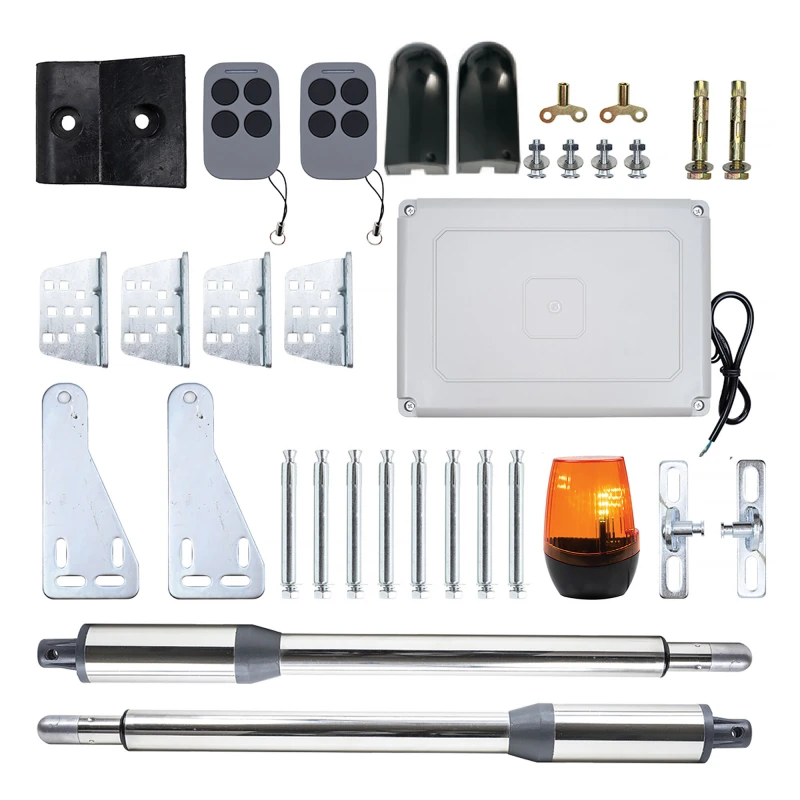

In the box: Control unit
2 x Piston motors (max stroke 300mm)
2 x Remote controls
2 x Photocells
Signal lamp
Rubber stop
Mounting accessories kit
Motor power: 40W (x2 motors)
Motor rotation speed: 250 rpm
Maximum gate weight: 200 kg per leaf
Maximum gate leaf length: 2.5 m per leaf (up to 2 leaves)
Piston extension speed: 1.6 cm/sec
Water protection class: IP55
Maximum piston stroke: 300 mm
Continuous working time: 5 min
Working temperature: -40°C - +50°C
In the box: Control unit
2 x Piston motors (max stroke 300mm)
2 x Remote controls
2 x Photocells
Signal lamp
Rubber stop
Mounting accessories kit
-
