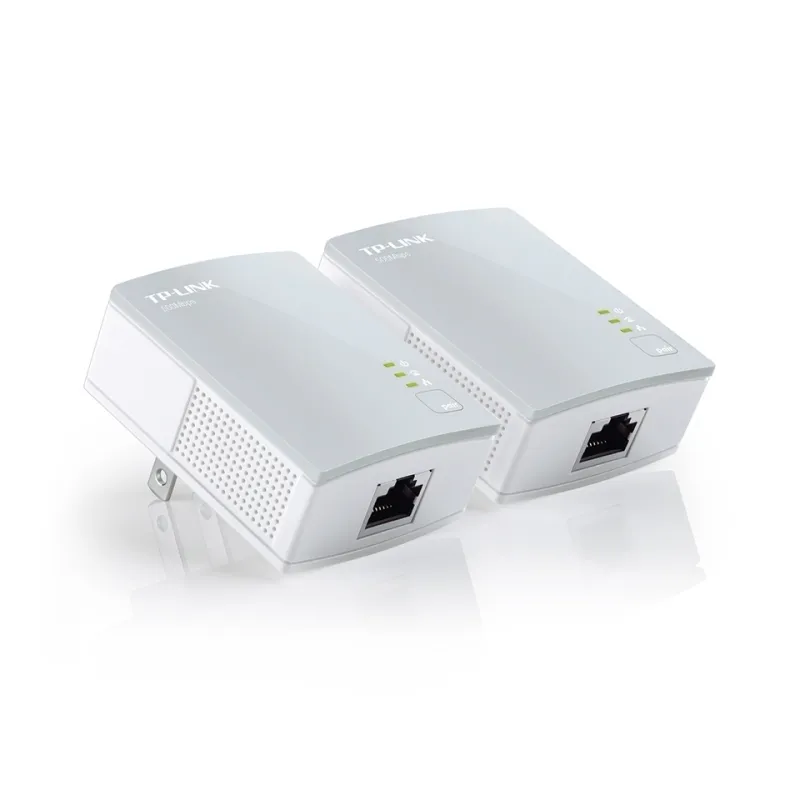

Homeplug kit TP-LINK NANO 500Mb/s
SKU:TL-PA4010KIT
Manufacturer:TP Link
Image is for illustrative purposes only

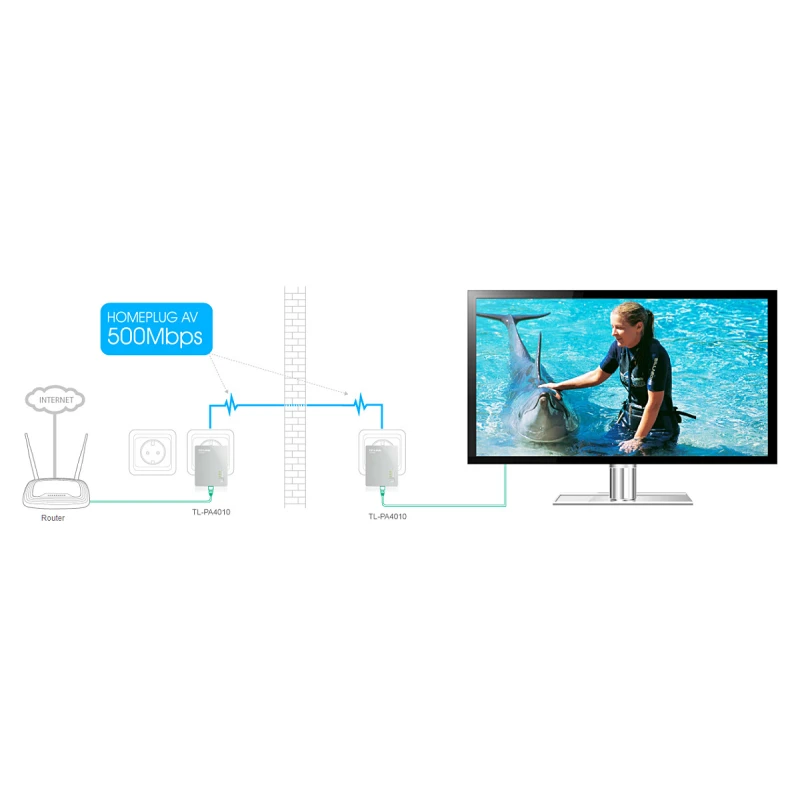

With advanced HomePlug AV600, the TL-PA4010 KIT transforms your home’s existing electrical circuit into a high-speed network.
No new wires or drilling needed and brings wired network to anywhere there is a power outlet.
Note: Powerline adapters must be deployed in sets of two or more.
Compatibility: TL-PA4010 KIT is compatible with all Routers and other powerline products.
Standard: HomePlug AV2 standard compliant.
Design: Miniature design, smaller than most powerline adapters in the market, blends discreetly in front of any power outlet.
Operation: Easy Plug and Play operation, No configuration required.
Power-Saving Mode: Patented Power-Saving Mode automatically reduces power consumption by up to 85%.
No new wires or drilling needed and brings wired network to anywhere there is a power outlet.
Note: Powerline adapters must be deployed in sets of two or more.
Compatibility: TL-PA4010 KIT is compatible with all Routers and other powerline products.
Standard: HomePlug AV2 standard compliant.
Design: Miniature design, smaller than most powerline adapters in the market, blends discreetly in front of any power outlet.
Operation: Easy Plug and Play operation, No configuration required.
Power-Saving Mode: Patented Power-Saving Mode automatically reduces power consumption by up to 85%.
Standards and Protocols: HomePlug AV2, IEEE802.3, IEEE802.3u
Interface: 1*10/100Mbps Ethernet Port
Button: Pair Button
Power Consumption: Maximum: 2.5W
Typical: 2.3W
Standby: 0.36W
LED Indicator: Power, Powerline, Ethernet
Dimensions ( W x D x H ): 2.0 x 1.1 x 2.6 in. (52 × 28.5 × 65mm)
Range: Up to 300 meters/1000 feet over existing electrical wiring
SOFTWARE FEATURES:
Modulation Technology: OFDM (PLC)
Encryption: 128-bit AES Encryption
OTHERS:
Certification: FCC, RoHS

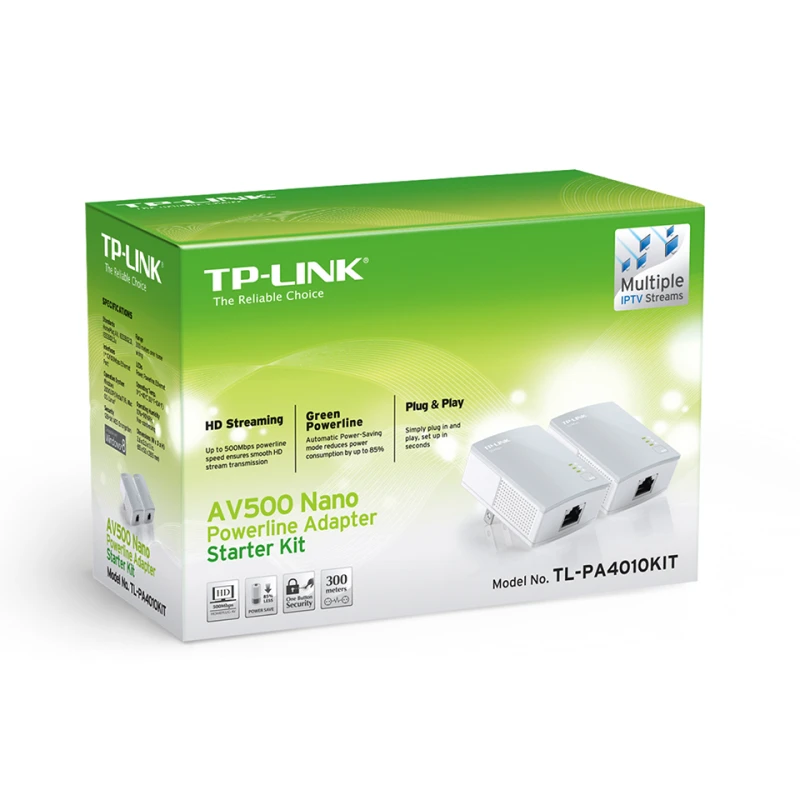

Package Contents: AV600 Powerline Adapter: 2 × TL-PA4010
2 × Ethernet Cables
Quick Installation Guide
System Requirements:
System Requirements:
Windows 2000/XP/2003/Vista, Windows 7/8/8.1/10, Mac, Linux
System Requirements for tpPLC Utility:
Windows 10/8.1/8/7/Vista/XP and Mac OS X (10.7 or later)
Environment: Operating Temperature: 0°C~40°C (32°F ~104°F)
Operating Humidity: 10%~90% non-condensing
Interface: 1*10/100Mbps Ethernet Port
Button: Pair Button
Power Consumption: Maximum: 2.5W
Typical: 2.3W
Standby: 0.36W
LED Indicator: Power, Powerline, Ethernet
Dimensions ( W x D x H ): 2.0 x 1.1 x 2.6 in. (52 × 28.5 × 65mm)
Range: Up to 300 meters/1000 feet over existing electrical wiring
SOFTWARE FEATURES:
Modulation Technology: OFDM (PLC)
Encryption: 128-bit AES Encryption
OTHERS:
Certification: FCC, RoHS
Package Contents: AV600 Powerline Adapter: 2 × TL-PA4010
2 × Ethernet Cables
Quick Installation Guide
System Requirements:
System Requirements:
Windows 2000/XP/2003/Vista, Windows 7/8/8.1/10, Mac, Linux
System Requirements for tpPLC Utility:
Windows 10/8.1/8/7/Vista/XP and Mac OS X (10.7 or later)
Environment: Operating Temperature: 0°C~40°C (32°F ~104°F)
Operating Humidity: 10%~90% non-condensing
