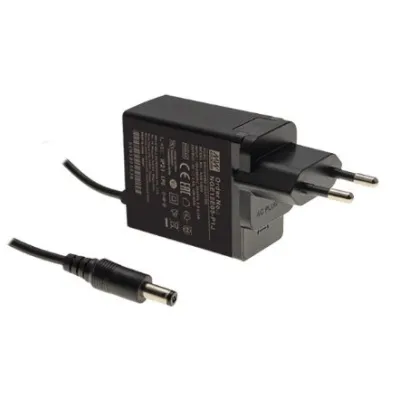

NGE12 Series
SKU:NGE12E24-P1J
Manufacturer:Mean Well
New

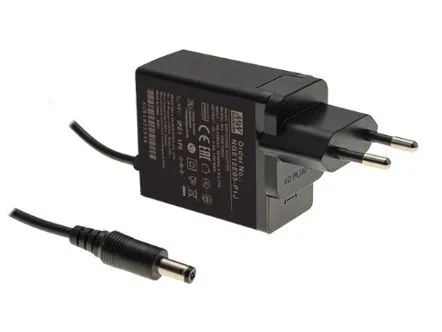

Image is for illustrative purposes only
This Mean Well NGE12 series wall-mount AC/DC adapter (NGE12E24-P1J) provides a reliable 24V DC output at 15W, utilizing a fixed European (EU) plug. Its universal input voltage range (80~264VAC) supports worldwide operation.
Key Features
- Fixed 24V DC output, 15W nominal power.
- Universal AC input range (80~264VAC).
- High energy efficiency (Level VI) with extremely low no-load power consumption (<0.075W).
- Ultra-thin housing design (28 mm width).
- Wide operating temperature range (-30°C to +70°C).
- Built-in protection against short circuit, overload, and overvoltage.
Applications and Certifications
The adapter is certified according to safety standards for ITE (Information Technology Equipment), medical, household, and industrial devices, making it suitable for use in diverse and demanding operational environments.
Key Features
- Fixed 24V DC output, 15W nominal power.
- Universal AC input range (80~264VAC).
- High energy efficiency (Level VI) with extremely low no-load power consumption (<0.075W).
- Ultra-thin housing design (28 mm width).
- Wide operating temperature range (-30°C to +70°C).
- Built-in protection against short circuit, overload, and overvoltage.
Applications and Certifications
The adapter is certified according to safety standards for ITE (Information Technology Equipment), medical, household, and industrial devices, making it suitable for use in diverse and demanding operational environments.
Cable Length: 1.5 m
DC Output Connector: Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm (P1J)
Dimensions (LxWxH): 55.0mm x 48.0mm x 28.0mm
Efficiency: Up to 88.5% (Level VI)
Input Voltage Range: 80 ~ 264VAC / 113 ~ 370VDC
No-Load Power Consumption: < 0.075W
Operating Temperature: -30°C ~ +70°C
Output Voltage: 24V DC
Rated Current: 0.625A
Rated Power: 15W
DC Output Connector: Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm (P1J)
Dimensions (LxWxH): 55.0mm x 48.0mm x 28.0mm
Efficiency: Up to 88.5% (Level VI)
Input Voltage Range: 80 ~ 264VAC / 113 ~ 370VDC
No-Load Power Consumption: < 0.075W
Operating Temperature: -30°C ~ +70°C
Output Voltage: 24V DC
Rated Current: 0.625A
Rated Power: 15W
-
