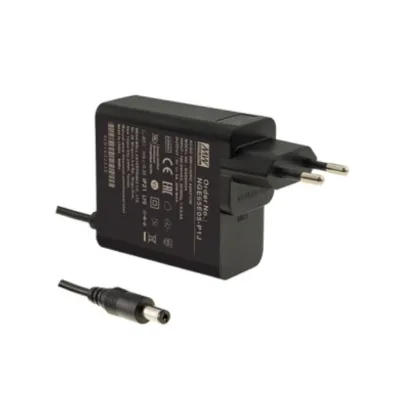

NGE65 Series 65W EU Wall-Mounted AC/DC Adapter
SKU:NGE65E24-P1J
Manufacturer:Mean Well
New
Image is for illustrative purposes only
The Mean Well NGE65E24-P1J is a highly reliable 65W AC/DC wall-mount adapter featuring a fixed European (EU) AC plug and a standard P1J DC connector (2.1x5.5 mm). Its ultra-thin 30 mm housing is specifically designed to prevent obstruction of adjacent power outlets, making it ideal for crowded socket strips.
Key Features - Provides 65W of stable AC/DC power.
- Space Saving Design: Ultra-thin 30 mm width housing.
- High Efficiency: Meets Level VI standards with ultra-low no-load power consumption (<0.075W).
- Wide Operating Temperature Range: Functions reliably from -30°C to +70°C.
- Built-in Protection: Includes short circuit, overload, and overvoltage protection.
Multi-Standard Safety Compliance The NGE65 series is suitable for a wide range of critical applications due to its simultaneous compliance with multiple stringent global safety standards, including ITE (62368-1), Household (60335-1), and Industrial (61558-1/-2-16). It also meets Medical safety standards (60601-1, 2xMOPP) for use in BF-type medical applications.
Key Features - Provides 65W of stable AC/DC power.
- Space Saving Design: Ultra-thin 30 mm width housing.
- High Efficiency: Meets Level VI standards with ultra-low no-load power consumption (<0.075W).
- Wide Operating Temperature Range: Functions reliably from -30°C to +70°C.
- Built-in Protection: Includes short circuit, overload, and overvoltage protection.
Multi-Standard Safety Compliance The NGE65 series is suitable for a wide range of critical applications due to its simultaneous compliance with multiple stringent global safety standards, including ITE (62368-1), Household (60335-1), and Industrial (61558-1/-2-16). It also meets Medical safety standards (60601-1, 2xMOPP) for use in BF-type medical applications.
AC Plug Type: EU (Fixed Blade)
Cable Length: 1.5 m
DC Plug Type: P1J (2.1mm ID x 5.5mm OD x 11.0mm L)
Energy Efficiency Level: Level VI
Input Voltage Range: 80 ~ 264 VAC
No-Load Power Consumption: <0.075 W
Operating Temperature Range: -30°C to +70°C
Output Voltage: 24 VDC
Power: 65 W
Protections: Short Circuit, Overload, Overvoltage
Rated Current: 2.71 A
Standard Compliance: ITE (62368-1), Medical (60601-1), Household (60335-1), Industrial (61558-1/-2-16), EAC TPTC004
Width: 30 mm
Cable Length: 1.5 m
DC Plug Type: P1J (2.1mm ID x 5.5mm OD x 11.0mm L)
Energy Efficiency Level: Level VI
Input Voltage Range: 80 ~ 264 VAC
No-Load Power Consumption: <0.075 W
Operating Temperature Range: -30°C to +70°C
Output Voltage: 24 VDC
Power: 65 W
Protections: Short Circuit, Overload, Overvoltage
Rated Current: 2.71 A
Standard Compliance: ITE (62368-1), Medical (60601-1), Household (60335-1), Industrial (61558-1/-2-16), EAC TPTC004
Width: 30 mm
-
