MEAN WELL GST120A Series 120W Desktop AC Adapter
SKU:GST120A24-P1M
Manufacturer:Mean Well
New

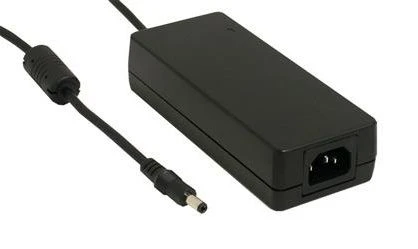

Image is for illustrative purposes only
The MEAN WELL GST120A24-P1M is a highly reliable, 120W desktop AC/DC power adapter from the GST120A industrial series, designed for applications requiring high energy efficiency and stable 24V output.
Key Features
- Provides 120W of power with a nominal output of 24V DC at 5A.
- Output delivered via a standard DC plug (2.5 x 5.5 mm, P1M).
- Input connection uses a standard 3-pin IEC320-C14 connector (Class I, grounded).
- Meets Level VI energy efficiency standards.
- Features extremely low no-load power consumption (less than 0.15W).
- Includes built-in active Power Factor Correction (PFC).
- Constructed with a fully enclosed, flame-resistant plastic housing (UL94V-0).
- Comprehensive protection against short circuit, overload, overvoltage, and overtemperature.
Applications
This adapter is suitable for powering consumer electronics, telecommunication equipment, and various industrial machinery requiring a high-efficiency 24V power source.
Key Features
- Provides 120W of power with a nominal output of 24V DC at 5A.
- Output delivered via a standard DC plug (2.5 x 5.5 mm, P1M).
- Input connection uses a standard 3-pin IEC320-C14 connector (Class I, grounded).
- Meets Level VI energy efficiency standards.
- Features extremely low no-load power consumption (less than 0.15W).
- Includes built-in active Power Factor Correction (PFC).
- Constructed with a fully enclosed, flame-resistant plastic housing (UL94V-0).
- Comprehensive protection against short circuit, overload, overvoltage, and overtemperature.
Applications
This adapter is suitable for powering consumer electronics, telecommunication equipment, and various industrial machinery requiring a high-efficiency 24V power source.
AC Input Connector: IEC320-C14 (3-pole, Class I)
DC Output Connector: 2.5 x 5.5 x 11mm (P1M, Tuning Fork type)
Dimensions (LxWxH): 167 x 67 x 35mm
Energy Efficiency Level: VI
Input Voltage Range: 85 ~ 264VAC / 120 ~ 370VDC
No-load Power Consumption: < 0.15W
Operating Temperature: -30°C ~ +70°C
Output Voltage: 24V DC
Power Factor Correction (PFC): Built-in active
Protection: Short circuit / Overload / Over voltage / Over temperature
Rated Current: 5A
Rated Power: 120W
DC Output Connector: 2.5 x 5.5 x 11mm (P1M, Tuning Fork type)
Dimensions (LxWxH): 167 x 67 x 35mm
Energy Efficiency Level: VI
Input Voltage Range: 85 ~ 264VAC / 120 ~ 370VDC
No-load Power Consumption: < 0.15W
Operating Temperature: -30°C ~ +70°C
Output Voltage: 24V DC
Power Factor Correction (PFC): Built-in active
Protection: Short circuit / Overload / Over voltage / Over temperature
Rated Current: 5A
Rated Power: 120W
-
