Power module DC/DC step-down 36...72V/ 12V 10A
SKU:OKYN240226-14
Manufacturer:Okystar

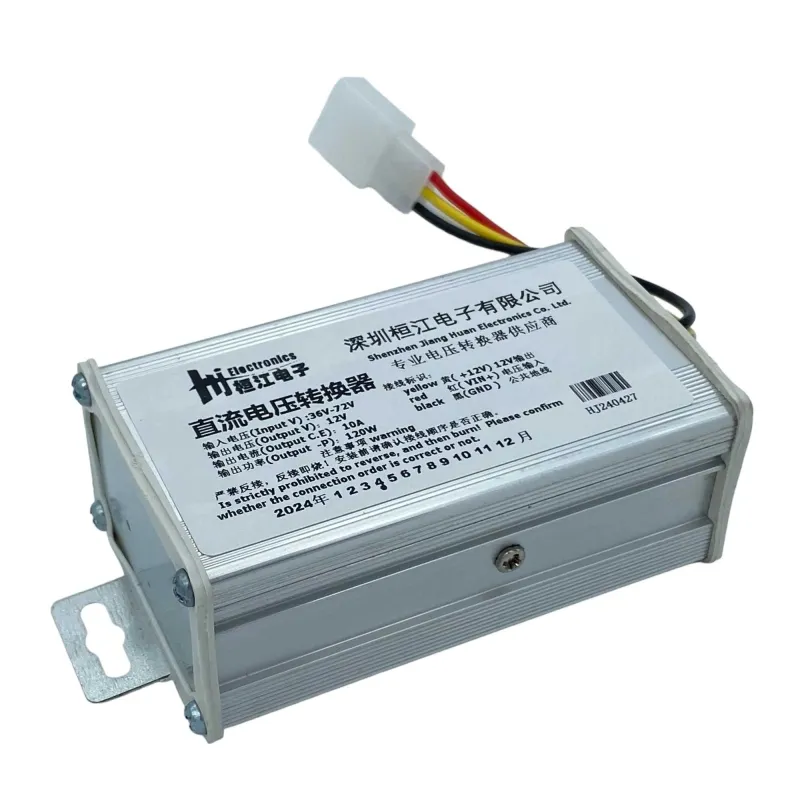

Image is for illustrative purposes only
This DC/DC step-down converter efficiently transforms a high-voltage DC input into a stable 12V output. It is designed for reliable power conversion in demanding environments.
Key Features
- Wide Input Range: Accepts a DC input voltage from 36V to 72V.
- Stable 12V Output: Provides a regulated 12V DC output.
- High Power Capacity: Delivers up to 10A of current with a maximum power rating of 120W.
- Sealed Enclosure: Features a sealed housing for robust protection against dust and moisture ingress.
Applications
With its wide input range and durable, sealed construction, this converter is ideal for use in electric transport and various industrial systems. It reliably powers 12V accessories, lighting, and control circuits from a higher-voltage primary power source.
Key Features
- Wide Input Range: Accepts a DC input voltage from 36V to 72V.
- Stable 12V Output: Provides a regulated 12V DC output.
- High Power Capacity: Delivers up to 10A of current with a maximum power rating of 120W.
- Sealed Enclosure: Features a sealed housing for robust protection against dust and moisture ingress.
Applications
With its wide input range and durable, sealed construction, this converter is ideal for use in electric transport and various industrial systems. It reliably powers 12V accessories, lighting, and control circuits from a higher-voltage primary power source.
Input Voltage: 36V-72V DC
Output Voltage: 12V DC
Output Current: 10A
Output Power: 120W
IP Rating: IP67
Operating Temperature: -40°C ~ +80°C
Dimensions: 70*50*34mm
Output Voltage: 12V DC
Output Current: 10A
Output Power: 120W
IP Rating: IP67
Operating Temperature: -40°C ~ +80°C
Dimensions: 70*50*34mm
-
