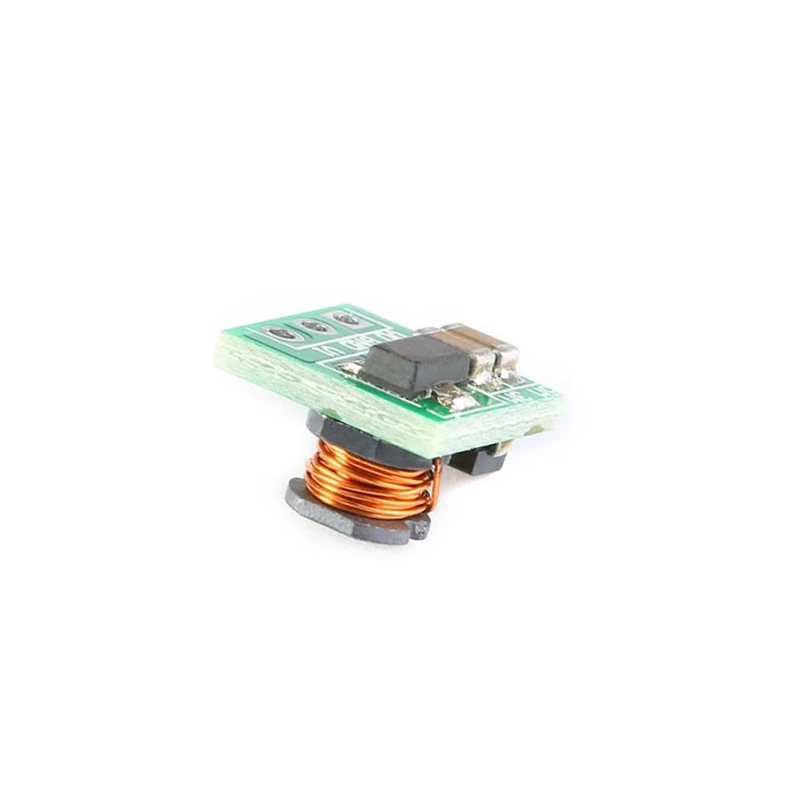

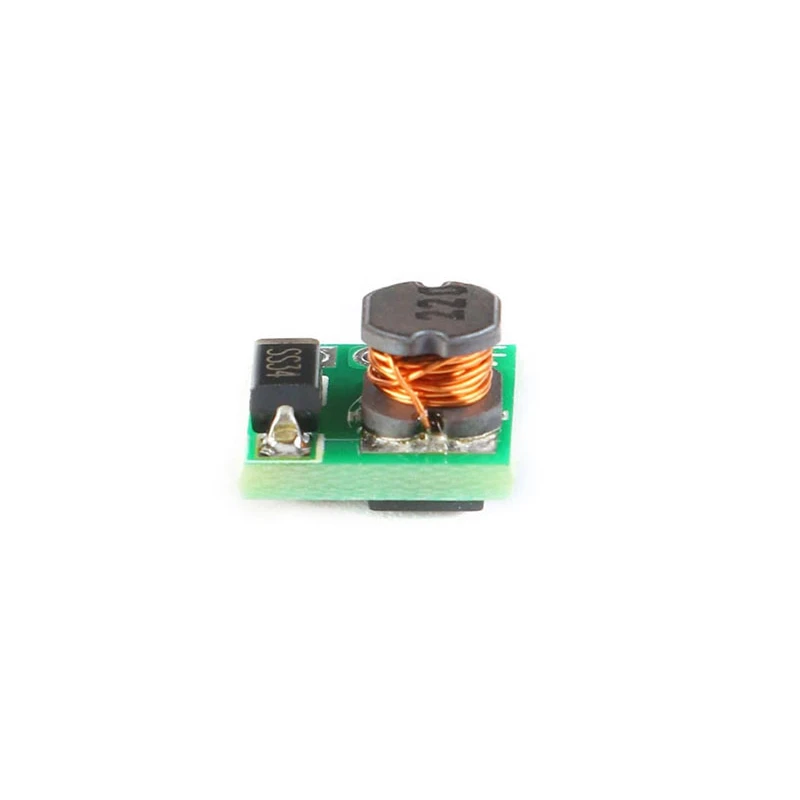

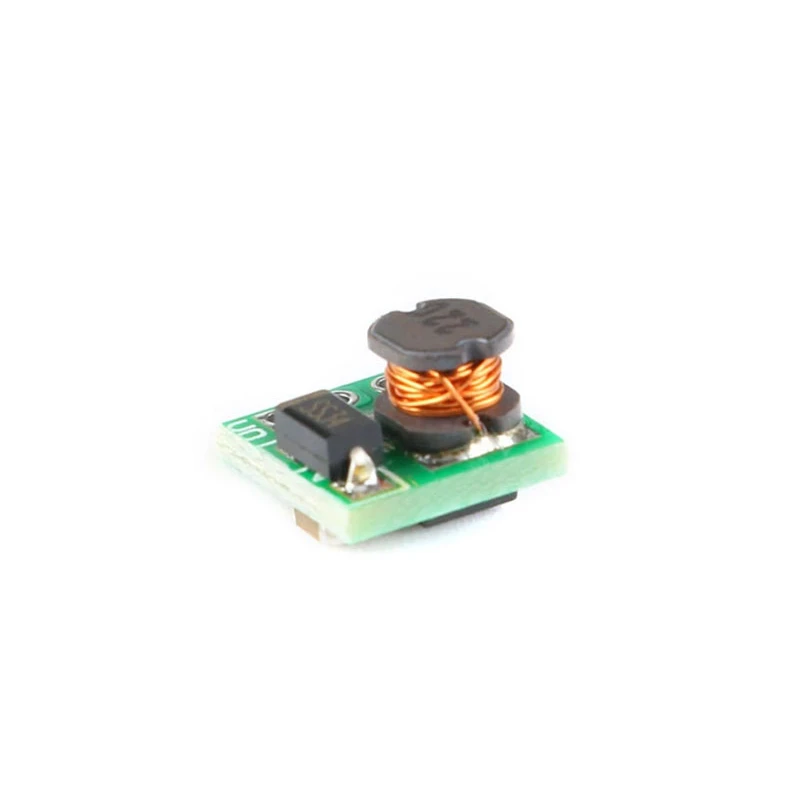

0.9-5V To 5V DC-DC Step Up Power Module Voltage Boost Converter Board

The OKY3501-8 is a compact DC-DC step-up converter designed to efficiently boost a low input voltage to a stable 5V DC output. Its ability to operate from an input as low as 0.9V makes it highly suitable for low-power and battery-operated projects.

Key Features
- Stable 5V Output: Converts a wide input voltage range of 0.9V to 5V into a regulated 5V DC supply.
- Low-Voltage Operation: Features a low startup voltage, beginning operation at just 0.8V.
- Compact Form Factor: Measures only 11 x 10.5 x 7.5 mm, allowing for easy integration into space-constrained electronics.
- Input-Dependent Current: The available output current scales with the input voltage, delivering up to 480mA. The specific performance is as follows:
- 1V to 1.5V Input: 40-100mA Output
- 1.5V to 2V Input: 100-150mA Output
- 2V to 3V Input: 150-380mA Output
- Above 3V Input: 380-480mA Output
