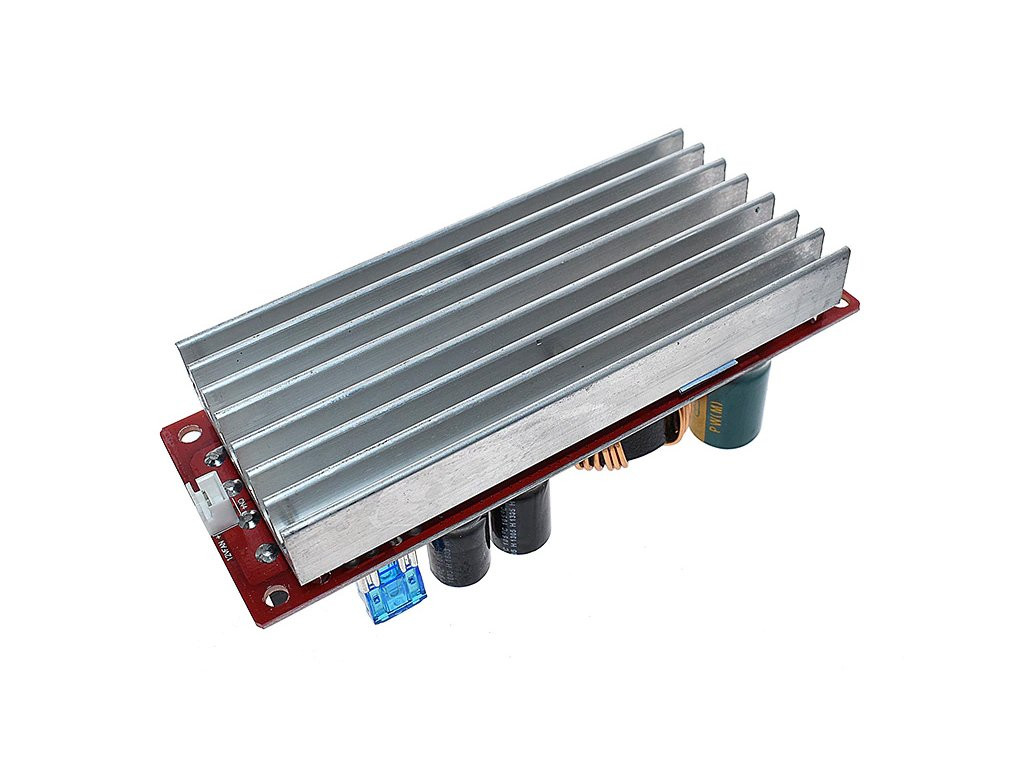

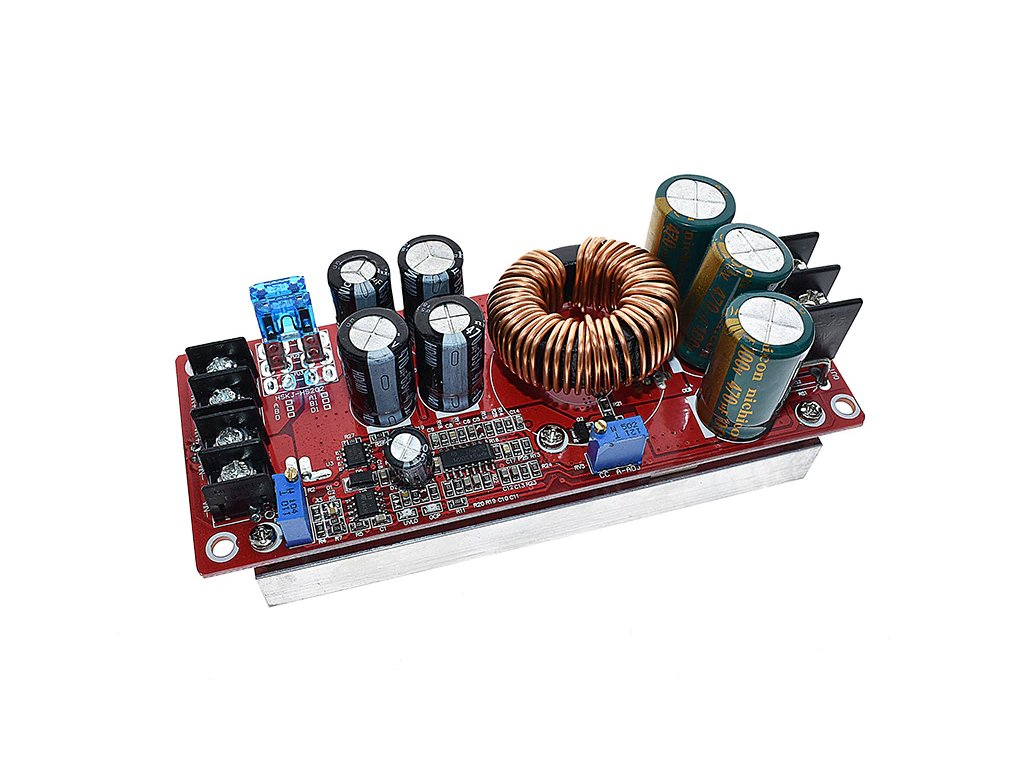

Power module DC/DC step-up 10-60V/12-75V 12A 1200W
SKU:LA122043
New
Image is for illustrative purposes only

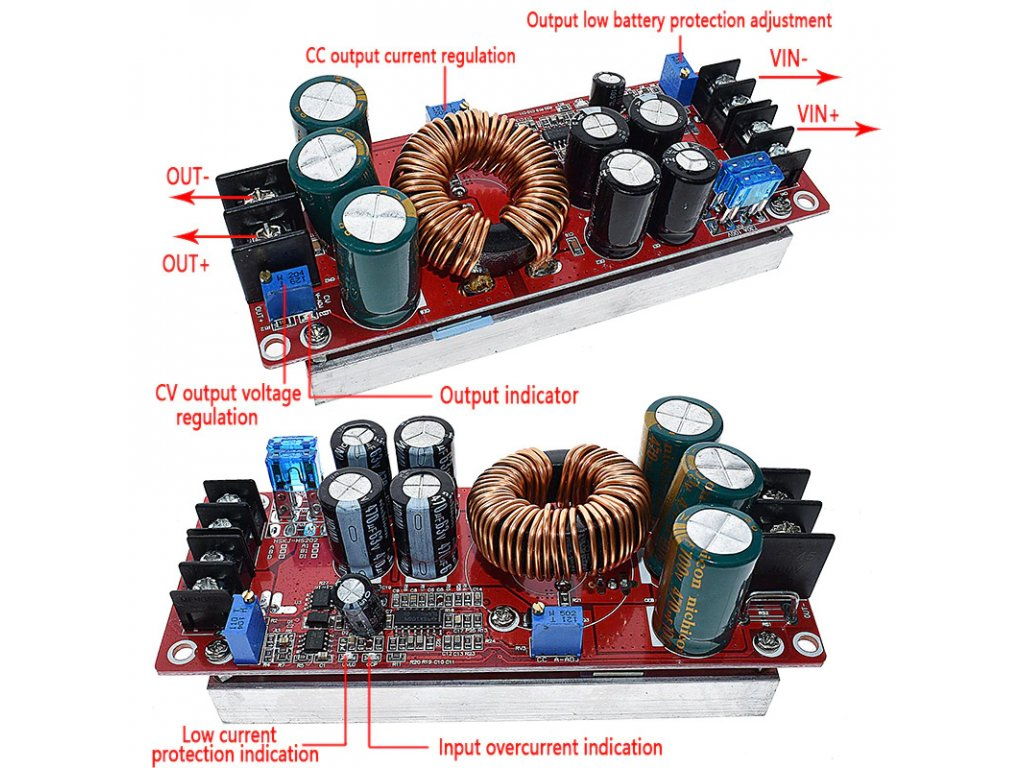

This is a non-isolated step-up (boost) DC-DC converter with adjustable output voltage and current limit.
Key Features
- Non-isolated step-up (boost) design
- Adjustable output voltage range: 12V to 75V
- Adjustable output current limit: 0A to 20A
- Wide input voltage range: 9V to 50V (includes minimum voltage for battery protection)
- Dedicated fixed 12V output for fan connection
- Maximum output power: 1200W
Applications
Suitable for connecting a second battery in vehicles equipped with smart alternators.
Input voltage: 10-60V
Output voltage: 12-75V (adjustable)
Max output current: 0.3-12A (20A with fan)
Efficiency up to: 95%
Output power max.: 1200W
Input protection fuses: 2×15A
No-load current typ.: 15mA
Fan output: 12V output for fan
Under-voltage protection setting: 9-50V
Size: 133x52x46mm
Output voltage: 12-75V (adjustable)
Max output current: 0.3-12A (20A with fan)
Efficiency up to: 95%
Output power max.: 1200W
Input protection fuses: 2×15A
No-load current typ.: 15mA
Fan output: 12V output for fan
Under-voltage protection setting: 9-50V
Size: 133x52x46mm
-
