SKU:LRS-350-12
Manufacturer:
Mean Well

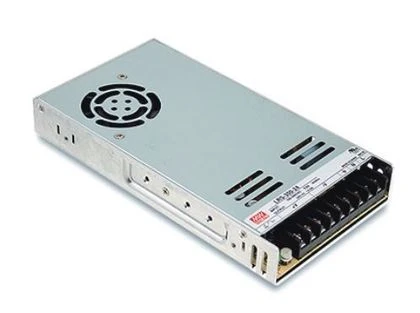

Image is for illustrative purposes only
MEAN WELL power supply LRS-350-12.
Series: LRS-350
Housing type: 241A
Number of outputs: 1
Power: 348W
Output voltage: 12V
Output current: 29A
Voltage range: 90...132VAC / 180...264VAC; 240...370VDC
Efficiency: 85%
Protection: overload, over voltage, short circuit
Operating temperature: -25 °C... +70 °C
Dimensions: 215 x 115 x 30mm
Weight: 0.76kg
Series: LRS-350
Housing type: 241A
Number of outputs: 1
Power: 348W
Output voltage: 12V
Output current: 29A
Voltage range: 90...132VAC / 180...264VAC; 240...370VDC
Efficiency: 85%
Protection: overload, over voltage, short circuit
Operating temperature: -25 °C... +70 °C
Dimensions: 215 x 115 x 30mm
Weight: 0.76kg
Weight: 0.76 kg
Input voltage AC from, V: 180
PFC: NES
Series: LRS
Input voltage AC to, V: 264
Height, mm: 30
Input voltage DC from, V: 240
Width, mm: 115
Input voltage DC to, V: 370
Depth, mm: 215
Model No.: LRS-350-12
Power, W: 348
Output voltage DC, V: 12
Output current DC, A: 29
Input voltage AC from, V: 180
PFC: NES
Series: LRS
Input voltage AC to, V: 264
Height, mm: 30
Input voltage DC from, V: 240
Width, mm: 115
Input voltage DC to, V: 370
Depth, mm: 215
Model No.: LRS-350-12
Power, W: 348
Output voltage DC, V: 12
Output current DC, A: 29
-
