SKU:PB048670
Manufacturer:
Nextec
New
Image is for illustrative purposes only

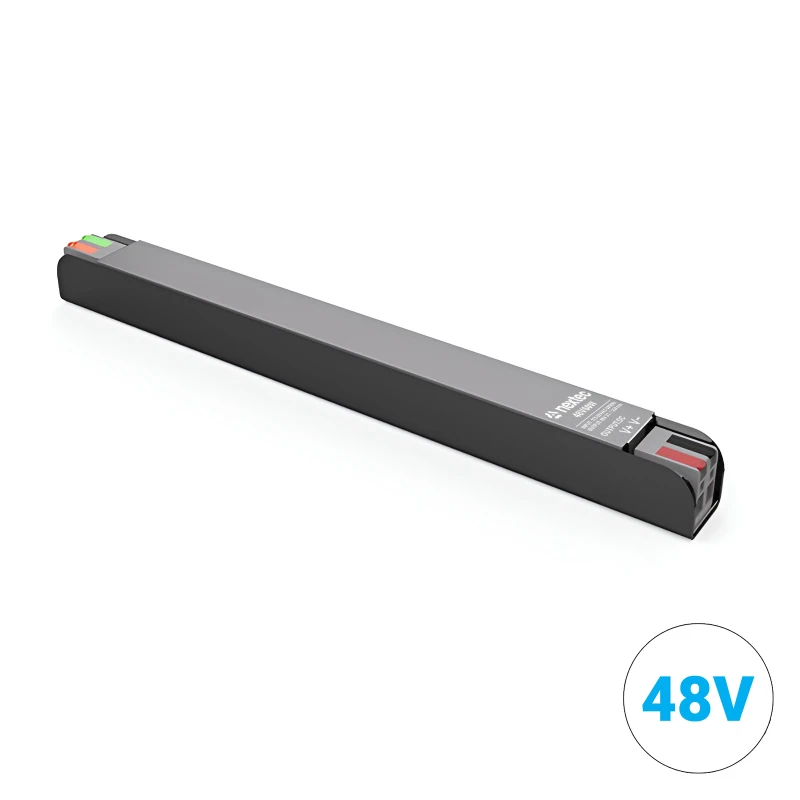

The AURA modular power supply is a high-performance solution designed for applications where installation space is extremely limited. Its exceptionally slim profile of only 18 mm allows for easy integration into narrow spaces where standard power units cannot fit, making it an ideal choice for modern lighting projects.
This versatile device is optimized for LED lighting systems and IT equipment, providing stable and reliable power. It features comprehensive protection circuitry, including safeguards against short circuits, overloads, over-voltages, and overheating. With an efficiency rating of 91%, it minimizes energy loss and heat generation while complying with international safety regulations.
This versatile device is optimized for LED lighting systems and IT equipment, providing stable and reliable power. It features comprehensive protection circuitry, including safeguards against short circuits, overloads, over-voltages, and overheating. With an efficiency rating of 91%, it minimizes energy loss and heat generation while complying with international safety regulations.
Product code: PB048670
EAN code: 5908293948670
IP rating: IP20
Voltage range: 175-264VAC
Frequency range: 50Hz
Efficiency: 91%
Power factor: PF>0.55
Input current: 0.52A/230VAC
Inrush current: Cold start 50A/230VAC
DC voltage: 48V DC
Rated current: 1.25A
Current range: 0~1.25A
Rated power: 60W
Short circuit protection: YES
Overload protection: YES
Over temperature protection: YES
Working temp.: -30°C - +50°C
Storage temperature: -40°C - +80°C
Safety standards: CE, RoHS, SELV
Isolation: II/P-O/P: 2000Vac
Isolation resistance: I/P-O/P: 100MΩ/500VDC/25°C/70%RH
EMC standards: EN55015:2013; EN61547:2009; EN61000-3-2:2014; EN61000-3-3:2013
Weight: 86g +/- 10g
Dimension (L x W x H): 222 x 19.5 x 18 mm
EAN code: 5908293948670
IP rating: IP20
Voltage range: 175-264VAC
Frequency range: 50Hz
Efficiency: 91%
Power factor: PF>0.55
Input current: 0.52A/230VAC
Inrush current: Cold start 50A/230VAC
DC voltage: 48V DC
Rated current: 1.25A
Current range: 0~1.25A
Rated power: 60W
Short circuit protection: YES
Overload protection: YES
Over temperature protection: YES
Working temp.: -30°C - +50°C
Storage temperature: -40°C - +80°C
Safety standards: CE, RoHS, SELV
Isolation: II/P-O/P: 2000Vac
Isolation resistance: I/P-O/P: 100MΩ/500VDC/25°C/70%RH
EMC standards: EN55015:2013; EN61547:2009; EN61000-3-2:2014; EN61000-3-3:2013
Weight: 86g +/- 10g
Dimension (L x W x H): 222 x 19.5 x 18 mm
-
PB04681227.00 €Customer price25.65 €-5%
