SKU:PB048304
Manufacturer:
Nextec
New
Image is for illustrative purposes only

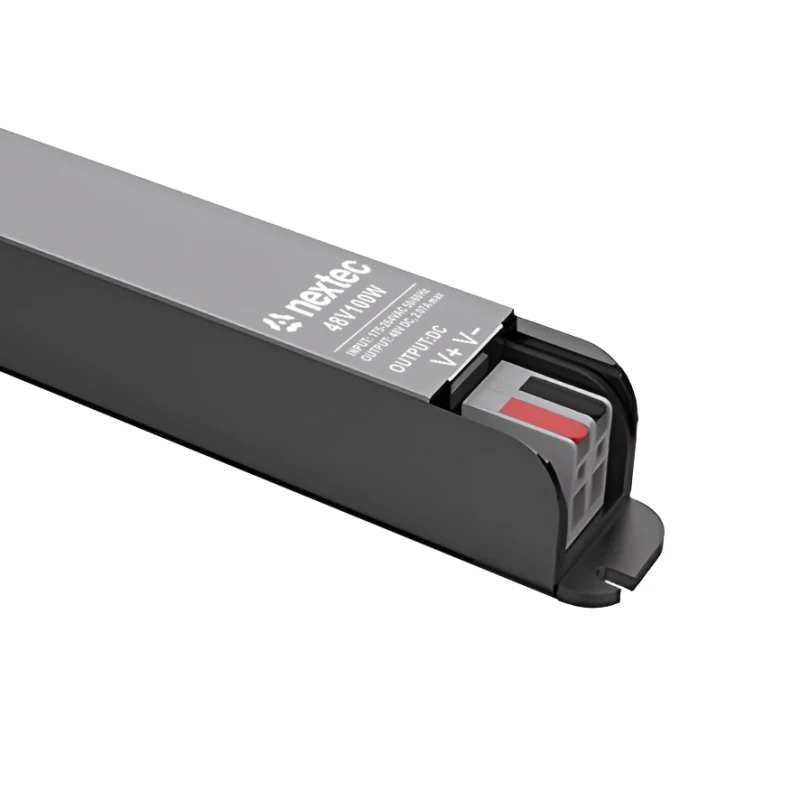

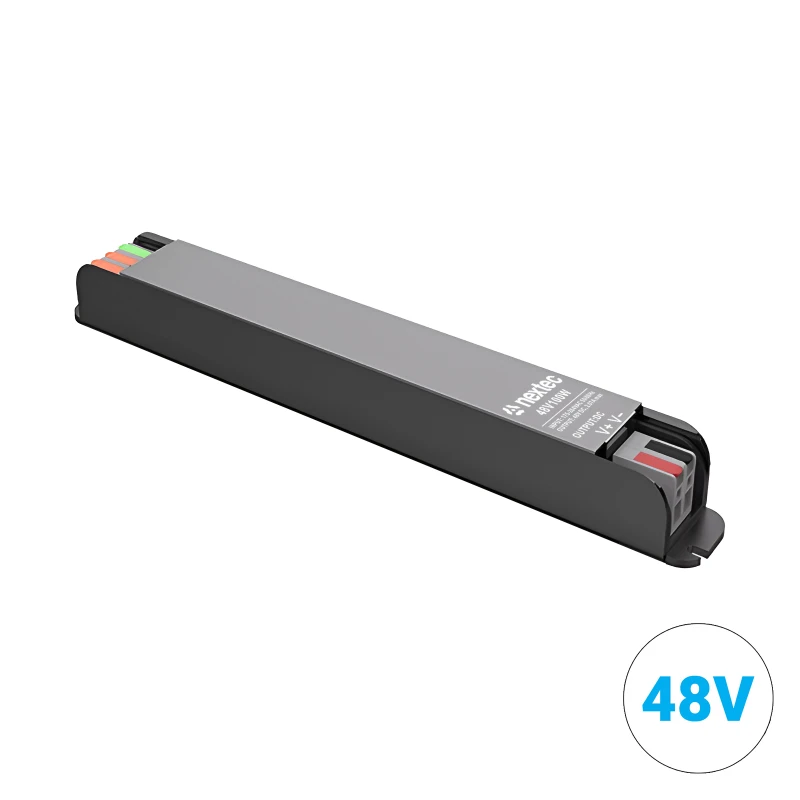

The Nextec AURA series modular power supply is engineered to deliver high-performance energy solutions in a remarkably compact form. Featuring an extra-slim profile of just 23mm and high power density, it is the ideal choice for installations where space is a critical constraint.
Equipped with crimp-type wiring, this unit offers maximum flexibility and ease during installation. It is a versatile component widely used in professional LED lighting systems as well as for powering IT equipment. With an impressive 90% efficiency rating, it ensures energy-conscious operation and reduced heat dissipation.
Safety is prioritized through full compliance with global regulations. The device is built with a comprehensive protection suite, including safeguards against short circuits, overloads, overvoltage, and overheating, guaranteeing long-term reliability and stable performance.
Equipped with crimp-type wiring, this unit offers maximum flexibility and ease during installation. It is a versatile component widely used in professional LED lighting systems as well as for powering IT equipment. With an impressive 90% efficiency rating, it ensures energy-conscious operation and reduced heat dissipation.
Safety is prioritized through full compliance with global regulations. The device is built with a comprehensive protection suite, including safeguards against short circuits, overloads, overvoltage, and overheating, guaranteeing long-term reliability and stable performance.
Product code: PB048304
EAN code: 5908293948304
Protection rating: IP20
Input voltage range: 175 - 264VAC
Frequency range: 50Hz
Efficiency: 90%
Power factor (PF): >0.55
Input current: 0.88A / 230Vac
Inrush current: Cold start 60A / 230VAC
Output voltage: 48V DC
Rated current: 2.08A
Current range: 0 ~ 2.08A
Rated power: 100W
Short circuit protection: YES
Overload protection: YES
Over temperature protection: YES
Working temperature: -30°C to +50°C
Storage temperature: -40°C to +80°C
Safety standards: CE, RoHS, SELV
Withstand voltage: II/P-O/P: 2000Vac
Isolation resistance: I/P-O/P: 100MΩ / 500VDC / 25°C / 70%RH
EMC standards: EN55015:2013; EN61547:2009; EN61000-3-2:2014; EN61000-3-3:2013
Weight: 190g +/- 10g
Dimension (L x W x H): 217 x 27 x 23 mm
EAN code: 5908293948304
Protection rating: IP20
Input voltage range: 175 - 264VAC
Frequency range: 50Hz
Efficiency: 90%
Power factor (PF): >0.55
Input current: 0.88A / 230Vac
Inrush current: Cold start 60A / 230VAC
Output voltage: 48V DC
Rated current: 2.08A
Current range: 0 ~ 2.08A
Rated power: 100W
Short circuit protection: YES
Overload protection: YES
Over temperature protection: YES
Working temperature: -30°C to +50°C
Storage temperature: -40°C to +80°C
Safety standards: CE, RoHS, SELV
Withstand voltage: II/P-O/P: 2000Vac
Isolation resistance: I/P-O/P: 100MΩ / 500VDC / 25°C / 70%RH
EMC standards: EN55015:2013; EN61547:2009; EN61000-3-2:2014; EN61000-3-3:2013
Weight: 190g +/- 10g
Dimension (L x W x H): 217 x 27 x 23 mm
-
