Power Supply for Raspberry Pi 5, 27 W, GaN, black

SKU:74437-GBY
Manufacturer:Goobay
Power Supply for Raspberry Pi 5, 27 W, GaN, black
Image is for illustrative purposes only

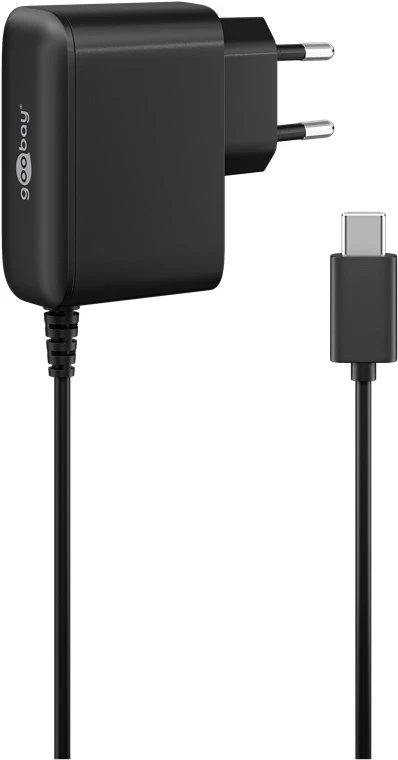

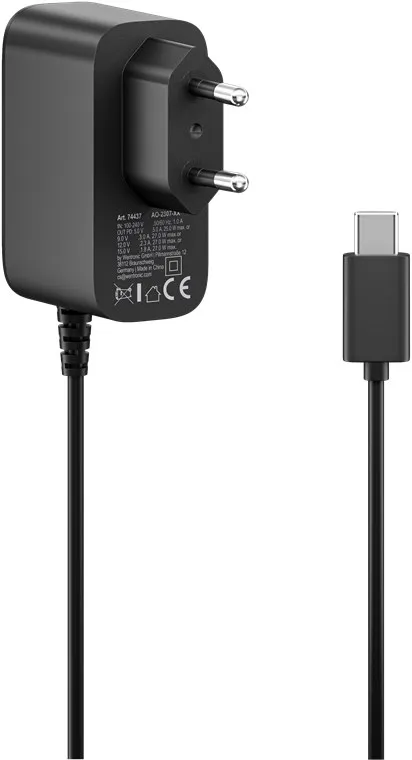

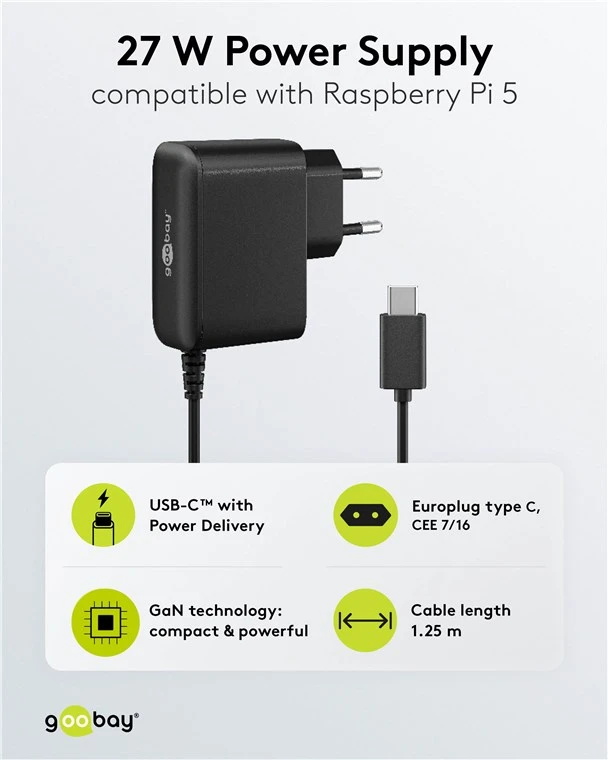

The Goobay 27 W GaN Power Supply (Art. 74437) is a compact, black USB-C power adapter specifically engineered using advanced Gallium Nitride (GaN) technology to meet the high power demands of the Raspberry Pi 5.
This ultra-thin design provides high performance while maintaining a significantly smaller footprint than traditional chargers.



Key Features

- Maximum output power of 27 W.

- Supports Power Delivery (PD) technology.

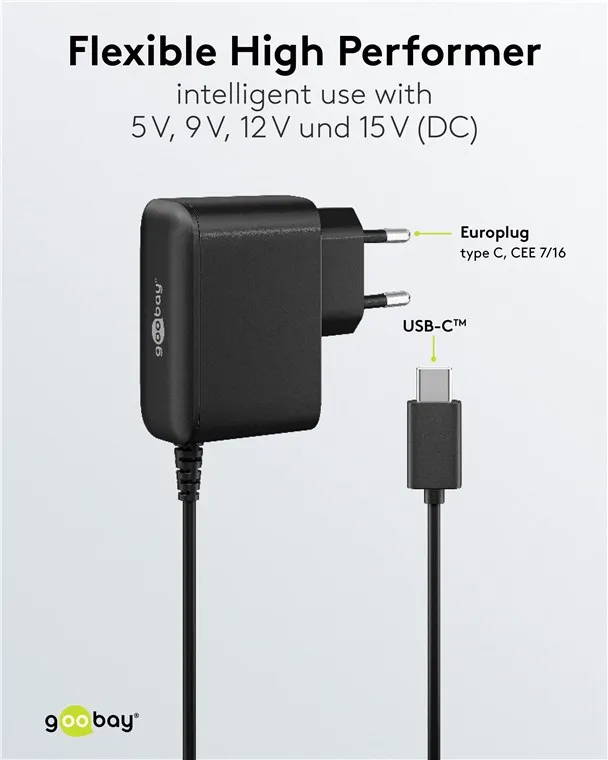

- Voltage profiles supported: 5 V, 9 V, 12 V, and 15 V.

- Input voltage range: 100–240 V AC.

- Input connection: Europlug (Type C, CEE 7/16).

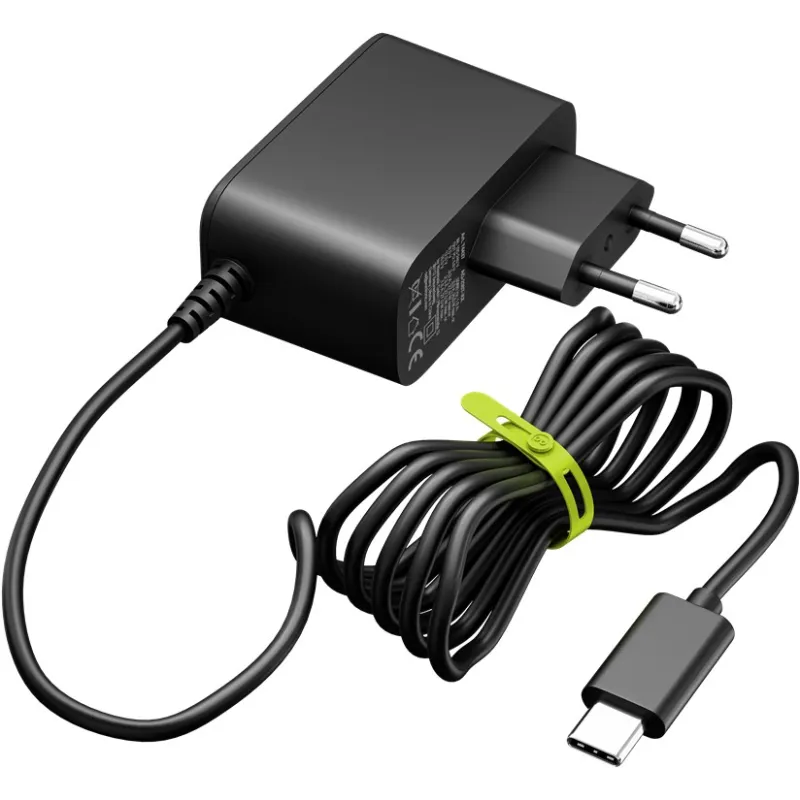

- Output connection: Fixed USB-C™ cable, 1.25 m length.



Applications

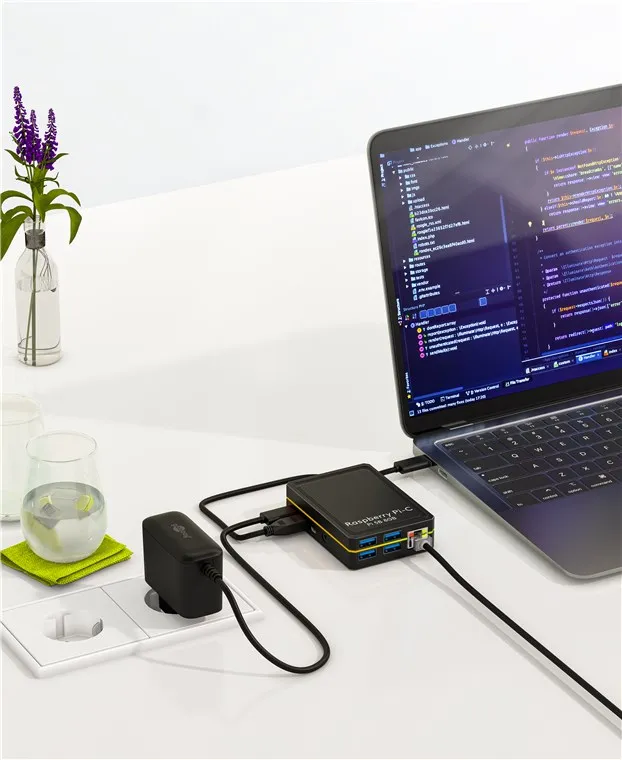

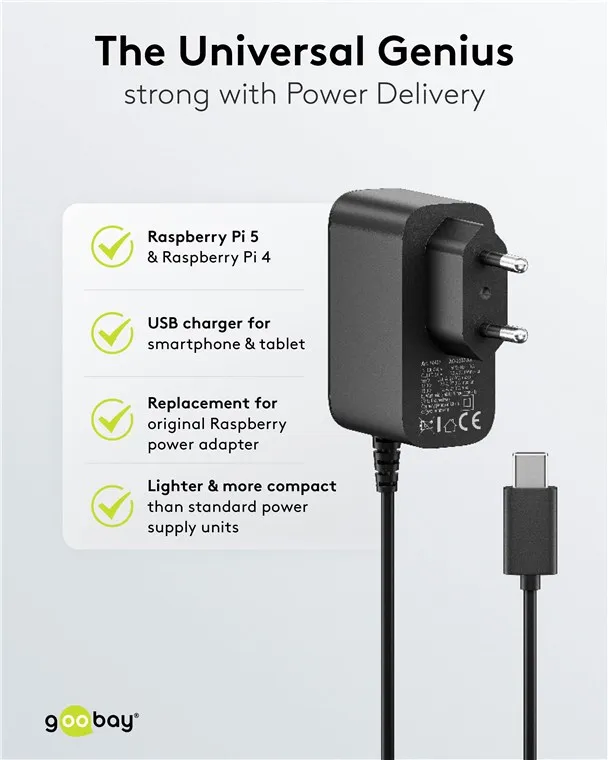

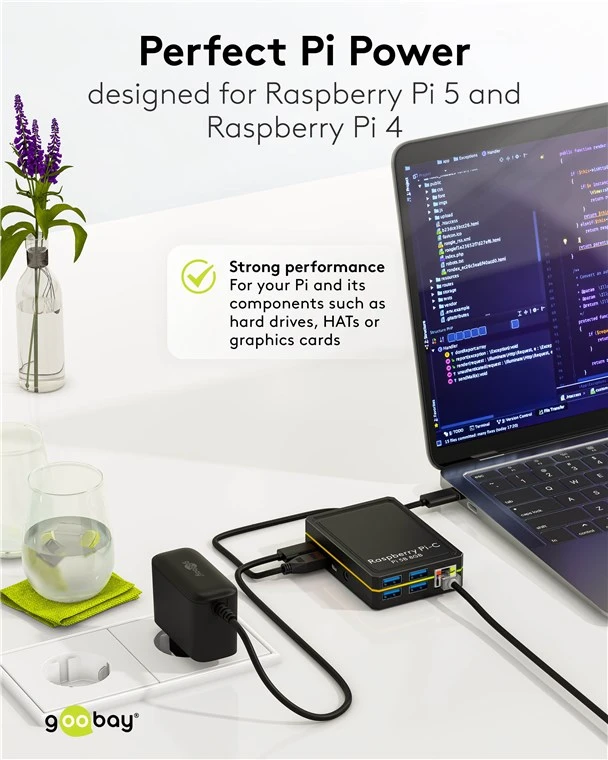

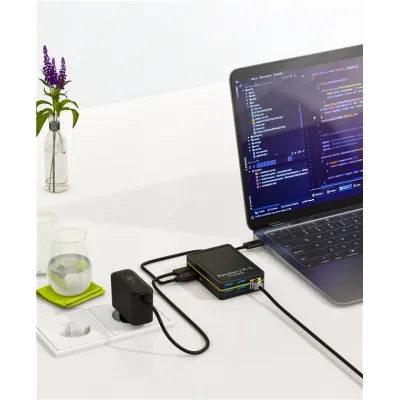

The adapter is optimized for the Raspberry Pi 5, providing reliable power even when connected to high-consumption peripherals such as external hard drives, HAT boards, or PCIe™ cards. It is also compatible with the Raspberry Pi 4 and functions as a universal USB-C charger for standard smartphones and tablets.
Average Active Efficiency (ErP): 85.4 %
Cable Length: 1.25 m
Color: black

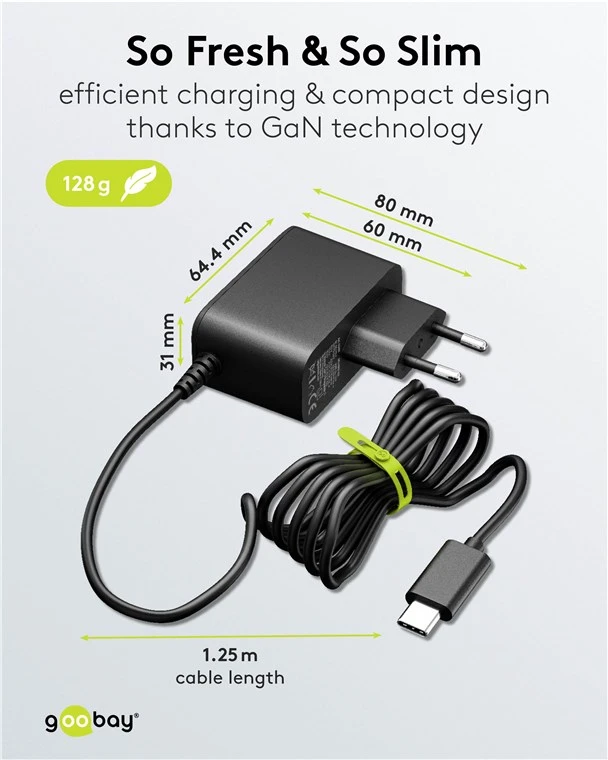

Dimensions (without cable): 64.4 x 31 x 80 mm
Efficiency at Low Load (10 %): 84.5 %
Input Connector Type: Europlug (Type C CEE 7/16)
Input Frequency: 50/60 Hz
Input Voltage: 100 - 240 V AC
Max. Input Current: 1.0 A
Max. Output Power: 27 W
No-Load Power Consumption: 0.05 W
Output Connector Type: USB-C™ (cable)
Power Delivery Profiles: 5.0V / 5.0A (25.0W max), 9.0V / 3.0A (27.0W max), 12.0V / 2.25A (27.0W max), 15.0V / 1.8A (27.0W max)
Technology: GaN (Gallium Nitride)
Weight: 128 g
74437-GBY Datasheet EN993.22KB
Download
74437-GBY Manual EN469.35KB
Download
