Transformer: encapsulated; 4.5VA; 230VAC; 18V; 18V; 125mA; 125mA
SKU:BVEI3821196
New

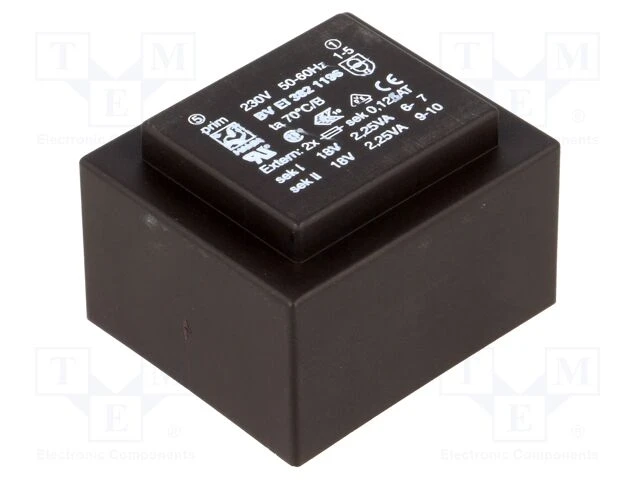

Image is for illustrative purposes only
The HAHN BV EI 382 1196 is an encapsulated transformer from the EI 382 series, specifically designed for mounting on printed circuit boards (PCB). It converts standard 230 V AC mains voltage into dual secondary outputs for various electronic applications.
Key Specifications
- Nominal Power Rating: 4.5 VA
- Primary Input Voltage: 230 V AC
- Dual Secondary Output: 2 x 18 V AC
- Output Current: 125 mA per winding
Features and Compliance
This transformer is engineered for high electrical safety and a long operational lifespan. The construction utilizes a self-extinguishing compound and casing material for enhanced protection. It complies with major international safety standards, including DIN EN 61558-2-6 and DIN EN 60335-1, and meets environmental requirements such as RoHS and REACH.
Key Specifications
- Nominal Power Rating: 4.5 VA
- Primary Input Voltage: 230 V AC
- Dual Secondary Output: 2 x 18 V AC
- Output Current: 125 mA per winding
Features and Compliance
This transformer is engineered for high electrical safety and a long operational lifespan. The construction utilizes a self-extinguishing compound and casing material for enhanced protection. It complies with major international safety standards, including DIN EN 61558-2-6 and DIN EN 60335-1, and meets environmental requirements such as RoHS and REACH.
Core height: 13.6 mm
Height max: 28.4 mm
No-load Secondary Voltage: 2 x 24.9 V
Norms Compliance: RoHS, REACH
Output Power: 4.5 VA
Primary Voltage: 230 V AC
Secondary Current: 2 x 125 mA
Secondary Voltage: 2 x 18 V
Standards Compliance: DIN EN 61558-2-6, DIN EN 60335-1, UL 5085-1, UL 5085-2, CSA C22.2-66.1-06, CSA C22.2-66.2-06
Temperature Class: ta 70 °C/B
Transformer Type: encapsulated
Weight: 0.150 kg
Height max: 28.4 mm
No-load Secondary Voltage: 2 x 24.9 V
Norms Compliance: RoHS, REACH
Output Power: 4.5 VA
Primary Voltage: 230 V AC
Secondary Current: 2 x 125 mA
Secondary Voltage: 2 x 18 V
Standards Compliance: DIN EN 61558-2-6, DIN EN 60335-1, UL 5085-1, UL 5085-2, CSA C22.2-66.1-06, CSA C22.2-66.2-06
Temperature Class: ta 70 °C/B
Transformer Type: encapsulated
Weight: 0.150 kg
-
