Image is for illustrative purposes only

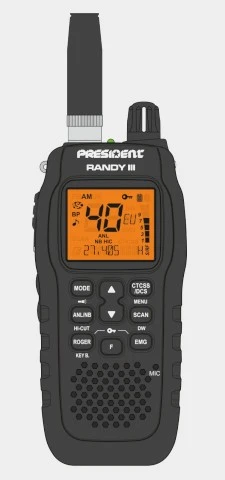

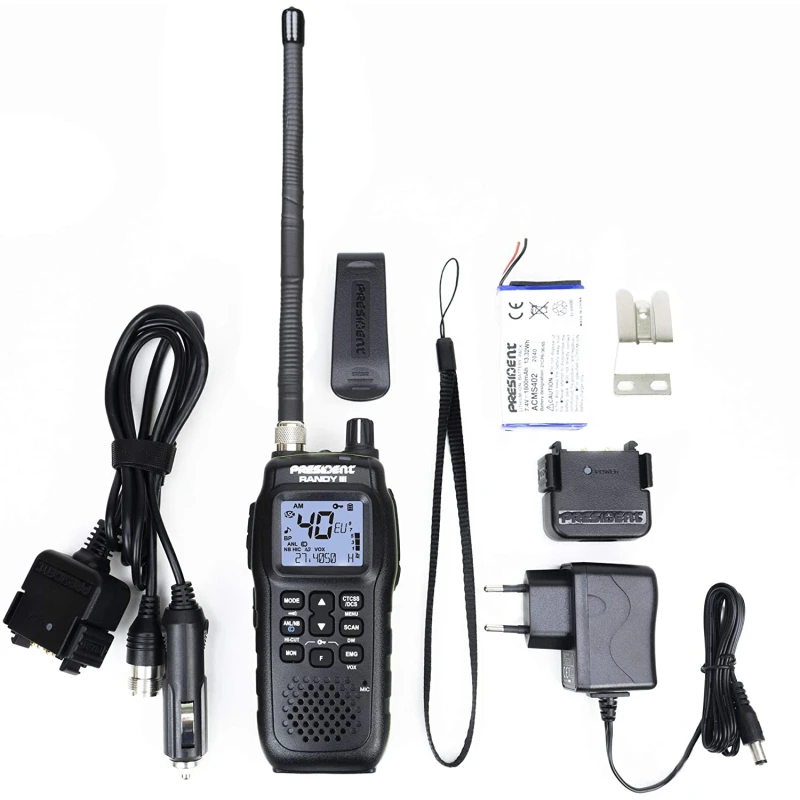

President TXPR611 - WALKIE TALKIE RANDY 3

  • SKU: TXPR611
  • President
  • 269.00 €
  • 209.00 € -22%
Pealadu
Tallinn, Peterburi tee 90F
13 pcs
Peterburi tee Oomipood
Tallinn, Peterburi tee 90F
2 pcs
Järve keskuse Oomipood
Tallinn, Pärnu mnt. 238
3 pcs
Lõunakeskuse Oomipood
Tartu, Lääneringtee 39
0 pcs
Põhjakeskuse Oomipood
Rakvere, Haljala tee 4
0 pcs
Kaubamajaka Oomipood
Pärnu, Papiniidu 8
3 pcs
Pargi keskuse Oomipood
Jõhvi, Puru tee 1
1 pcs

Number of channels : 40

Modulation modes : AM/FM

Frequency ranges : from 26,965 MHz to 27,405 MHz

CTCSS : 38 tones

DCS : 104 codes

Antenna impedance : 50 ohms

Power supply : 7.4 V (Handheld configuration) / 13.2 V (Mobile configuration)

Size : 152 (H) x 66,5 (L) x 37 (P) mm

Weight : 305 g with battery

Loud speaker : 8 ohms, 1 W

Transmission

Frequency allowance : +/- 200 Hz

Carrier power : 4 W AM / 4 W FM

Transmission interference : inferior to 4 nW (- 54 dBm)

Audio response : 300 Hz to 3 KHz

Emitted power in the adj. channel : inferior to 20 μW

Microphone sensitivity : 7 mV

Drain : 1,8 A max.

Modulated signal distortion : 2 %

Reception

Maxi. sensitivity at 20 dB sinad : 0.5 μV - 113 dBm AM / 0.35 μV - 116 dBm FM

Frequency response : 300 Hz to 3 kHz

Adjacent channel selectivity : 60 dB

Maximum audio power : 1 W

Squelch sensitivity : min. 0,2 μV - 120 dBm / max. 1 mV - 47 dBm

Frequency image rejection rate : 60 dB

Intermediate frequency rej. rate : 70 dB

Drain : Mode ECO

- 40 channels AM / FM

- Up/down channel selector

- Volume adjustment and ON/OFF

- Manual squelch and ASC)

- Multi-functions LCD display

- Frequencies display

- S-meter

- ANL, NB, HI-CUT filters

- Compander

- Noise Gate

- Scan

- F function key

- Beep Function

- Roger Beep

- Mode switch AM / FM

- Dual watch

- Tone

- CTCSS / DCS

- Key locking

- Preset channel programmable (EMG 1 & 2)

- Eco mode

- External microphone plug

- External loudspeaker jack

- Flashlight

- Battery : Lithium-Ion

TXPR611 Kasutusjuhend RUS1.57MBDownload
TXPR611 Kasutusjuhend ENG1.89MBDownload
User manual EST1.84MBDownload
