SKU:MLR1-MINI
Manufacturer:
MiBoxer
New
Image is for illustrative purposes only

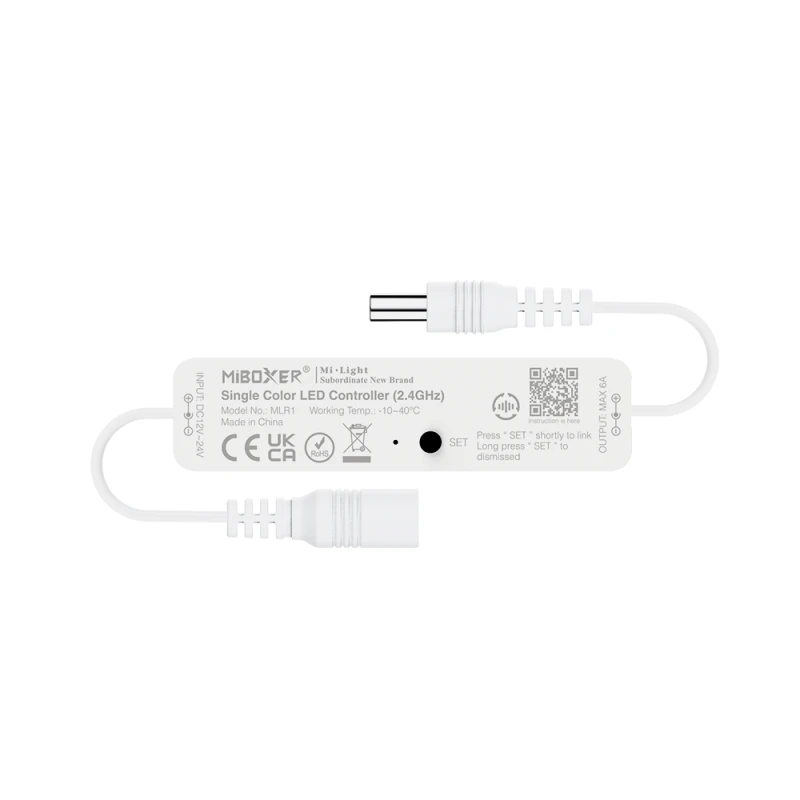

The MiBoxer MLR1-MINI is a compact, single-channel 2.4GHz controller designed for the precise management of single-color LED strips. Its ultra-small form factor and plug-and-play design make it an efficient solution for integrating dimming capabilities into various LED lighting setups.
Key Features
- Features standard DC male and female connectors for quick, tool-free installation between the power supply and LED strip.
- Delivers high-precision dimming with 4096 levels (0.1% to 100%) utilizing a logarithmic curve for exceptionally smooth light transitions.
- Includes an automatic signal retransmission function that extends the effective control distance by relaying commands to other controllers within range.
- Equipped with a configurable "Do Not Disturb" mode to ensure the lights remain off after a power recovery, preventing accidental activation.
Smart Integration
When paired with a compatible 2.4GHz Gateway, the MLR1-MINI supports advanced control via the Tuya Smart app and enables seamless integration with popular voice assistants, including Amazon Alexa and Google Assistant, for convenient hands-free operation and remote management.
Key Features
- Features standard DC male and female connectors for quick, tool-free installation between the power supply and LED strip.
- Delivers high-precision dimming with 4096 levels (0.1% to 100%) utilizing a logarithmic curve for exceptionally smooth light transitions.
- Includes an automatic signal retransmission function that extends the effective control distance by relaying commands to other controllers within range.
- Equipped with a configurable "Do Not Disturb" mode to ensure the lights remain off after a power recovery, preventing accidental activation.
Smart Integration
When paired with a compatible 2.4GHz Gateway, the MLR1-MINI supports advanced control via the Tuya Smart app and enables seamless integration with popular voice assistants, including Amazon Alexa and Google Assistant, for convenient hands-free operation and remote management.
Connectors: DC Male & Female (5.5*2.1mm)
Control Distance: 30m
Control Signal: 2.4GHz RF
Dimming Grayscale: 4096 Levels
Dimming Range: 0.1%-100%
IP Rate: IP20
Input Voltage: DC12V-24V
Model No.: MLR1
Output Current: Max 6A
Output Power: 72W (12V) / 144W (24V)
Output Type: Constant Voltage
Working Temperature: -10~40°C
Control Distance: 30m
Control Signal: 2.4GHz RF
Dimming Grayscale: 4096 Levels
Dimming Range: 0.1%-100%
IP Rate: IP20
Input Voltage: DC12V-24V
Model No.: MLR1
Output Current: Max 6A
Output Power: 72W (12V) / 144W (24V)
Output Type: Constant Voltage
Working Temperature: -10~40°C
-
