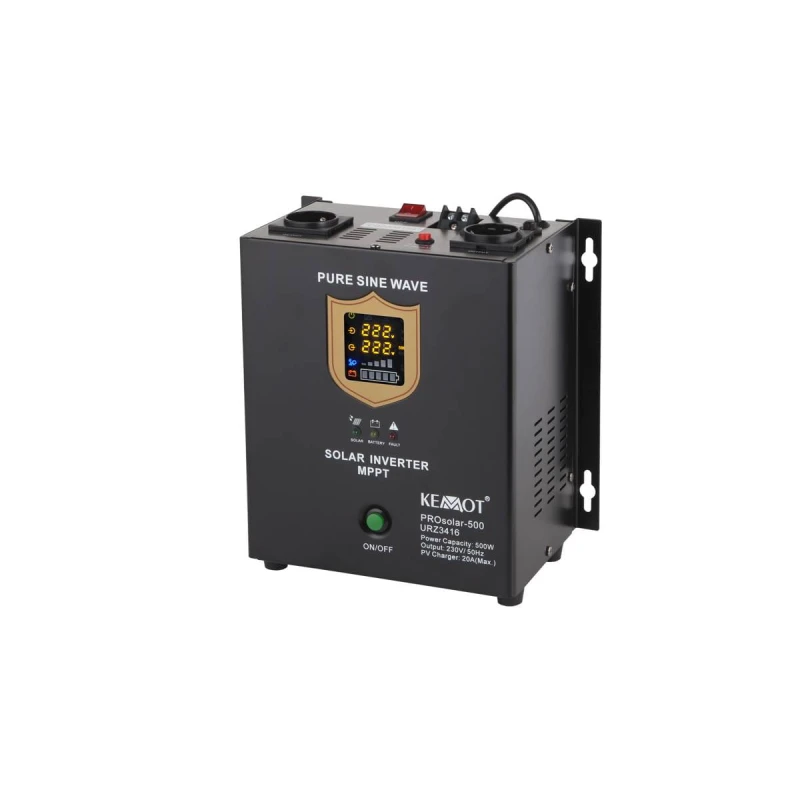

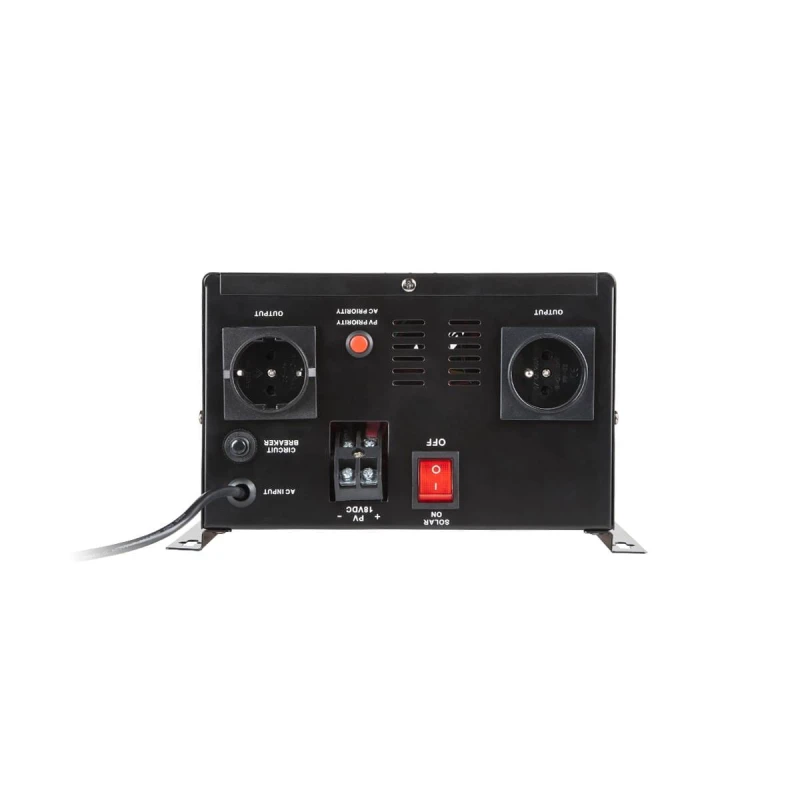

Sine wave inverter controller 500W 12-50V for solar panels to 12V battery

Model: URZ3416

Power: 500 W

Battery voltage: 12 V DC

Operating mode: PV (PV / PV priority) / AC (AC / grid supply priority)

PV Mode:

Input voltage range: 12 V DC - 50 V DC

Charging current: 20 A (depending on the photovoltaic cell used)

Conversion efficiency: 98%

AC Mode:

Input voltage range: 200V AC ~ 275V AC

Input frequency range: 45-65 Hz

Output voltage range: 215V AC ~ 245V AC

Input power factor (AC / DC): 98%

Efficiency: mains operation mode> = 96%

Charging current: 10 A.

Inverter output:

Inverter output voltage: 230 V ± 3%

Output frequency: 50 Hz / 60 Hz ± 0.3 Hz

Output power factor:> = 0.8

Waveform distortion: Resistive load = = 80%

Inverter overload: 110% -130% shutdown after 30s, 130% -150% shutdown after 3s

Short circuit: Automatic shutdown

Other

Ambient temperature 0 ~ 40 ° C

Air humidity 10% ~ 90%

Sound level =
