USB charger GaN USB-C port 30W black PD PPS

SKU:75735-GBY
Manufacturer:Goobay

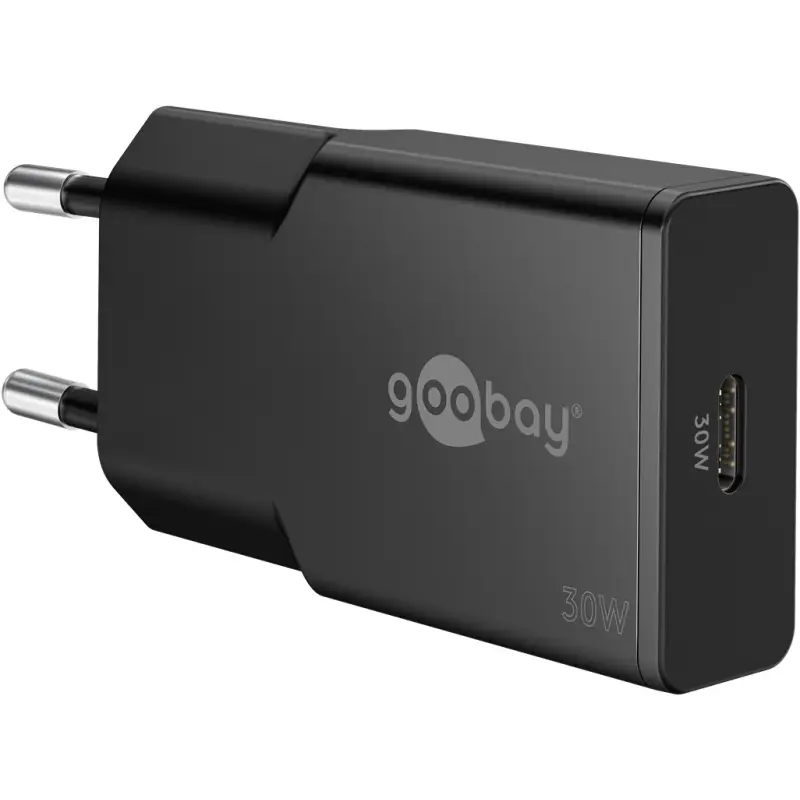

New USB charger GaN USB-C port 30W black PD PPS
Image is for illustrative purposes only

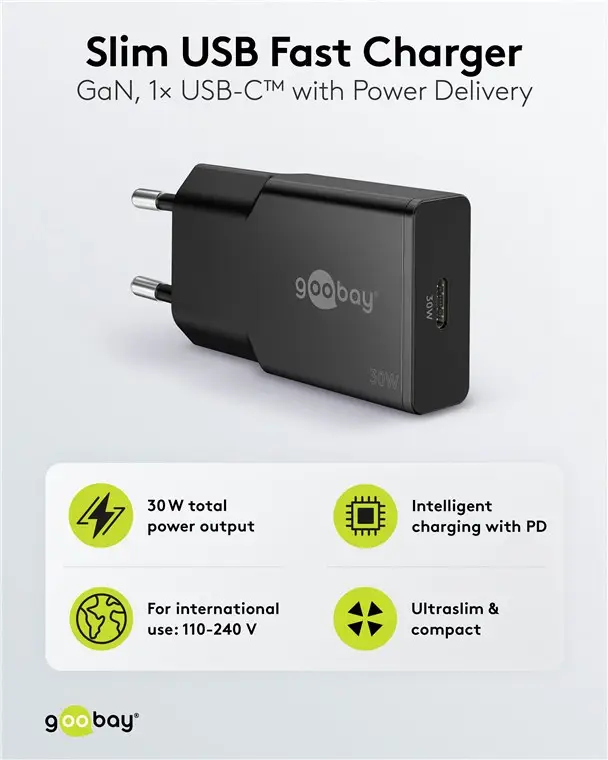

Goobay USB-C™ PD GaN Fast Charger Slim (30W, Black) is an ultra-thin, travel-friendly charger. It uses GaN technology to provide efficient and fast charging for compatible devices. Key Features

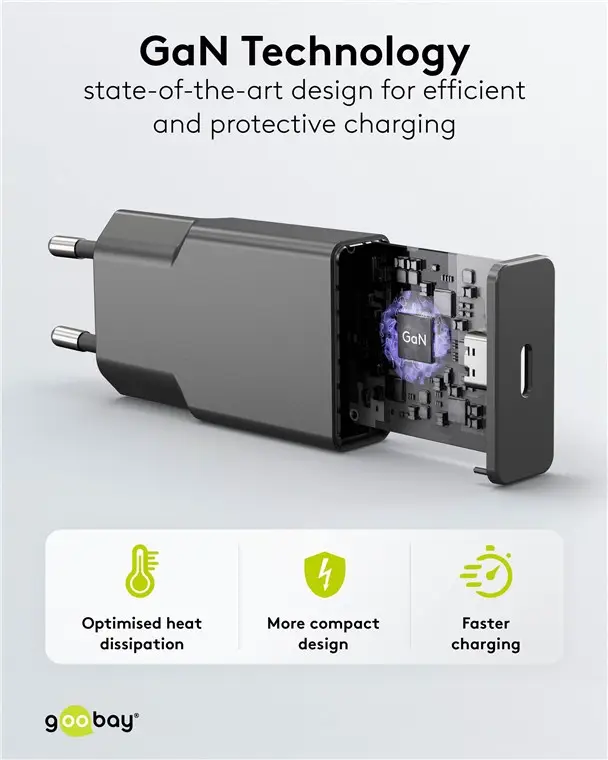

- Compact and slim design enabled by GaN technology.

- Supports Power Delivery (PD) and PPS standards for safe, dynamic charging.

- Provides a maximum output power of 30W.

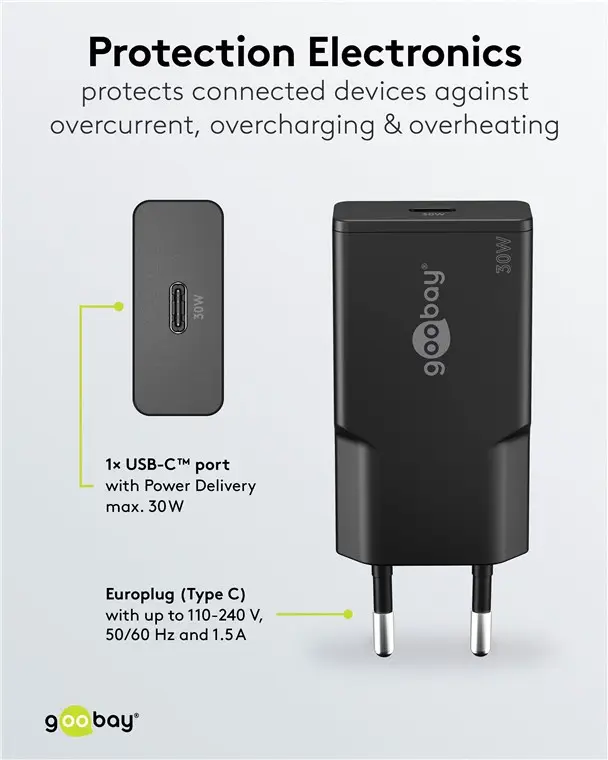

- Integrated protection electronics guard against overcurrent, overheating, and overcharging.

- Wide input voltage range (100-240V) suitable for worldwide use.

- Colour: Black.

Applications

Ideal for charging smartphones, tablets, headphones, and other small USB-C powered devices.
Article number: 75735
Average active efficiency: 85 %
Color: black

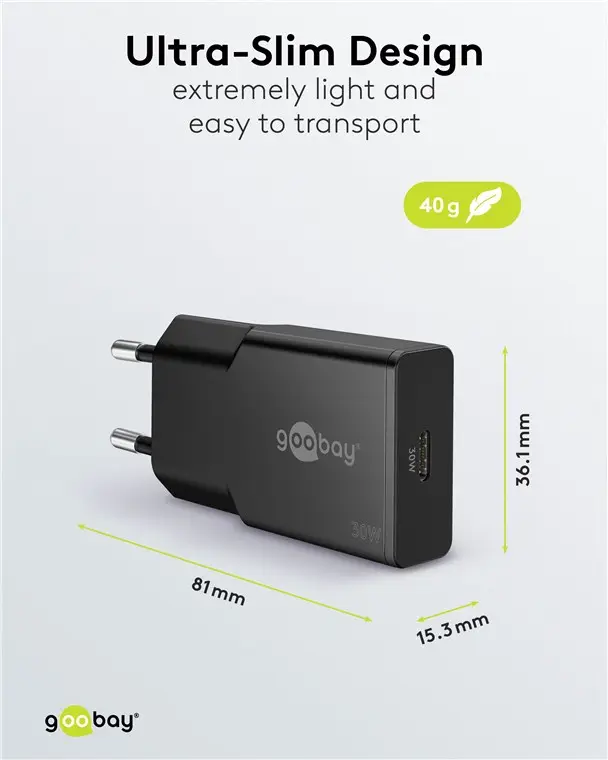

Depth: 15.3 mm
Efficiency at low load (10 %): 81.8 %
GaN Technology: yes
Input, Voltage Range: 100 - 240 (AC) V
Input, type: Europlug (Type C CEE 7/16)
Length: 81 mm
Markings: CE, WEEE, Haus, Quader, Indoor use
Material: ABS
No-load power consumption: 0.07 W
Output PD: 5.0 V, 3.0 A, 15.0 W max. or 9.0 V, 3.0 A, 27.0 W max. or 12.0 V, 2.5 A, 30.0 W max. or 15.0 V, 2.0 A, 30.0 W max. or 20.0 V, 1.5 A, 30.0 W max.
Output PPS: 3.3-11.0 V, 2.7 A, 29.7 W, 3.3-16.0 V, 1.9 A, 29.6 W
Output power: 30 W
Output, type: USB-C™-socket
Special feature: USB type C™ PD charger, Slim design
Weight: 40 g
Width: 36.1 mm
75735-GBY Datasheet EN868.12KB
Download
75735-GBY Manual EN412.79KB
Download
