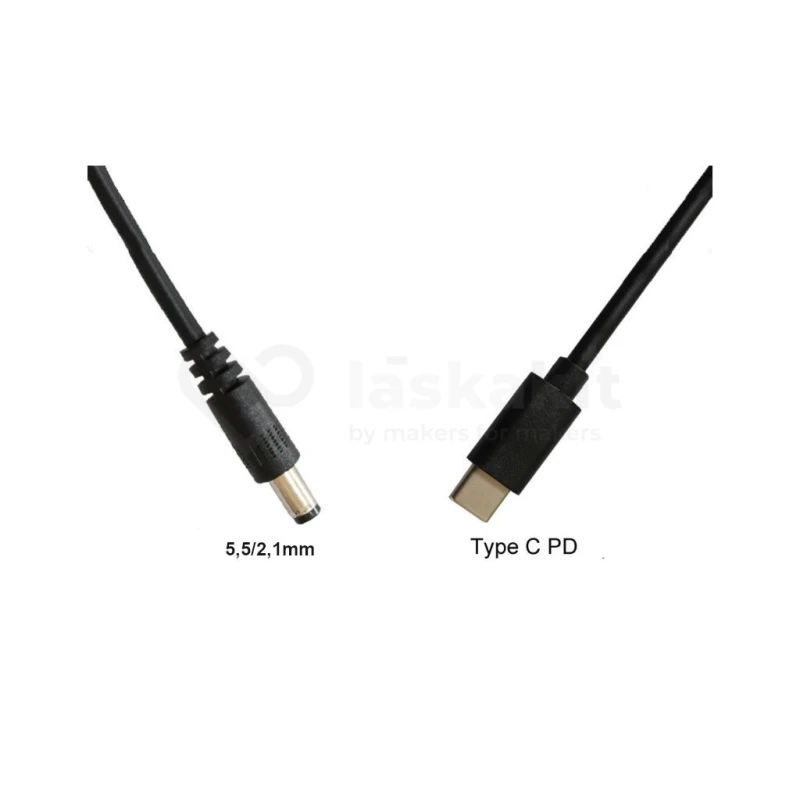

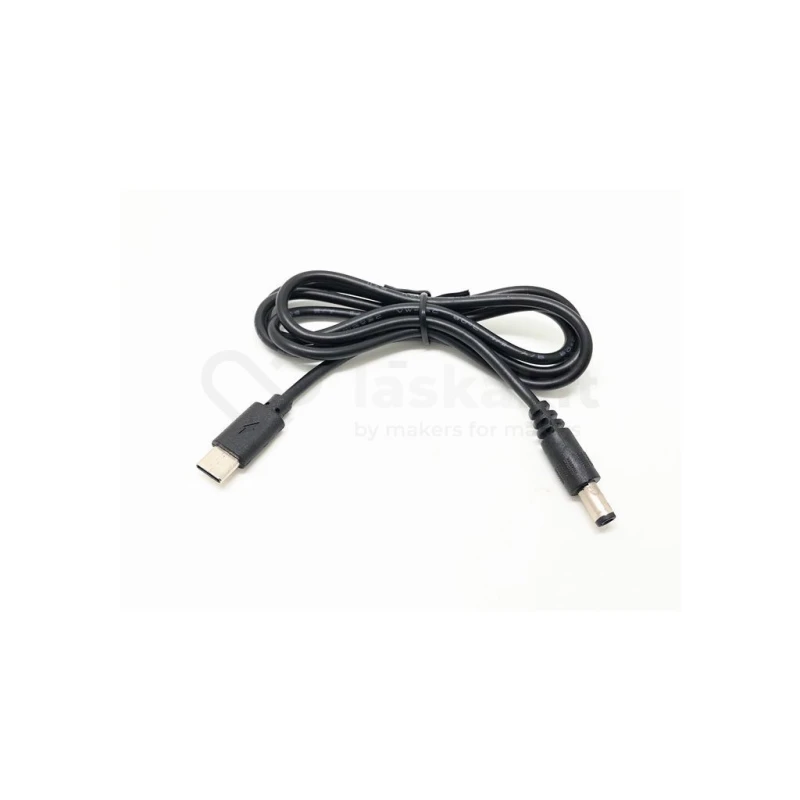

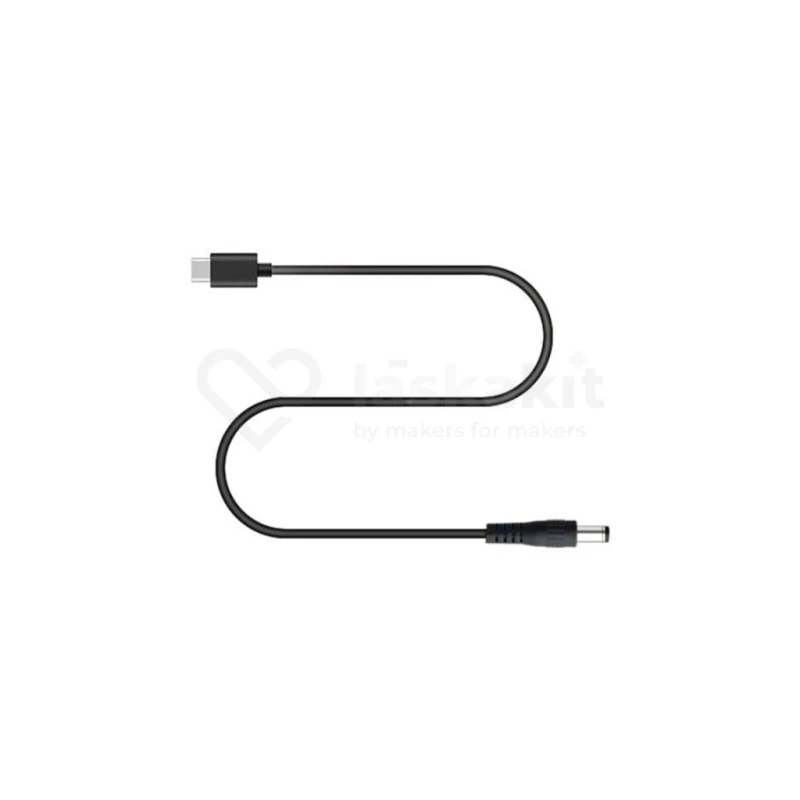

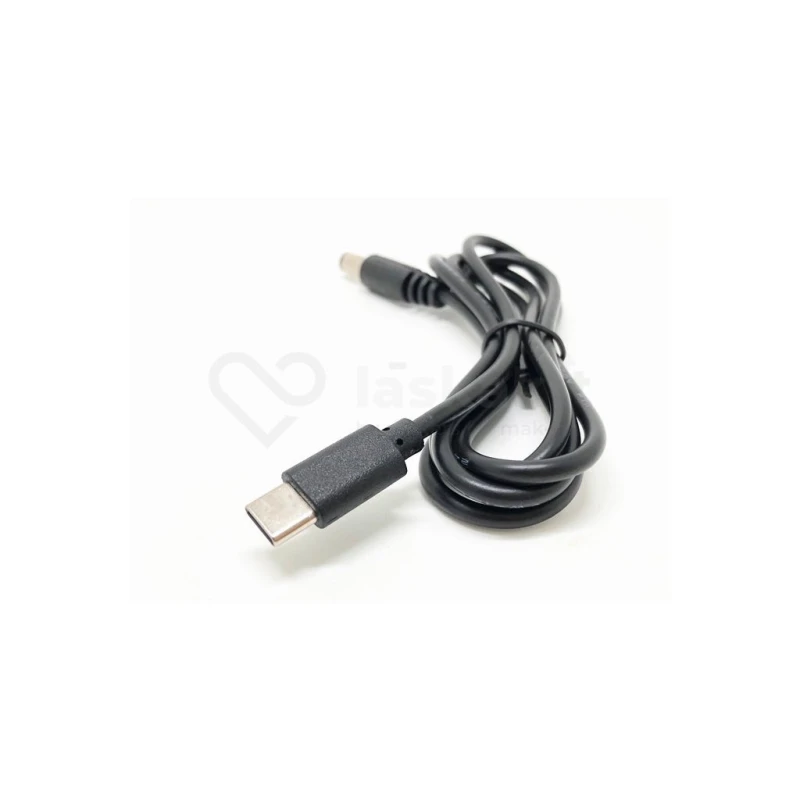

USB-C PD Trigger module 2.1/5.5 plug, 12V 0...3A, 1m cable

This USB-C Power Delivery (PD) trigger cable is designed to convert power from a standard USB-C PD adapter into a fixed 12V DC output. It integrates a PD chip to negotiate the required voltage, simplifying power solutions by utilizing a single USB-C source and replacing multiple traditional wall adapters.

Key Features
- Function: USB-C PD Trigger Module
- Input: USB-C Power Delivery source
- Output Voltage: Fixed 12V DC
- Output Connector: Standard DC Coaxial Plug (5.5x2.1mm)
- Current Capacity: Maximum output current of 3A
- Cable Length: 100 cm
- Technology: Contains an integrated PD trigger chip for voltage negotiation

Applications
This cable is suitable for powering various 12V devices equipped with a 5.5x2.1mm DC input jack. Specific compatibility includes popular development boards such as the Arduino Mega and Arduino UNO, allowing them to be powered directly from a USB-C PD source.
