USB-C / USB-A power connector set 65W 5A USB3.0 5-pin
SKU:LA217069
New
Image is for illustrative purposes only
This 65W power connector kit is designed for custom cable assembly, providing both USB-C and USB-A 3.0 interfaces for reliable power and data transmission. It is optimized for builders requiring access only to essential power and identification signals.
Key Features

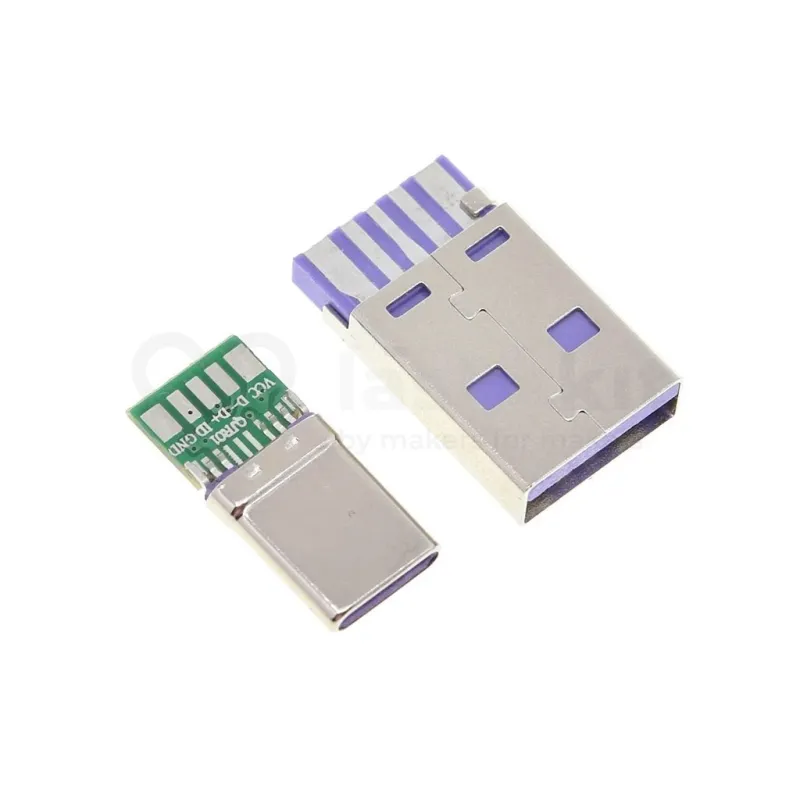

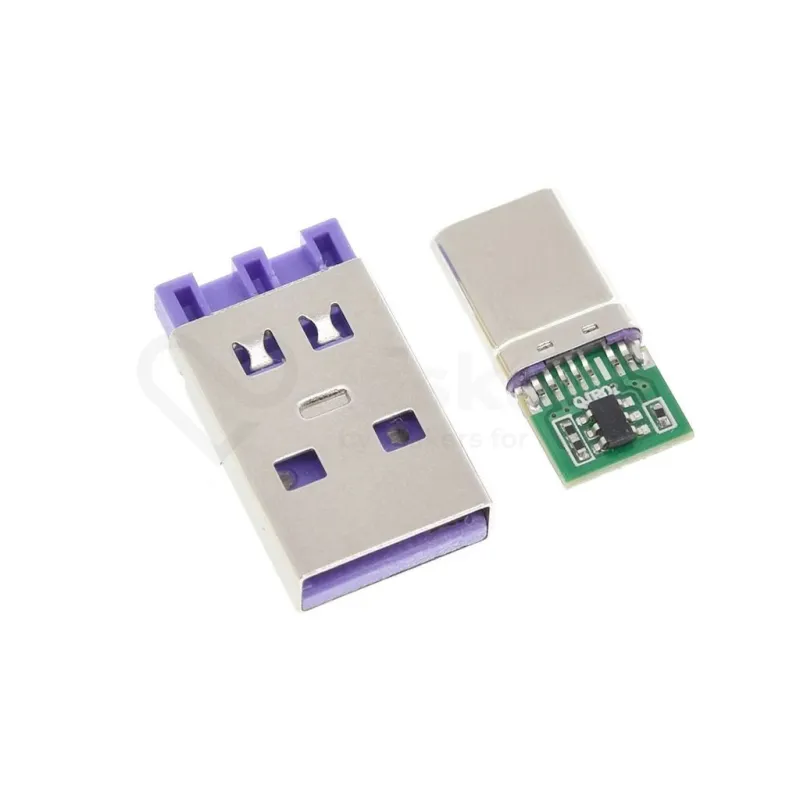

- Kit includes one USB-C connector and one USB-A 3.0 connector.
- Supports power delivery capabilities up to 65W.
- Specifically designed for cable mounting and assembly applications.

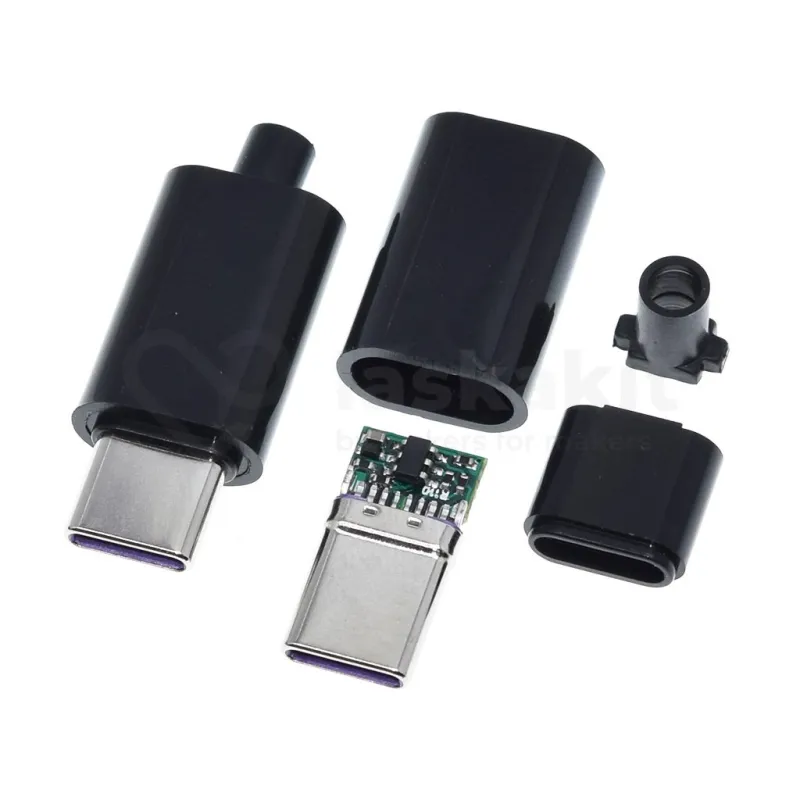

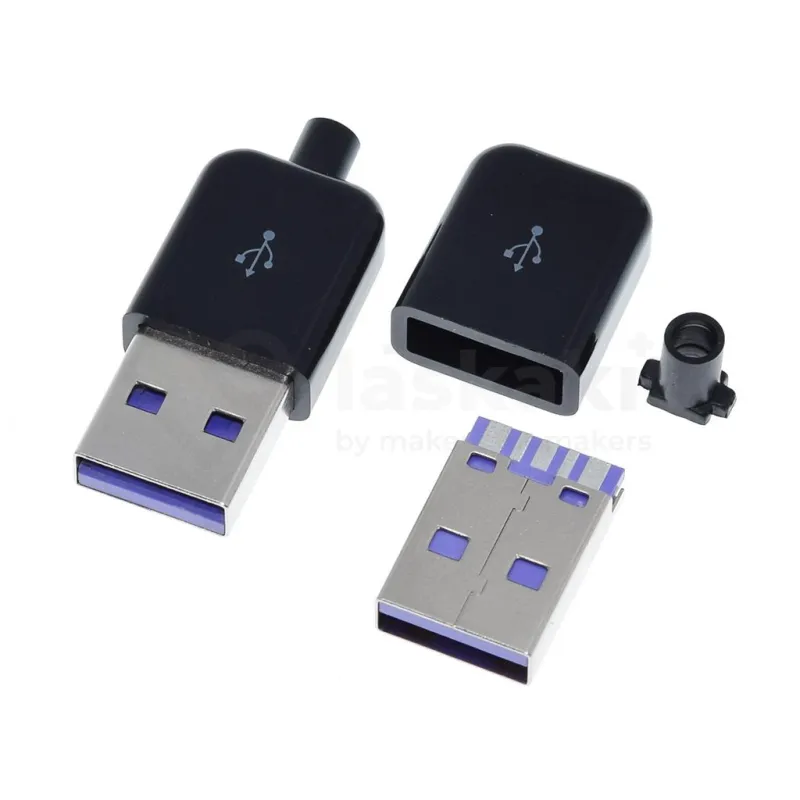

- Supplied complete with protective housings for both connectors.

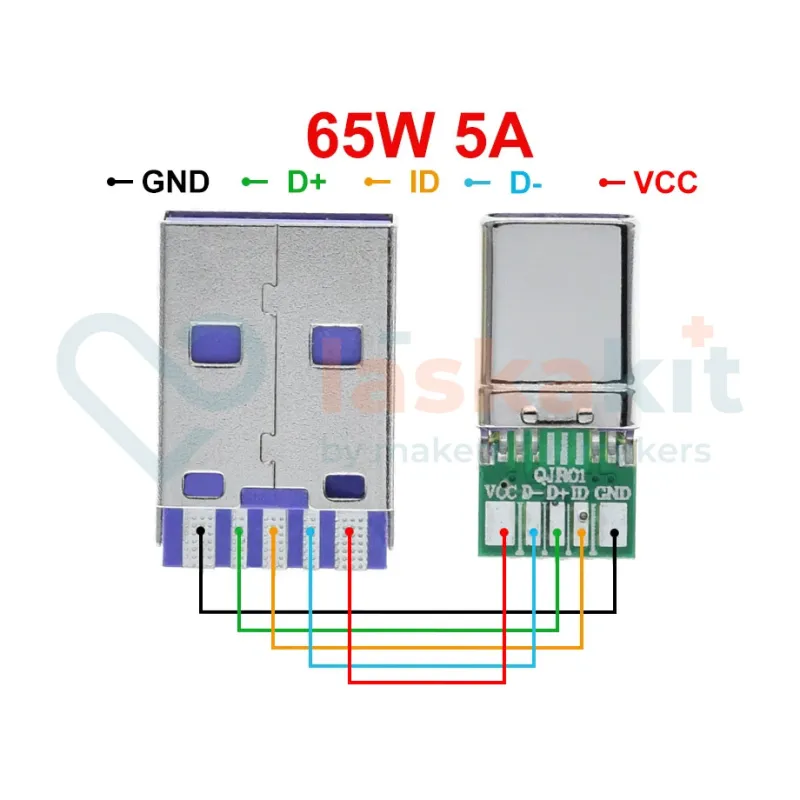

- Solder pads expose primary signals: Power (VCC, GND) and Data/Identification (D+, D-, ID).
- Note: Only the specified primary signals are routed to the soldering pads; other auxiliary signals are omitted.
Key Features
- Kit includes one USB-C connector and one USB-A 3.0 connector.
- Supports power delivery capabilities up to 65W.
- Specifically designed for cable mounting and assembly applications.
- Supplied complete with protective housings for both connectors.
- Solder pads expose primary signals: Power (VCC, GND) and Data/Identification (D+, D-, ID).
- Note: Only the specified primary signals are routed to the soldering pads; other auxiliary signals are omitted.
SKU: LA217069
Maximum Power: 65W
Connector Type 1: USB-C
Connector Type 2: USB-A 3.0
Output Signals: VCC, GND, D+, D-, ID
Package Contents: 1x USB-C 65W connector, 1x USB-A 3.0 65W connector, 1x USB-C housing, 1x USB-A housing
Maximum Power: 65W
Connector Type 1: USB-C
Connector Type 2: USB-A 3.0
Output Signals: VCC, GND, D+, D-, ID
Package Contents: 1x USB-C 65W connector, 1x USB-A 3.0 65W connector, 1x USB-C housing, 1x USB-A housing
-
