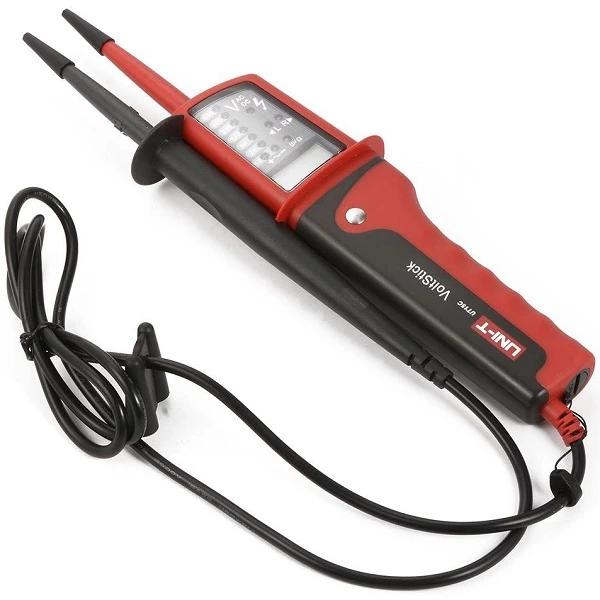

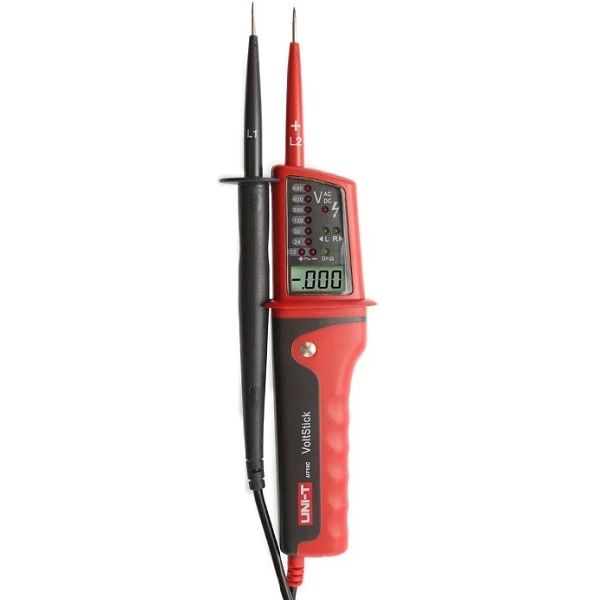

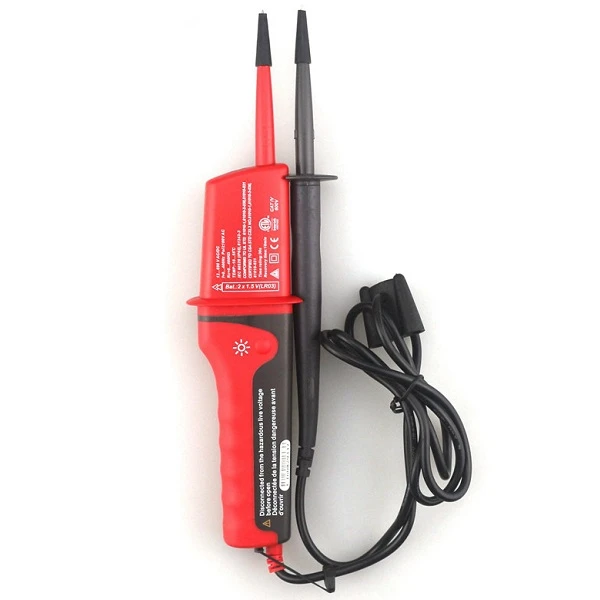

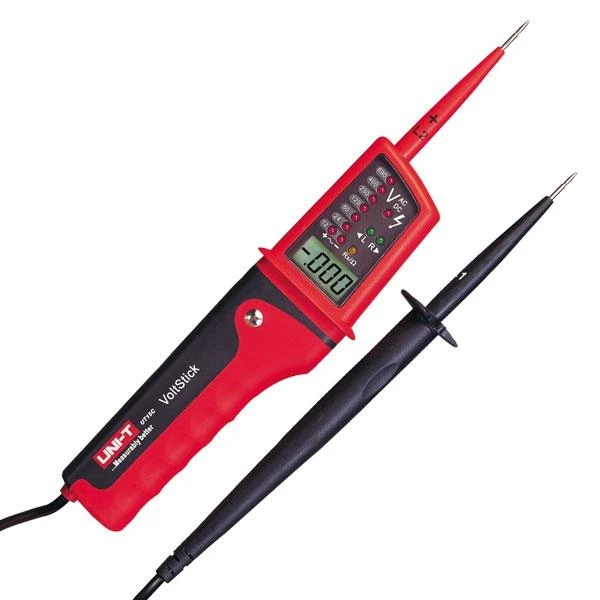

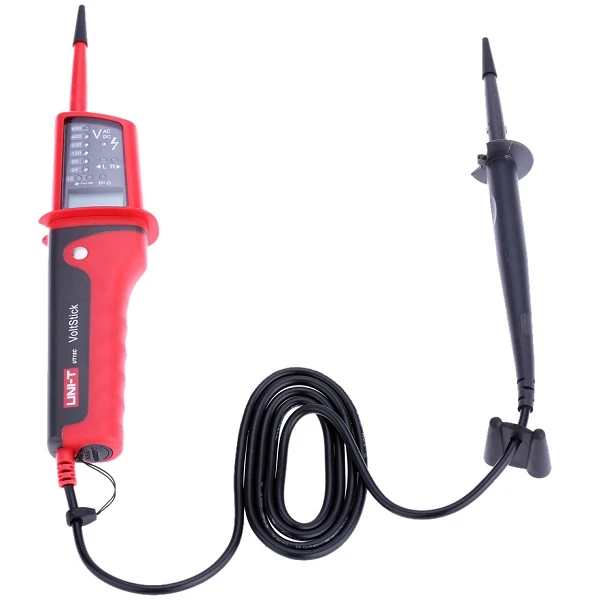

Non-Contact AC Voltage Detector 0~ 690 VAC

  • SKU: UT15C
  • Uni-T
Pealadu
Tallinn, Peterburi tee 90F
5 pcs
Peterburi tee Oomipood
Tallinn, Peterburi tee 90F
2 pcs
Järve keskuse Oomipood
Tallinn, Pärnu mnt. 238
2 pcs
Lõunakeskuse Oomipood
Tartu, Lääneringtee 39
3 pcs
Põhjakeskuse Oomipood
Rakvere, Haljala tee 4
1 pcs
Kaubamajaka Oomipood
Pärnu, Papiniidu 8
1 pcs
Pargi keskuse Oomipood
Jõhvi, Puru tee 1
2 pcs

UT15 Series test pen has the functions: AC/DC voltage measurement (include three-phase AC), phase position indication of three-phase AC, continuity test and single probe measurement (judge null wire or live wire). It can also solve the complex problems of electron, factory automation, electric power distribution and electromechanical device.

Specifications Range UT15C

LED AC/DC voltage indication (V) 12V 0~12V

24V 17V±2V

50V 35V±5V

120V 80V±15V

230V 165V±20V

400V 300V±30V

690V 510V±40V

Phase rotation test Operating Voltage: 0V~690V

Frequency: 50Hz~60Hz

Single lead (L2) voltage detection Operating Voltage: 0V~690V

Frequency: 50Hz~400Hz

Continuity  test Resistance: 0~100kΩ

Beeper and LED light Indicator

Polarity detection Positive & Negative

Features

Water-proof (IP65)

Auto range

Work light

Low battery indication Short circuit two leads, LED and beeper off when the bettery is low

LCD AC/DC voltage display 24V~690V ±(3%+5)

General Characteristics

Power 1.5V battery (R03) × 2

Display UT15C- 23mm × 12mm

Product color Red and grey

Product net weight 210g

Product size (W x H x D) 275mm × 51mm × 30mm

Standard accessories Batteries

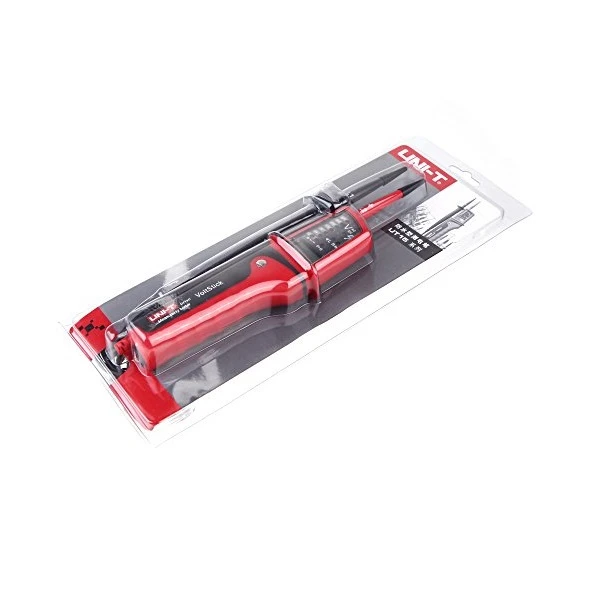

Standard individual packing Blister, English manual

Standard quantity per carton 30 pcs

Standard carton measurement 440mm × 395mm × 455mm (0.079CBM Per standard carton)

Standard carton gross weight 17kg
