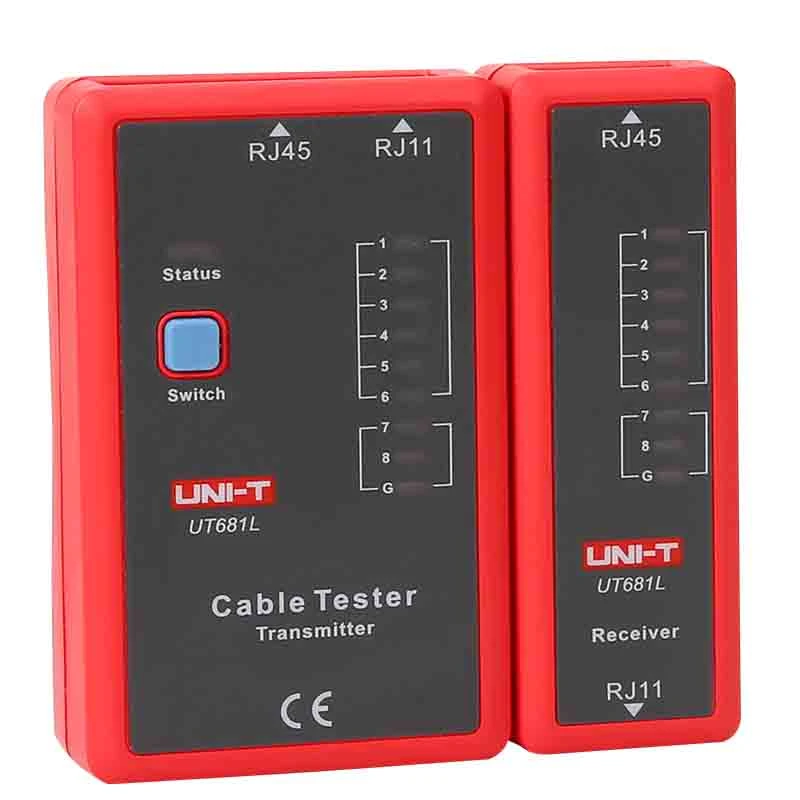

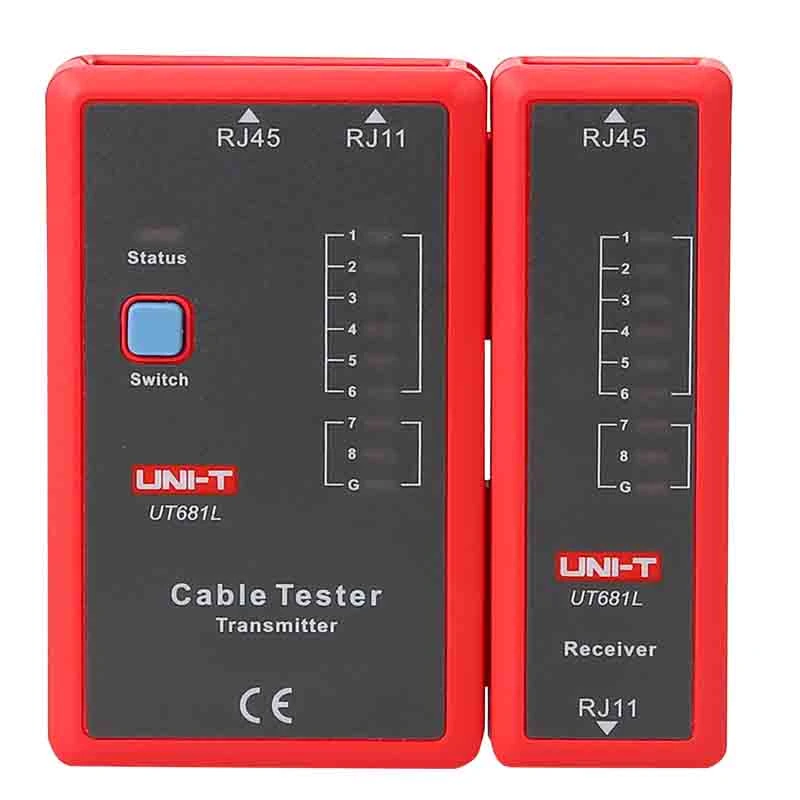

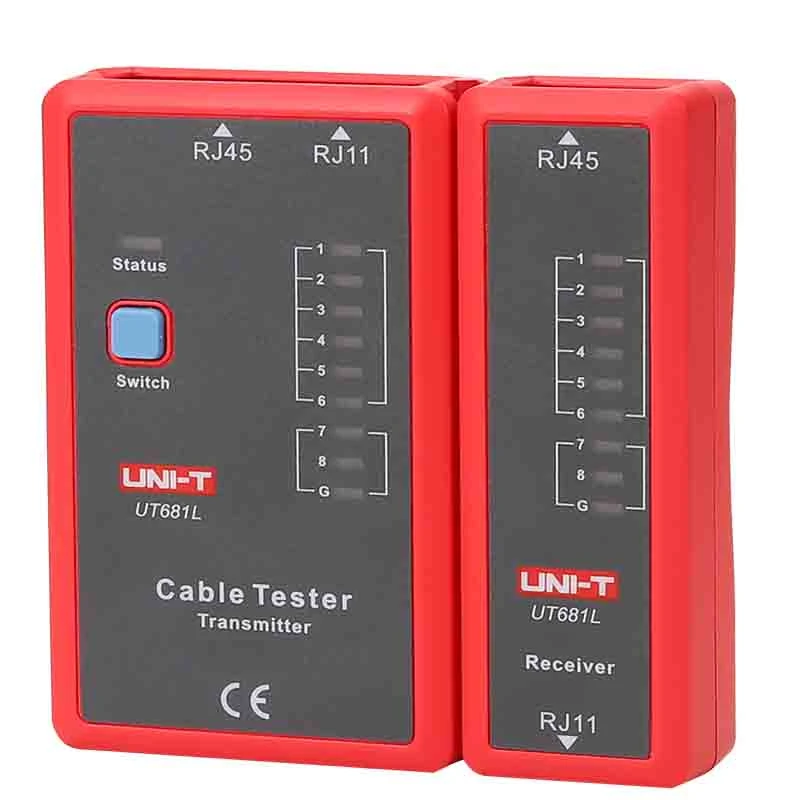

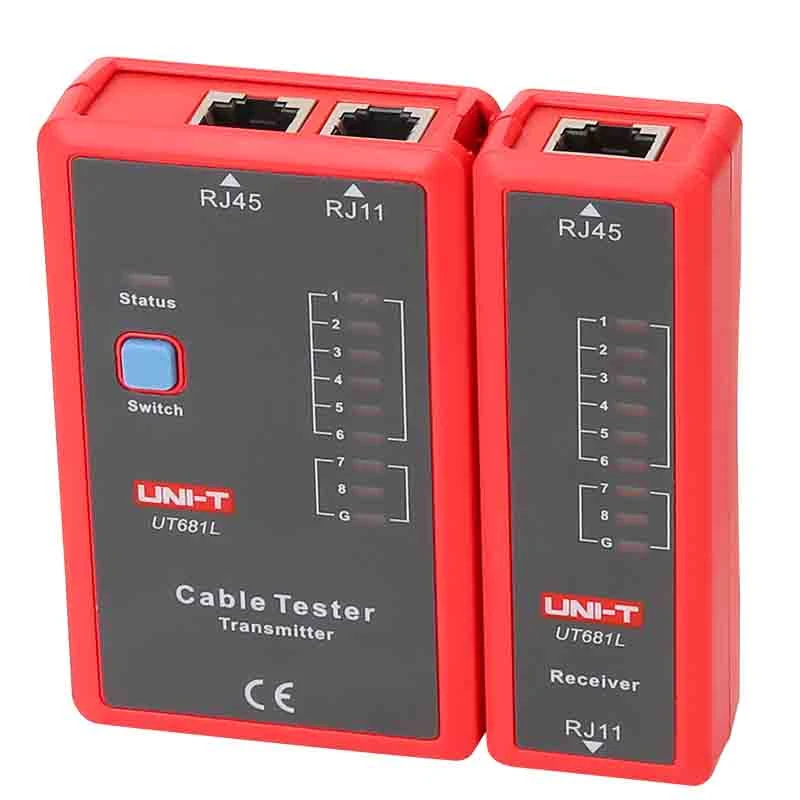

RJ45 LAN Cable Tester
SKU:UT681L
Manufacturer:Uni-T
Image is for illustrative purposes only
Cable testers can be used to fast check if Ethernet/telephone/BNC/HDMI cables are conducting, short-circuit, crossed or open-circuit. They are ideal tools for technicians to install, maintain and inspect week current system circuit.
Specifications Range UT681L Description
Test function
To test for: RJ45/RJ11 √
Fast test mode √ LED1~LED8, LED_G
Slow test mode √ LED1~LED8, LED_G
To test for the case of short circuit, crossover, open circuit, etc. √
Ethernet cable: shielded/ unshielded test √
Manual shutdown function √
Auto shutdown function √ No operation within 10 minutes, the device will shut down automatically
Single key operation √
Power supply: 9V battery √
Low battery detection √ Less than 7.2V
Application environment
Operating temperature: 0~40℃ √
Storage temperature: -10~50℃ √
Operating humidity: 20~80%RH √
Storage humidity: 10~90%RH √
Altitude: ≤2000 meters √
Safety standard CE EN61326-1: 2013; EN61326-2-2: 2013 √
General Characterisitics
Product receiver: 51g
Product size Transmitter: 102mm x 62mm x 28mm; receiver: 102mm x 37mm x 28mm
Standard accessories 9V battery
Standard individual packing Gift box, English manual
Standard quantity per carton 40pcs
Standard carton measurement 455mm x 410mm x 225mm
Standard carton gross weight 6.4kg
Test function
To test for: RJ45/RJ11 √
Fast test mode √ LED1~LED8, LED_G
Slow test mode √ LED1~LED8, LED_G
To test for the case of short circuit, crossover, open circuit, etc. √
Ethernet cable: shielded/ unshielded test √
Manual shutdown function √
Auto shutdown function √ No operation within 10 minutes, the device will shut down automatically
Single key operation √
Power supply: 9V battery √
Low battery detection √ Less than 7.2V
Application environment
Operating temperature: 0~40℃ √
Storage temperature: -10~50℃ √
Operating humidity: 20~80%RH √
Storage humidity: 10~90%RH √
Altitude: ≤2000 meters √
Safety standard CE EN61326-1: 2013; EN61326-2-2: 2013 √
General Characterisitics
Product receiver: 51g
Product size Transmitter: 102mm x 62mm x 28mm; receiver: 102mm x 37mm x 28mm
Standard accessories 9V battery
Standard individual packing Gift box, English manual
Standard quantity per carton 40pcs
Standard carton measurement 455mm x 410mm x 225mm
Standard carton gross weight 6.4kg
-
