Cable finder with generator and RJ45 patch cable tester

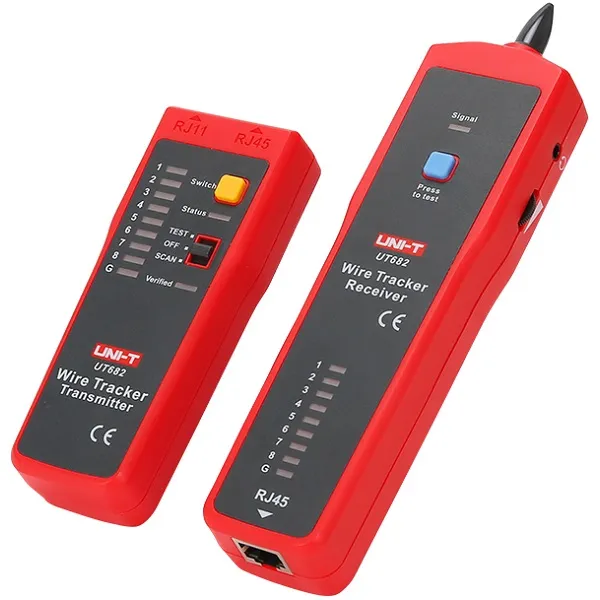

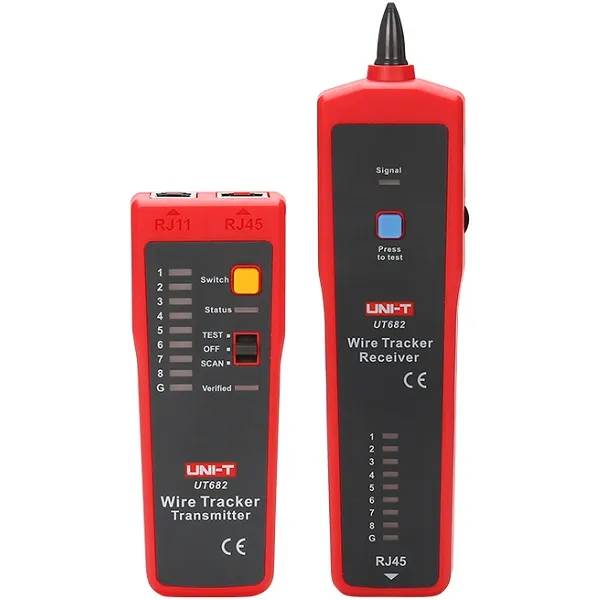

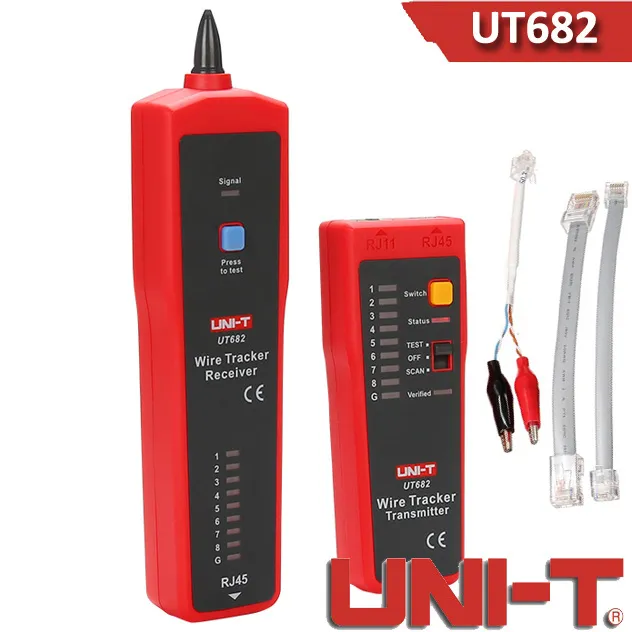

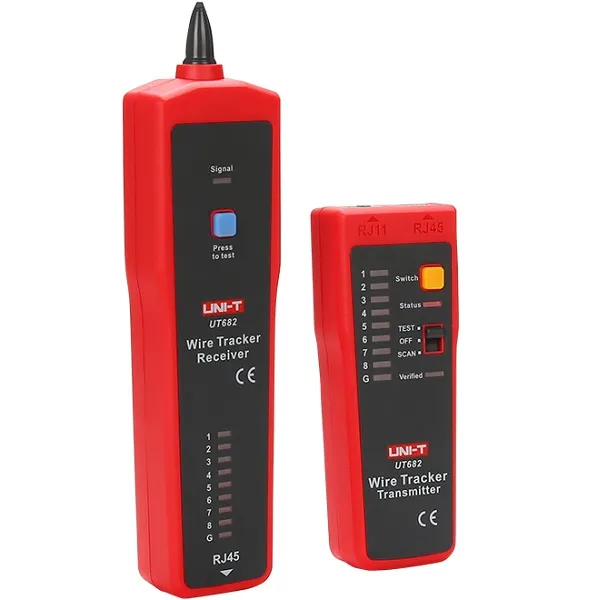

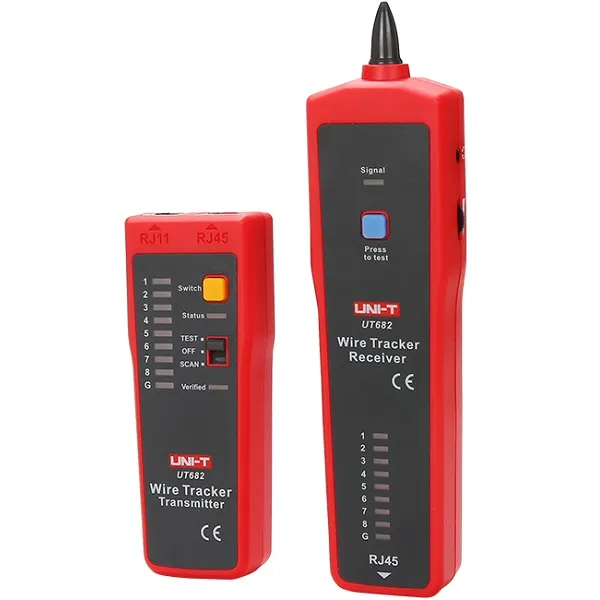

Wire tracker consists of transmitter and receiver. It has functions like telephone wire tracking, network wire tracking, cable wire tracking, network wire check, etc. and it has fast and accurate measurement. UT682 is an ideal tool for personnel to install and maintenance low current system such as communication wires and integrated circuits.
Telephone Line Tracking Function
A. Connect the telephone line head into the transmitter’s RJ11 interface;
B. Press the transmitter functional select switch to the “TEST” positin. Line tracking indicator “Status” will flask, which indicates that the transmitter works properly;
C. Hold down the receiver “Press to test” button and look for the target cable with receiver probe.
D. During the testing, light press “Switch” button to switch between single and double audio test pattern.
Network Line Tracking Function
A: The network line with a crystal head into the transmitter RJ45 interface;
B. Press the transmitter functional select switch to the “TEST” position, Line tracking indicator “Status” will flash, which indicates that the transmitter works properly;
C. Hold down the receiver “Press to test” button and look for the target cable with receiver probe.
D. During the testing, light press “Switch” button to switch between single and double audio test pattern.

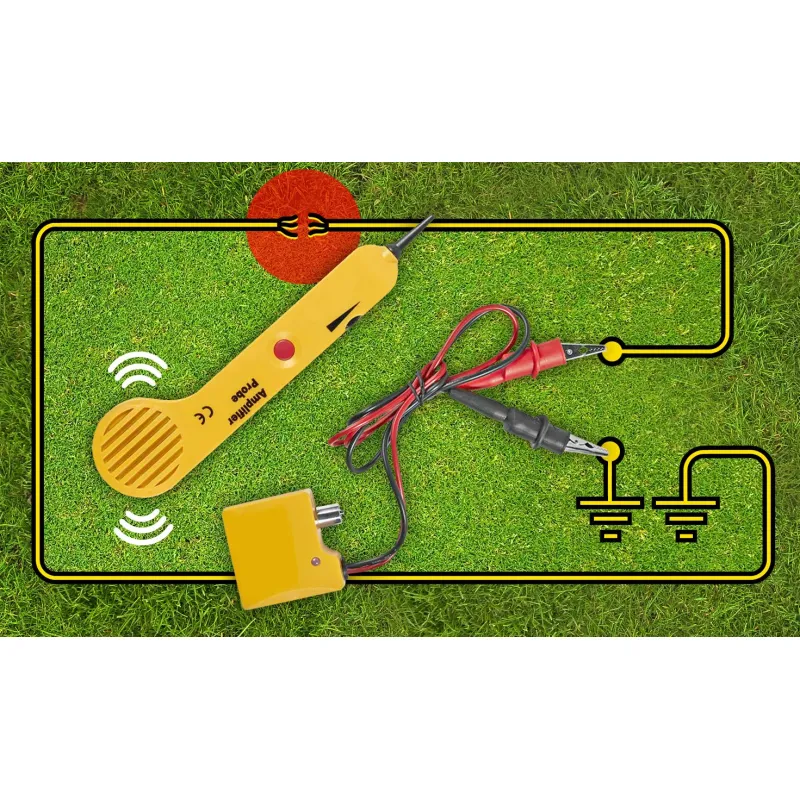

Power Cable Line Tracking Function (Power cable must not be powered)
A. Connecting the transmitter with metal cable using alligator clip adapter wiring;
B. Adjust the transmitter functional select switch to the “TEST” position, line tracking indicator “Status” will flash, which indicates that the transmitter works properly;
C. Hold down the receiver “Press to test” button and look for the target cable with receiver probe.
D. During the testing, light press “Switch” button to switch between single and double audio test pattern.
-
