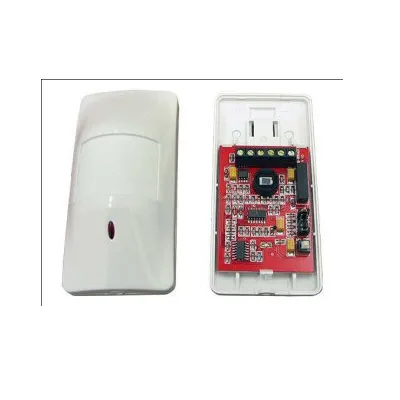

Pet-Immune PIR Motion Detector

SKU:LH926A
New Pet-Immune PIR Motion Detector
Image is for illustrative purposes only
The Longhorn LH926A is a professional wired passive infrared (PIR) motion detector designed for reliable indoor security monitoring. It combines high-sensitivity detection with advanced filtering to ensure accurate performance in residential and commercial environments.

Key Features
- Features integrated pet immunity for animals weighing up to 25 kg, effectively reducing false alarms caused by domestic pets.
- Provides a wide 110° field of view with a detection range of up to 12 meters.
- Equipped with automatic temperature compensation technology to maintain consistent sensitivity across varying indoor conditions.
- Shielded against radio frequency interference (RFI) to ensure stable operation near electronic devices.
- Constructed from durable ABS plastic and includes a built-in tamper switch to alert against unauthorized housing removal.
- Offers flexible system integration with selectable Normally Closed (NC) or Normally Open (NO) alarm outputs.

Applications
Optimized for indoor use, the LH926A is ideal for securing homes, offices, and retail spaces. Its pet-friendly design makes it particularly suitable for premises where animals are present, ensuring robust security without the inconvenience of frequent false triggers.
Operating Voltage: DC 9-16V
Current Consumption: ≤20mA (at 12V DC)
Detection Range: 12m
Detection Angle: 110°
Pet Immunity: up to 25kg
Installation Height: 2.2m
Alarm Output: NC/NO (28VDC, 80mA)
Tamper Switch: NC (28VDC, 100mA max)
Operating Temperature: -10°C ... +50°C
Dimensions: 107 x 52 x 36.5 mm
Housing Material: ABS plastic
Mounting Type: Wall-mounted
