SKU:PNI-CEL130
Manufacturer:
PNI
Image is for illustrative purposes only

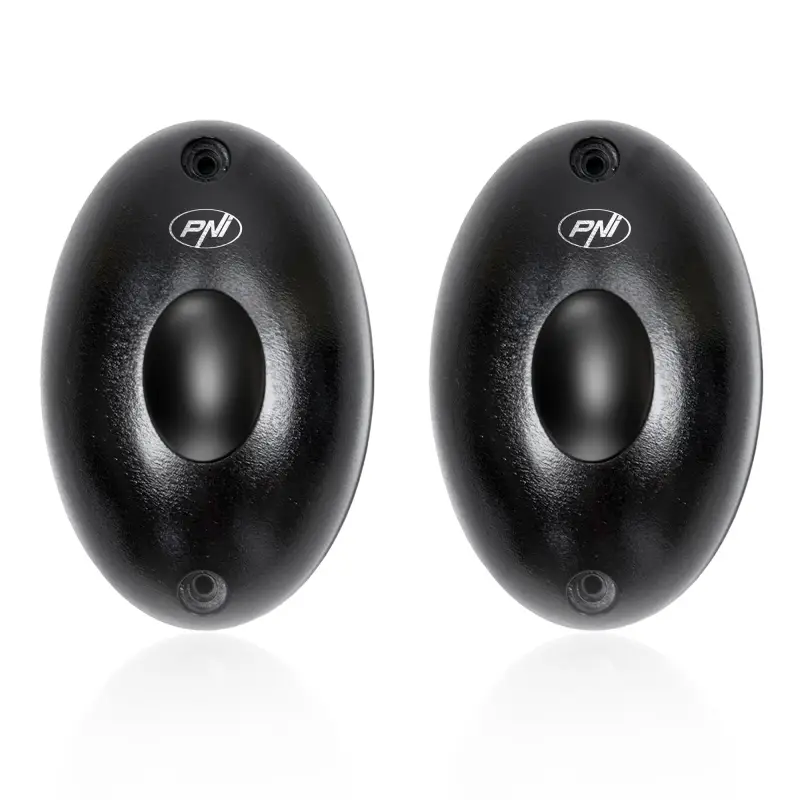

The PNI CEL130 is a transmitter and receiver photocell pair for gate automation. Interruption of the infrared beam can be used to detect an obstacle in the access path. The manufacturer specifies a maximum distance of 10 m between the transmitter and receiver.
Both units operate from a 12–24 V AC/DC supply. Current consumption is up to 30 mA for the transmitter and up to 15 mA for the receiver. The receiver has a 36 V / 1 A NO/NC relay output, and the enclosure is rated IP55. The set includes two photocells and installation accessories.
Set: transmitter and receiver
Supply voltage: 12–24 V AC/DC
Transmitter current consumption: ≤30 mA
Receiver current consumption: ≤15 mA
Maximum range: 10 m
Infrared frequency: 1.95 kHz
Relay output: 36 V / 1 A, NO/NC
Protection rating: IP55
Operating temperature: −26 to 80 °C
Dimensions: 75 × 50 × 30 mm
Colour: black

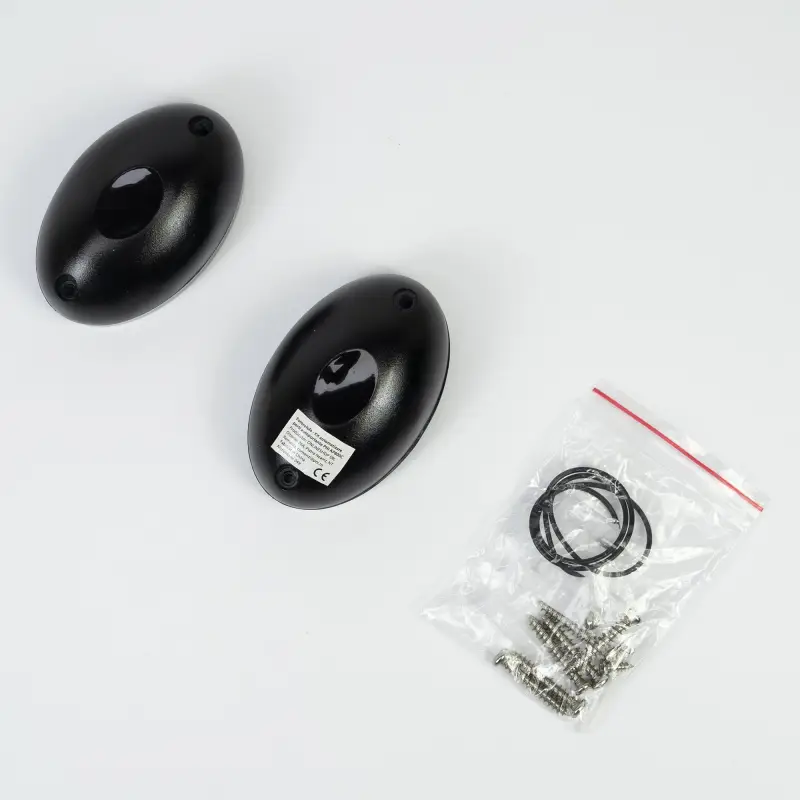

Set includes: 2 photocells and installation accessories
Supply voltage: 12–24 V AC/DC
Transmitter current consumption: ≤30 mA
Receiver current consumption: ≤15 mA
Maximum range: 10 m
Infrared frequency: 1.95 kHz
Relay output: 36 V / 1 A, NO/NC
Protection rating: IP55
Operating temperature: −26 to 80 °C
Dimensions: 75 × 50 × 30 mm
Colour: black
Set includes: 2 photocells and installation accessories
-
