Okystar Single 12V DC PWM 2-3 wire fan temperature control speed regulator noise reduction module
SKU:OKY3065-15
Manufacturer:Okystar

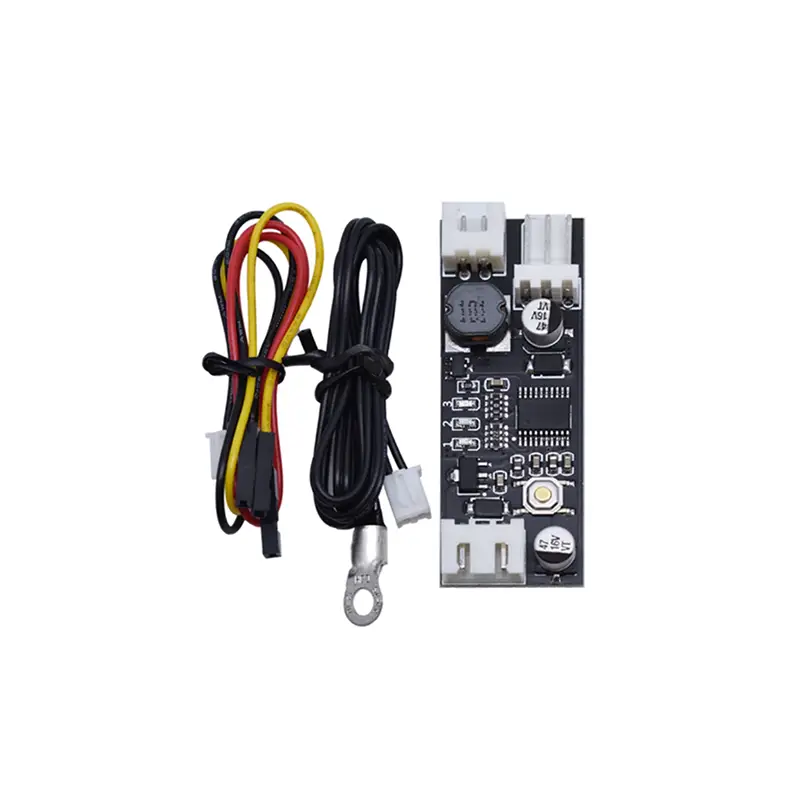

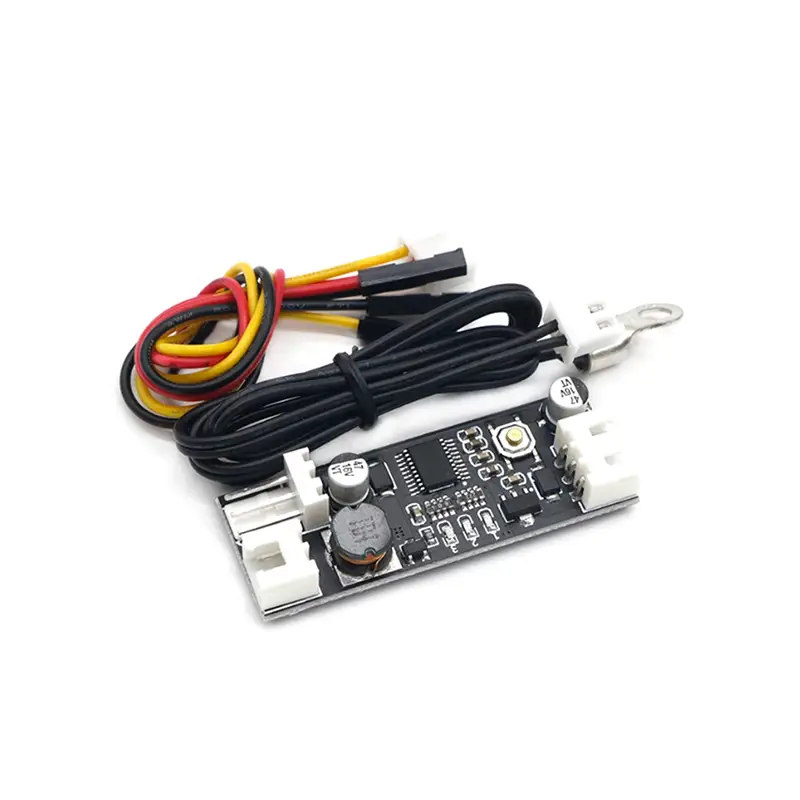

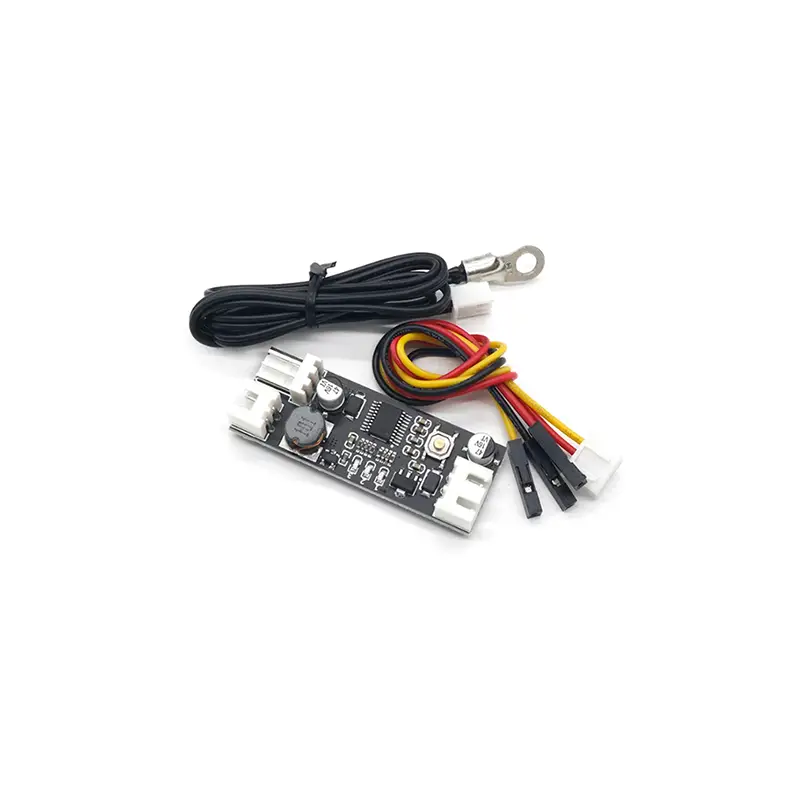

Image is for illustrative purposes only
The Okystar OKY3065-15 is a PWM module designed for temperature-based speed control of 12V DC fans. It automatically adjusts fan speed to provide efficient cooling while minimizing operational noise.
Key Features
- Controls both 2-wire and 3-wire 12V DC fans using PWM signals.
- Includes integrated reverse connection protection on the input for enhanced safety.
- Factory default settings provide a low-speed level of 20%, an acceleration start temperature of 30°C, and a 5°C acceleration width.
- The fan output does not shut off, ensuring continuous operation at a minimum speed.
Key Features
- Controls both 2-wire and 3-wire 12V DC fans using PWM signals.
- Includes integrated reverse connection protection on the input for enhanced safety.
- Factory default settings provide a low-speed level of 20%, an acceleration start temperature of 30°C, and a 5°C acceleration width.
- The fan output does not shut off, ensuring continuous operation at a minimum speed.
Board size: 48mm*18mm*9mm
Operating voltage: recommended DC12V
Operating temperature: -20℃ to 60℃
PWM output range: 5%-100%
Temperature probe heat resistance: ring probe 110C
Temperature probe interface: XH-2P terminal block (pin pitch 2.54mm)
Fan current: within 0.8A (no overload)
Fan interface: KF2510-3P terminal block (pin pitch 2.54mm)
Input reverse connection protection: Yes
Weight: 90g
Operating voltage: recommended DC12V
Operating temperature: -20℃ to 60℃
PWM output range: 5%-100%
Temperature probe heat resistance: ring probe 110C
Temperature probe interface: XH-2P terminal block (pin pitch 2.54mm)
Fan current: within 0.8A (no overload)
Fan interface: KF2510-3P terminal block (pin pitch 2.54mm)
Input reverse connection protection: Yes
Weight: 90g
