Wire; SiF; 1x0.25mm2; stranded; Cu; LSZH,silicone; red; -60÷180°C
SKU:SIF0.25-R

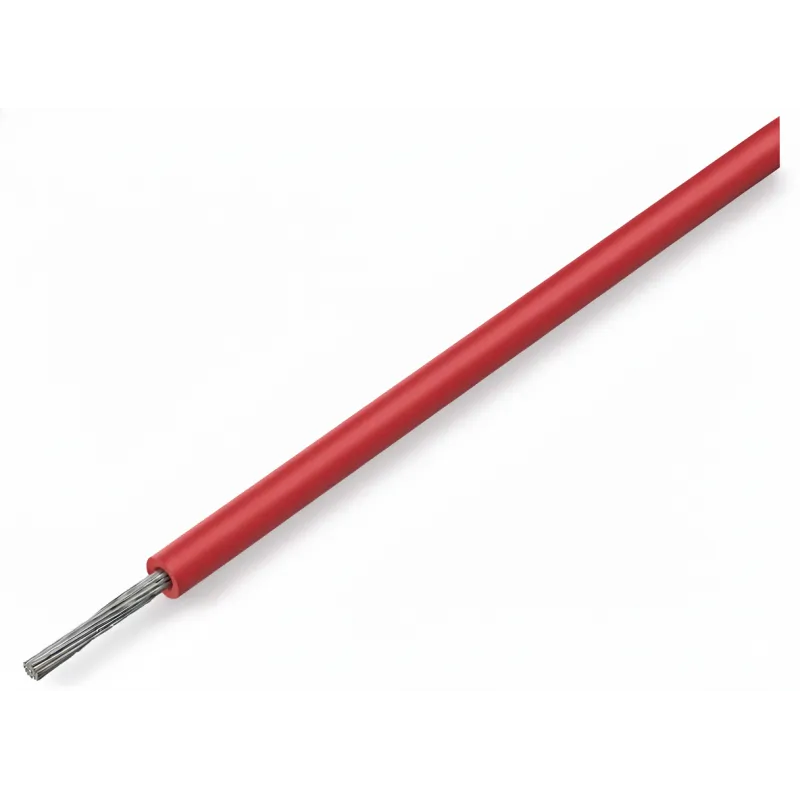

Image is for illustrative purposes only
This HELUKABEL SiF single-core wire is designed for reliable flexible connection and fixed installation in environments subject to extreme temperature fluctuations.
Its silicone insulation provides high heat resistance and excellent chemical stability.
Key Features
- Insulation: Heat-resistant silicone (SiF)
- Conductor: Fine-wire stranded tinned copper (Class 5)
- Halogen-free (LSZH) construction, ensuring low smoke and minimal corrosive gas emission during combustion
- Nominal Voltage: 300/500 V
- Operating Temperature Range (Fixed Installation): -60°C to +180°C
- Highly resistant to ozone, oxygen, alcohols, diluted acids, alkalis, salt solutions, oils, and fats.
Applications
Ideal for demanding industrial environments requiring stable performance across wide temperature ranges, including metallurgy, steel production, rolling mills, foundries, cement, glass, and ceramics industries. Also suitable for specialized applications in aviation and shipbuilding.
Its silicone insulation provides high heat resistance and excellent chemical stability.
Key Features
- Insulation: Heat-resistant silicone (SiF)
- Conductor: Fine-wire stranded tinned copper (Class 5)
- Halogen-free (LSZH) construction, ensuring low smoke and minimal corrosive gas emission during combustion
- Nominal Voltage: 300/500 V
- Operating Temperature Range (Fixed Installation): -60°C to +180°C
- Highly resistant to ozone, oxygen, alcohols, diluted acids, alkalis, salt solutions, oils, and fats.
Applications
Ideal for demanding industrial environments requiring stable performance across wide temperature ranges, including metallurgy, steel production, rolling mills, foundries, cement, glass, and ceramics industries. Also suitable for specialized applications in aviation and shipbuilding.
Breakdown Voltage: 5000 V
Conductor Cross-section: 0.25 mm2
Conductor Material: Tinned Copper (Cu, tinned)
Conductor Structure: Finely stranded (Class 5, approx. 8 x 0.2 mm)
Flexibility Class: 5 (acc. to DIN VDE 0295 / IEC 60228)
Insulation Colour: Red
Insulation Material: Silicone, LSZH
Nominal Voltage (AC U0/U): 300/500 V
Number of Cores: 1
Outer Diameter (approx.): 1.6 mm
Permissible Conductor Temp.: +180°C
Properties: Halogen-free, Flame-retardant
Temperature Range (Fixed): -60°C to +180°C
Temperature Range (Flexible): -25°C to +180°C
Test Voltage: 2000 V
Conductor Cross-section: 0.25 mm2
Conductor Material: Tinned Copper (Cu, tinned)
Conductor Structure: Finely stranded (Class 5, approx. 8 x 0.2 mm)
Flexibility Class: 5 (acc. to DIN VDE 0295 / IEC 60228)
Insulation Colour: Red
Insulation Material: Silicone, LSZH
Nominal Voltage (AC U0/U): 300/500 V
Number of Cores: 1
Outer Diameter (approx.): 1.6 mm
Permissible Conductor Temp.: +180°C
Properties: Halogen-free, Flame-retardant
Temperature Range (Fixed): -60°C to +180°C
Temperature Range (Flexible): -25°C to +180°C
Test Voltage: 2000 V
-
SIF0.25-B0.50 €Customer price0.4750 €-5% -
SIF0.25-Y0.50 €Customer price0.4750 €-5%
