SKU:8401C

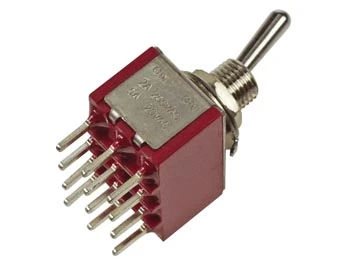

Image is for illustrative purposes only
Specifications

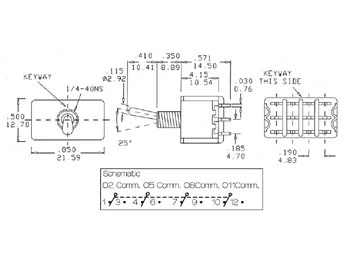

switching position: 2-3, 5-6, 8-9, 11-12: ONOPEN: NONE2-1, 5-4, 8-7, 11-10: ONremark: PCB type
contact rating: 5A with resistive load of 120Vac or 28Vdc electrical life: 50000 make-and-break cycles at full load contact resistance: initially max. 10mohm at 2-4Vdc / 10mA for both coin silver and gold-plated contacts
insulation resistance: min. 1000Mohm dielectric strength: 1000Vrms at sea level operating temperature: -30°C to +85°C
materials: case: melamine or diallyl phthalate (DAP) toggle handle: brass, chrome-plated bushing: brass, nickel-plated housing: stainless steel end contact: coin silver, silver-plated end terminal: brass, silver-plated centre contact and terminal: brass, silver-plated
switching position: 2-3, 5-6, 8-9, 11-12: ONOPEN: NONE2-1, 5-4, 8-7, 11-10: ONremark: PCB type
contact rating: 5A with resistive load of 120Vac or 28Vdc electrical life: 50000 make-and-break cycles at full load contact resistance: initially max. 10mohm at 2-4Vdc / 10mA for both coin silver and gold-plated contacts
insulation resistance: min. 1000Mohm dielectric strength: 1000Vrms at sea level operating temperature: -30°C to +85°C
materials: case: melamine or diallyl phthalate (DAP) toggle handle: brass, chrome-plated bushing: brass, nickel-plated housing: stainless steel end contact: coin silver, silver-plated end terminal: brass, silver-plated centre contact and terminal: brass, silver-plated
