SKU:APC-16-350

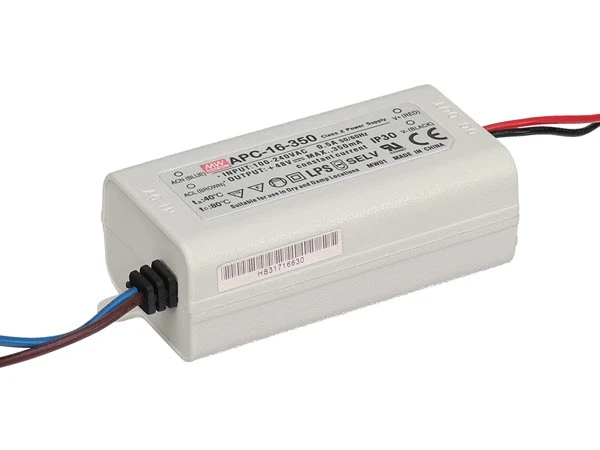

Image is for illustrative purposes only
Constant current design universal AC input / full range meets LPS requirement protection against: short circuit / overvoltage fully isolated plastic case small and compact size cooling: free air convection IP42 100 % full load burn-in test suitable for LED lighting and moving sign applications. Low cost / high reliability 2 years warranty.
Class II power unit, no FG (frame ground) Class 2 power unit
Class II power unit, no FG (frame ground) Class 2 power unit
Primary colours: White
Additional colours: Black, Red
Depth unit: 77 mm
Height unit: 29 mm
Width unit: 40 mm
Weight unit: 100 g
Number of outputs: 1
Housing type: Enclosed
Output power rating: 16.8 W
Output current rating: 350 mA
Series LED driver: APC
Dimming type: No dimming
IP rating: IP30
Input voltage rating VAC range: 90-264 V
Input voltage rating VDC range: 127-370 V
Input current rating: 0.3 A
Output voltage rating VDC range: 12-48 V
Technology type: Constant current mode
Additional colours: Black, Red
Depth unit: 77 mm
Height unit: 29 mm
Width unit: 40 mm
Weight unit: 100 g
Number of outputs: 1
Housing type: Enclosed
Output power rating: 16.8 W
Output current rating: 350 mA
Series LED driver: APC
Dimming type: No dimming
IP rating: IP30
Input voltage rating VAC range: 90-264 V
Input voltage rating VDC range: 127-370 V
Input current rating: 0.3 A
Output voltage rating VDC range: 12-48 V
Technology type: Constant current mode
-
