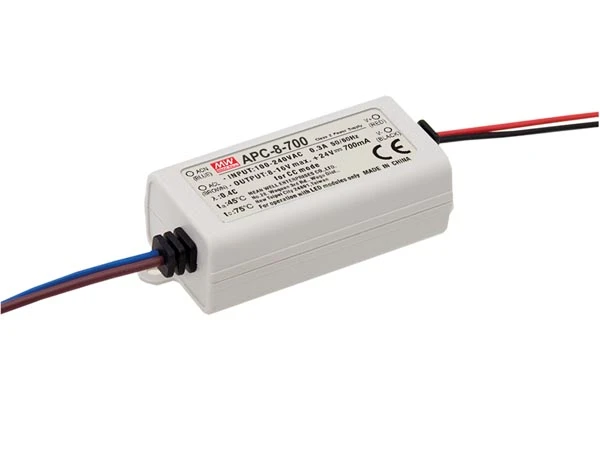

SKU:APC-8-700
Image is for illustrative purposes only
Constant current design universal AC input / full range class II power unit, no FG fully isolated plastic case IP42 design small and compact size.
Cooling: free air convection protection: short circuit no load power consumption of <0.5W.
100% full load burn-in test low cost / high reliability applications: indoor LED lighting LED decorative lighting LED office lighting.
100% full load burn-in test low cost / high reliability applications: indoor LED lighting LED decorative lighting LED office lighting.
Primary colours: White
Additional colours: Black, Red
Depth unit: 60 mm
Height unit: 23.5 mm
Width unit: 30 mm
Weight unit: 40 g
Number of outputs: 1
Housing type: Enclosed
Output power rating: 7.7 W
Output current rating: 700 mA
Series LED driver: APC
Dimming type: No dimming
IP rating: IP42
Input voltage rating VAC range: 90-264 V
Input voltage rating VDC range: 127-370 V
Input current rating: 0.15 A
Output voltage rating VDC range: 6-11 V
Technology type: Constant current mode
Additional colours: Black, Red
Depth unit: 60 mm
Height unit: 23.5 mm
Width unit: 30 mm
Weight unit: 40 g
Number of outputs: 1
Housing type: Enclosed
Output power rating: 7.7 W
Output current rating: 700 mA
Series LED driver: APC
Dimming type: No dimming
IP rating: IP42
Input voltage rating VAC range: 90-264 V
Input voltage rating VDC range: 127-370 V
Input current rating: 0.15 A
Output voltage rating VDC range: 6-11 V
Technology type: Constant current mode
-

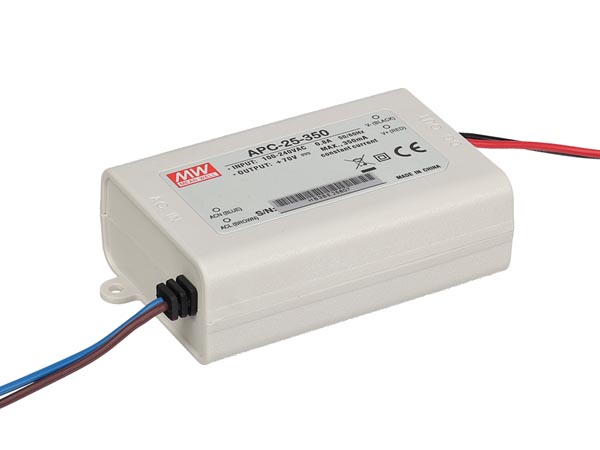

APC-25-35032.00 €Customer price30.40 €-5% -
LCM-4084.00 €Customer price79.80 €-5% -

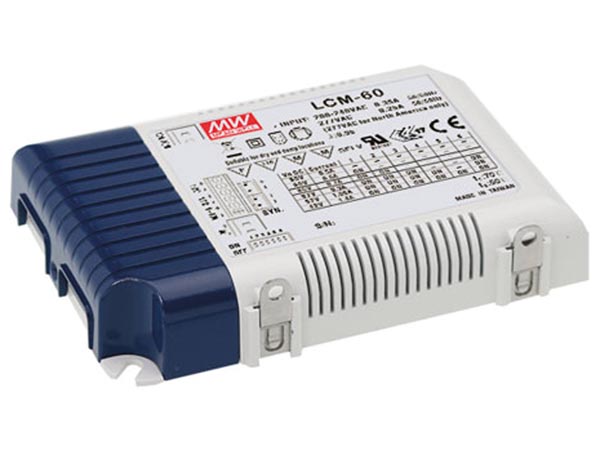

LCM-6094.00 €Customer price89.30 €-5% -

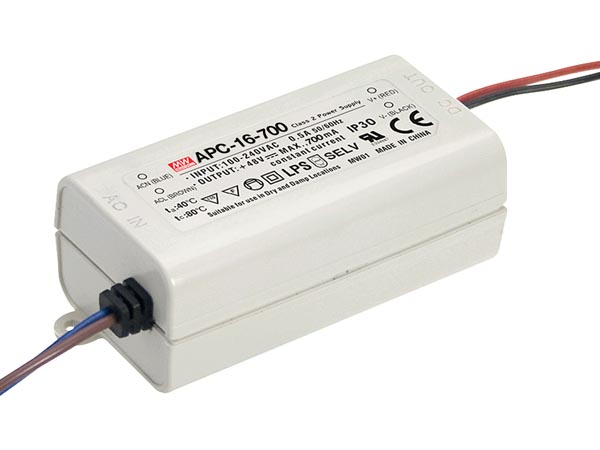

APC-16-70019.20 €Customer price18.24 €-5% -

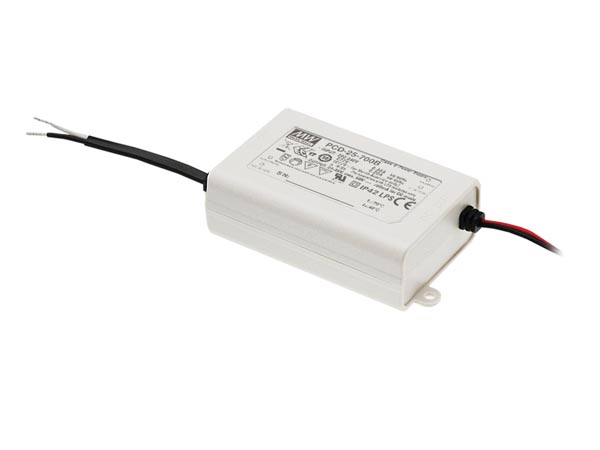

PCD-25-700B49.00 €Customer price46.55 €-5% -

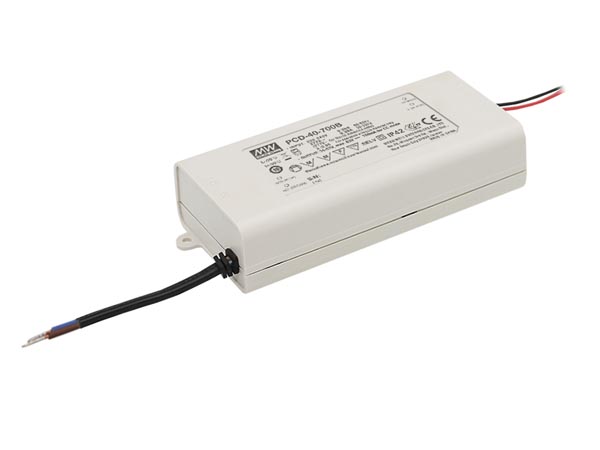

PCD-40-700B63.00 €Customer price59.85 €-5% -
PLM-12E-35026.00 €Customer price24.70 €-5% -
PLM-25E-35035.00 €Customer price33.25 €-5% -

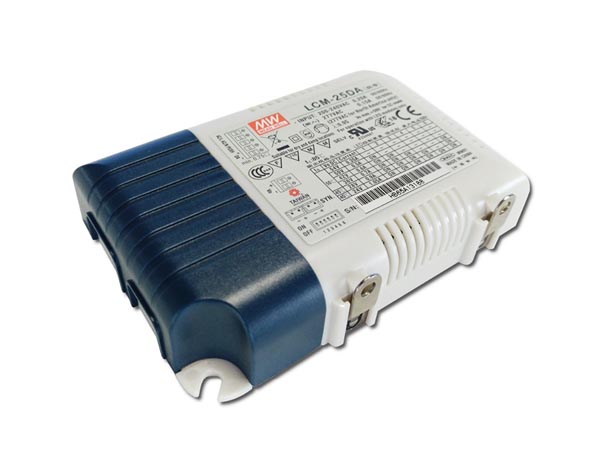

LCM-25DA86.00 €Customer price81.70 €-5% -

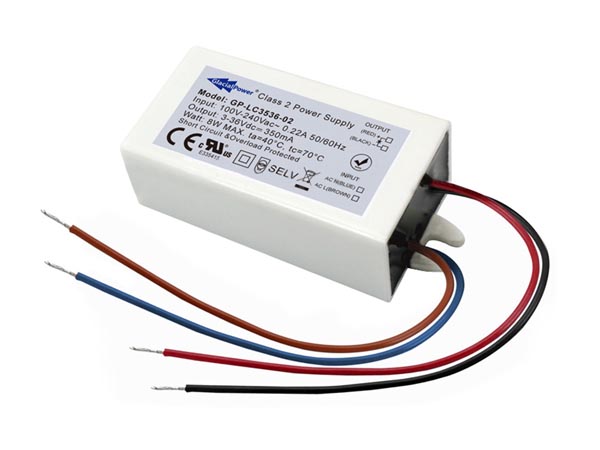

GP-LC3536-0221.60 €Customer price20.52 €-5% -

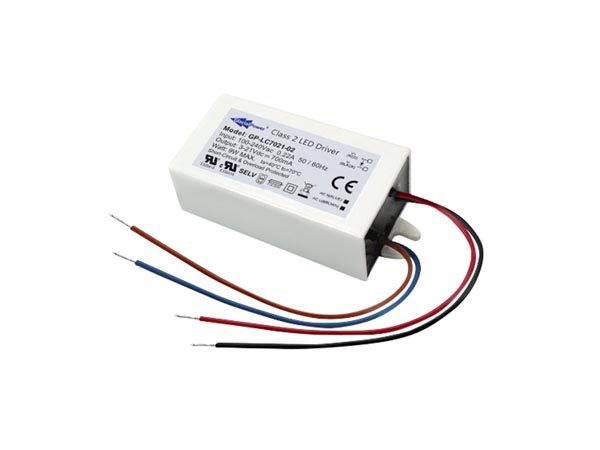

GP-LC7021-0215.30 €Customer price14.54 €-5%
