SKU:BSS12/L

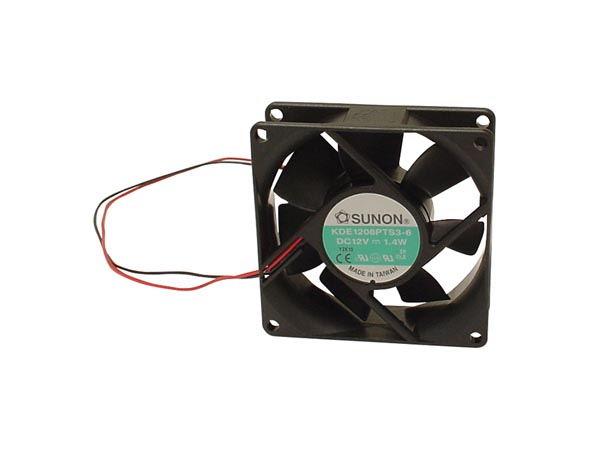

Image is for illustrative purposes only
Specifications

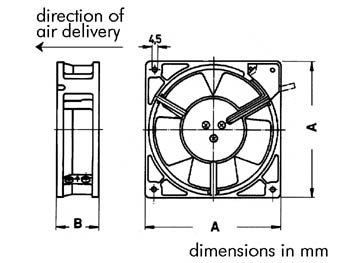

type: EF80251S3-1000U-A99size (A x A x B): 80 x 80 x 25mmbearing: sleeve
rated voltage: 12Vdcairflow: 56m³/hrcurrent: 70 mAspeed: 2600 rpmnoise (at 1m): 28dBAconnection: leads
weight: 75 gmaterial: thermoplastic PBT UL94-VOlocked rotor protection: no burnout for 72hrs in case of continuous operation
dielectric strength: 600Vac for 2 secondsinsulation resistance: 250Vdc, 10Mohmtolerance: speed ± 5% and airflow ± 10%
safety: UL/CSAoperating temperature: -10°C to +65°C
type: EF80251S3-1000U-A99size (A x A x B): 80 x 80 x 25mmbearing: sleeve
rated voltage: 12Vdcairflow: 56m³/hrcurrent: 70 mAspeed: 2600 rpmnoise (at 1m): 28dBAconnection: leads
weight: 75 gmaterial: thermoplastic PBT UL94-VOlocked rotor protection: no burnout for 72hrs in case of continuous operation
dielectric strength: 600Vac for 2 secondsinsulation resistance: 250Vdc, 10Mohmtolerance: speed ± 5% and airflow ± 10%
safety: UL/CSAoperating temperature: -10°C to +65°C
-
