SKU:K047BM/METAL
Image is for illustrative purposes only

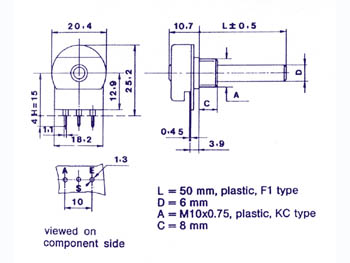

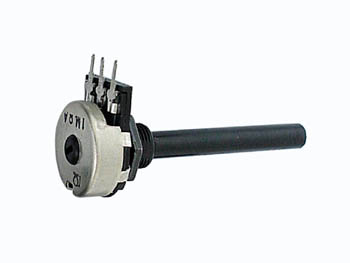

20mm rotary carbon track potentiometers for PCB mounting. Metal/plastic housing and plastic axe (Ø 6mm). Optional single-pole switch (1A-24Vdc / 0.3A-250Vac).
Features:
Features:
- logarithmic (B-series)
- mono
- no switch
- OMEG
- resistance range: 1K to 2M2 (E3-series)
- max. power dissipation: 0.2W
- tolerance: ±20%
- max. working voltage: 500Vdc
- temperature range: -10°C to +70°C
- electrical rotation: 300° ± 5°
