SKU:LPH-18-24

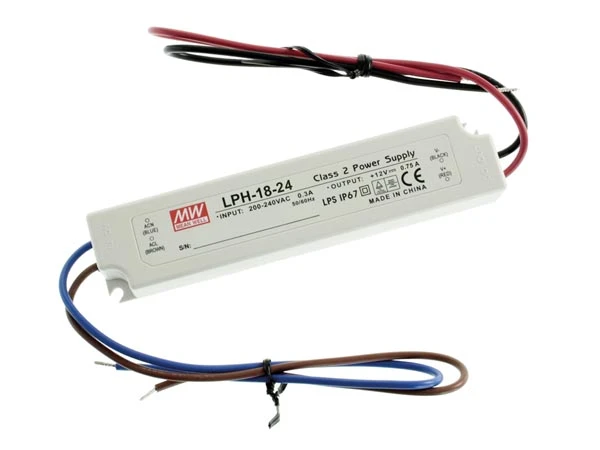

Image is for illustrative purposes only
180-264 VAC input onlyuniversal AC input / full rangefully encapsulated, IP67class II power unit, no FGpass LPScooling: free air convection100 % full load burn-in testlow cost / high reliabilitysuitable for LED lighting and moving sign applications
2 years warrantyshort circuit protectionoverload protectionover voltage protection (255V)thermal protection (80°)waterproof protection IP67
2 years warrantyshort circuit protectionoverload protectionover voltage protection (255V)thermal protection (80°)waterproof protection IP67
Instruction manual languages: English
Primary colours: White
Depth unit: 140 mm
Height unit: 22 mm
Width unit: 30 mm
Weight unit: 175 g
Material: ABS
Number of outputs: 1
Housing type: Encapsulated
Output power rating: 18 W
Output current rating: 0.75 A
Electrical protection: Overload, Overtemperature, Overvoltage, Short-circuit
Mounting type: Screw mounting
Power supply series: LPH
IP rating: IP67
Usage location: Indoor & outdoor
Output voltage rating VDC: 24 V
Input voltage rating VAC range: 180-264 V
Input voltage rating VDC range: 254-370 V
Technology type: Constant voltage mode
Input current rating at 230 VAC: 0.3 A
Input frequency range: 47-47 Hz
Primary colours: White
Depth unit: 140 mm
Height unit: 22 mm
Width unit: 30 mm
Weight unit: 175 g
Material: ABS
Number of outputs: 1
Housing type: Encapsulated
Output power rating: 18 W
Output current rating: 0.75 A
Electrical protection: Overload, Overtemperature, Overvoltage, Short-circuit
Mounting type: Screw mounting
Power supply series: LPH
IP rating: IP67
Usage location: Indoor & outdoor
Output voltage rating VDC: 24 V
Input voltage rating VAC range: 180-264 V
Input voltage rating VDC range: 254-370 V
Technology type: Constant voltage mode
Input current rating at 230 VAC: 0.3 A
Input frequency range: 47-47 Hz
