SKU:LPV-35-24

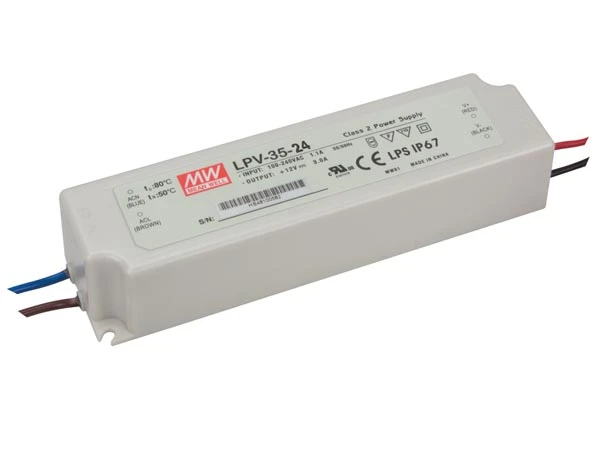

Image is for illustrative purposes only
Constant voltage design universal AC input / full range withstands 300 VAC surge input for 5 seconds protection against: short circuit / overload / overvoltage cooling: free air convection fully encapsulated, IP67 fully isolated plastic case class II power unit, no FG pass LPS.
Suitable for LED lighting and moving sign applications low cost / high reliability 100% full load burn-in test 2 years warranty.
Short circuit protection overload protection over voltage protection (255V) thermal protection (80°) waterproof protection IP67.
Short circuit protection overload protection over voltage protection (255V) thermal protection (80°) waterproof protection IP67.
Instruction manual languages: English
Primary colours: White
Depth unit: 148 mm
Height unit: 30 mm
Width unit: 40 mm
Weight unit: 340 g
Material: ABS
Number of outputs: 1
Housing type: Encapsulated
Output power rating: 35 W
Output current rating: 1.5 A
Electrical protection: Overload, Overtemperature, Overvoltage, Short-circuit
Mounting type: Screw mounting
Power supply series: LPV
IP rating: IP67
Usage location: Indoor & outdoor
Output voltage rating VDC: 24 V
Input voltage rating VAC range: 90-264 V
Input voltage rating VDC range: 127-370 V
Technology type: Constant voltage mode
Input current rating at 115 VAC: 1.1 A
Input current rating at 230 VAC: 0.7 A
Input frequency range: 47-63 Hz
Primary colours: White
Depth unit: 148 mm
Height unit: 30 mm
Width unit: 40 mm
Weight unit: 340 g
Material: ABS
Number of outputs: 1
Housing type: Encapsulated
Output power rating: 35 W
Output current rating: 1.5 A
Electrical protection: Overload, Overtemperature, Overvoltage, Short-circuit
Mounting type: Screw mounting
Power supply series: LPV
IP rating: IP67
Usage location: Indoor & outdoor
Output voltage rating VDC: 24 V
Input voltage rating VAC range: 90-264 V
Input voltage rating VDC range: 127-370 V
Technology type: Constant voltage mode
Input current rating at 115 VAC: 1.1 A
Input current rating at 230 VAC: 0.7 A
Input frequency range: 47-63 Hz
