SKU:M002AM

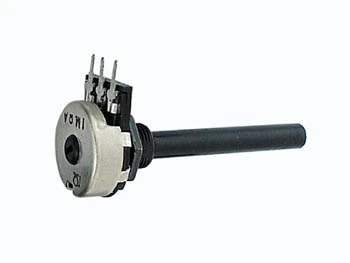

Image is for illustrative purposes only
20mm rotary carbon track potentiometers for PCB mounting. Metal/plastic housing and plastic axe (Ø 6mm). Optional single-pole switch (1A-24Vdc / 0.3A-250Vac).
SpecificationsProduct basic info
Primary colours: Black, Grey
Diameter unit: 6 mm
Depth unit: 20 mm
Height unit: 20 mm
Width unit: 60 mm
Weight unit: 6.3 g
Material: Metal
Additional material: PVC (polyvinyl chloride)
Detailed information: linear (A-series) mono no switch OMEG max. power dissipation: 0.4 W
Electrical data
Maximum resistance: 100 ohm
Minimum resistance: 4.7 megohm
General data
Product series: E3
Technical data
Tolerance (+/-): 20 %
Environmental data
Maximum operating temperature °C: 70 °C
Minimum operating temperature °C: -10 °C
Operational properties
Maximum operating voltage VDC: 500 V
Maximum electrical rotation angle: 300 °
