SKU:PIR1200C

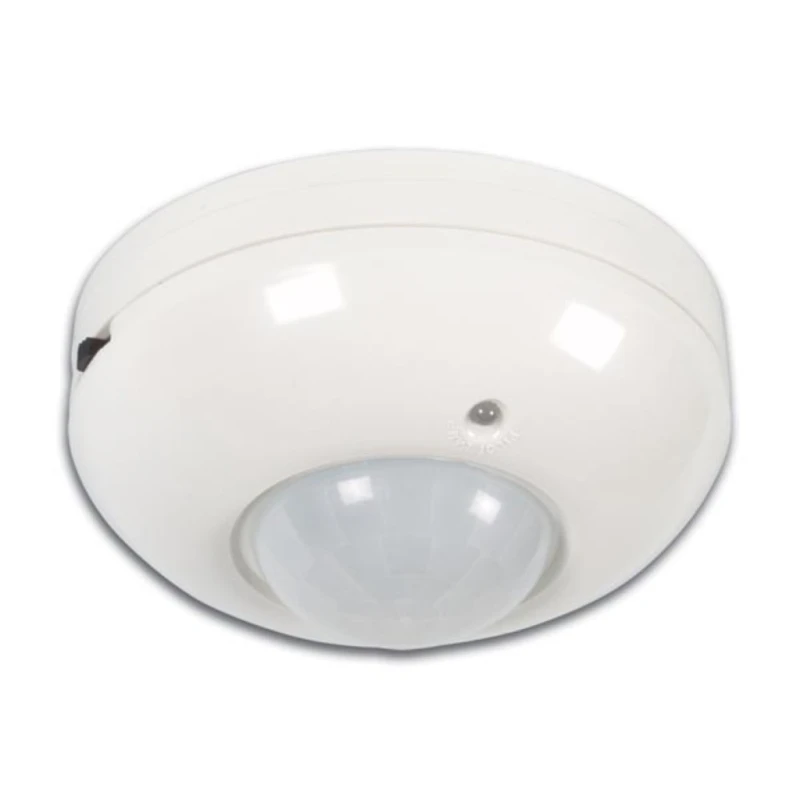

Image is for illustrative purposes only
with automatic day/night identificationeasy installationwide detection angleindications: on/off and detection
switch type: relay
power supply: 220-240 VAC, 50-60 Hz
light control: < 10 lux
time delay: min.: 5 s
max.: 6 min ± 1 min
rated load: 1200 W
detection distance: 6 m max.
detection range: side view: 120°
top view: 360°
operating temperature: -20 °C to +40 °C
operating humidity: < 93 % RH
installation height: 2-4 m
power consumption: 0.5 W (static 0.1 W)
detection speed: 0.6-1.5 m/s
dimensions: Ø 115 x 60 mm (H)
power supply: 220-240 VAC, 50-60 Hz
light control: < 10 lux
time delay: min.: 5 s
max.: 6 min ± 1 min
rated load: 1200 W
detection distance: 6 m max.
detection range: side view: 120°
top view: 360°
operating temperature: -20 °C to +40 °C
operating humidity: < 93 % RH
installation height: 2-4 m
power consumption: 0.5 W (static 0.1 W)
detection speed: 0.6-1.5 m/s
dimensions: Ø 115 x 60 mm (H)
-
