SKU:SUE40U

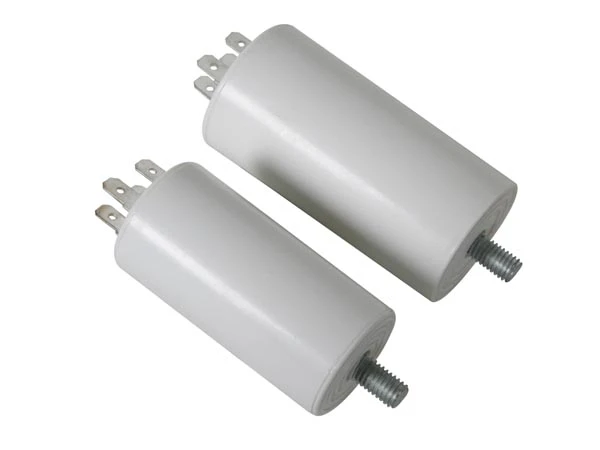

Image is for illustrative purposes only
Round capacitor in fire resistant housing. High moisture resistance and high insulation.

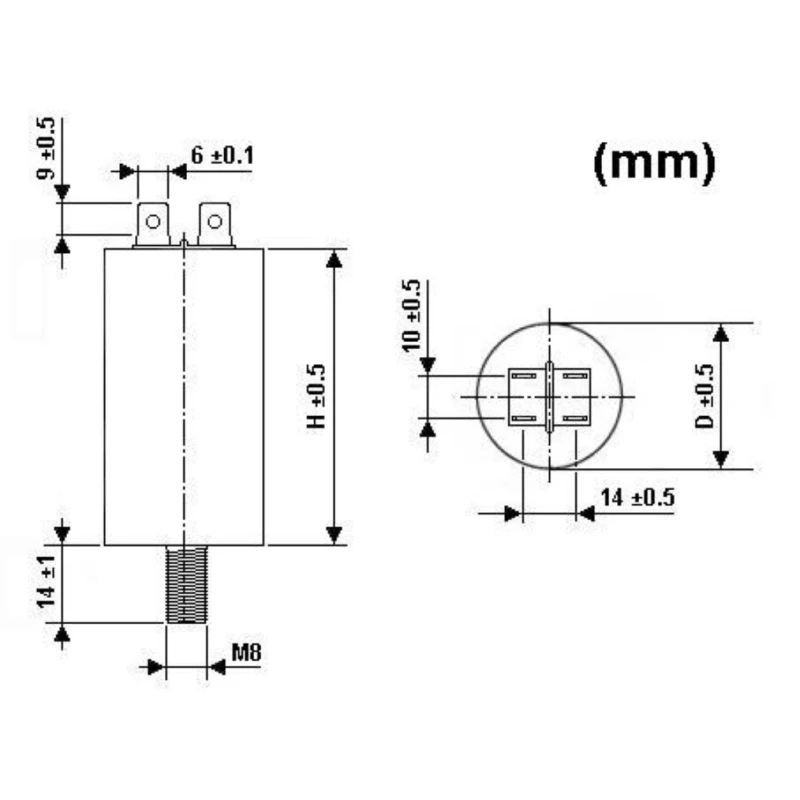

Dual male connectors and M8 screw for easy mounting. Applicable for 50/60Hz heavy duty lamps and motors.
SpecificationsProduct basic info
Primary colours: White
Diameter unit: 50 mm
Height unit: 100 mm
Weight unit: 145.5 g
Material: Bakelite
Additional material: Phenol
Physical properties
Shape: Round
Electrical data
Frequency rating simple select: 50/60 Hz
Technical data
Mounting type: Screw mounting
Capacitance: 40 µF
Capacitor type: Motor run capacitor
Dissipation factor: tg d = 1/Q : < 0.004 (100 Hz, 20 °C)
Environmental data
Operating temperature range: -25-85 °C
Operational properties
Connections
Screw thread connection: M8
Power supply
Voltage rating VAC: 450 V AC
