SKU:SV10

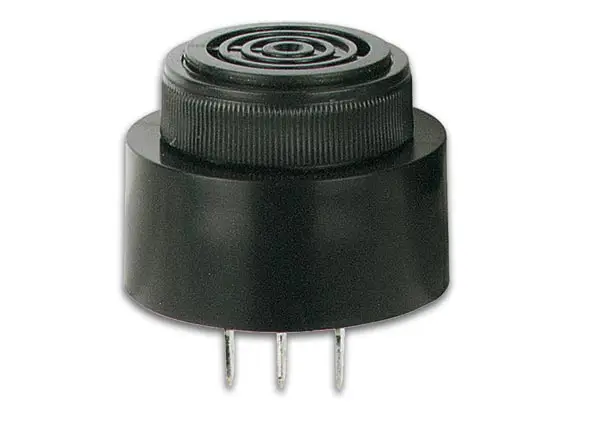

Image is for illustrative purposes only
Panel-mounting type with fast-on connectors
continuous or pulse mode operating power: 3-28 VDC / 8 mA
tone type: single / pulse
operating voltage: 4-28 VDC
rated voltage: 12 VDC
current consumption: 10 mA
osc. frequency: 2.9 ±0.5 kHz
sound level: 90 dB
connector type: faston
body colour: black
weight: 34.6 g
operating temperature: -20 ~ +70 °C
storage temperature: -30 ~ +80 °C
housing: ABS 757 UL94HB plastic resin
IP rating: 68
