SKU:TS-5A

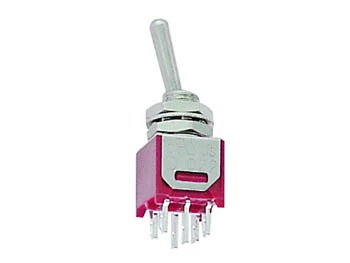

Image is for illustrative purposes only
Specifications
switching position: 2-3, 5-6: ONOPEN: OFF2-1, 5-4: ONremark: -contact rating: 3A with resistive load of 120Vac or 28Vdccontact resistance: initially max. 20mohm at 2-4Vdc / 100mA for both coin silver and gold-plated contactsdielectric strength: 1000Vrms at sea levelinsulation resistance: min. 1000Mohm
electrical life: 60000 make-and-break cycles at full loadoperating temperature range: -30°C to +85°C
materials: case: diallyl phthalate (DAP)toggle handle: brass, chrome-platedbushing: brass, nickel-platedhousing: stainless steelterminal/switch support: brass, electrolytic-platedcontacts: coin silver, silver-platedcentre contact and terminal: brass, silver-plated
switching position: 2-3, 5-6: ONOPEN: OFF2-1, 5-4: ONremark: -contact rating: 3A with resistive load of 120Vac or 28Vdccontact resistance: initially max. 20mohm at 2-4Vdc / 100mA for both coin silver and gold-plated contactsdielectric strength: 1000Vrms at sea levelinsulation resistance: min. 1000Mohm
electrical life: 60000 make-and-break cycles at full loadoperating temperature range: -30°C to +85°C
materials: case: diallyl phthalate (DAP)toggle handle: brass, chrome-platedbushing: brass, nickel-platedhousing: stainless steelterminal/switch support: brass, electrolytic-platedcontacts: coin silver, silver-platedcentre contact and terminal: brass, silver-plated
-
