SKU:PT7000-ET
Manufacturer:
PeakTech
Image is for illustrative purposes only

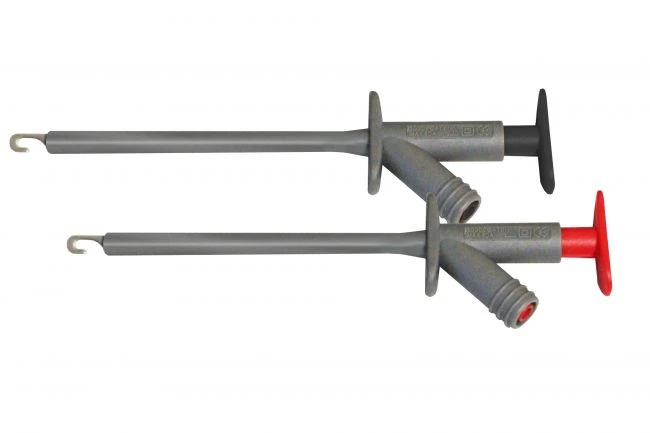

These measuring accessories with 4 mm sockets can be connected to almost all measuring devices.
Thanks to its hook-shaped alligator clips, it is possible to carry out measurements even in hard-to-reach points on a circuit.
A maximum of safety is achieved by the double insulation of the lines and the protection against accidental contact with conductive metal parts when closed.
This makes these accessories ideal for use in training and service.
Thanks to its hook-shaped alligator clips, it is possible to carry out measurements even in hard-to-reach points on a circuit.
A maximum of safety is achieved by the double insulation of the lines and the protection against accidental contact with conductive metal parts when closed.
This makes these accessories ideal for use in training and service.
Contains:: Tapping clamp
Double isolated:: ■
Input connector:: Hook (inflexible)
Nominal current (A):: 10 A
Output Connection:: 4 mm Plug
Over voltage category:: CAT III 1000 V
Touch guard:: ■
Safety according to IEC / EN 61010-031:2008
Overload category CAT III 1000 V
Double insulation of the wires
Contact protection of the conductive metal parts in closed state
Double isolated:: ■
Input connector:: Hook (inflexible)
Nominal current (A):: 10 A
Output Connection:: 4 mm Plug
Over voltage category:: CAT III 1000 V
Touch guard:: ■
Safety according to IEC / EN 61010-031:2008
Overload category CAT III 1000 V
Double insulation of the wires
Contact protection of the conductive metal parts in closed state
-
302-01001.50 €Customer price1.43 €-5% -
310-01001.00 €Customer price0.95 €-5%
