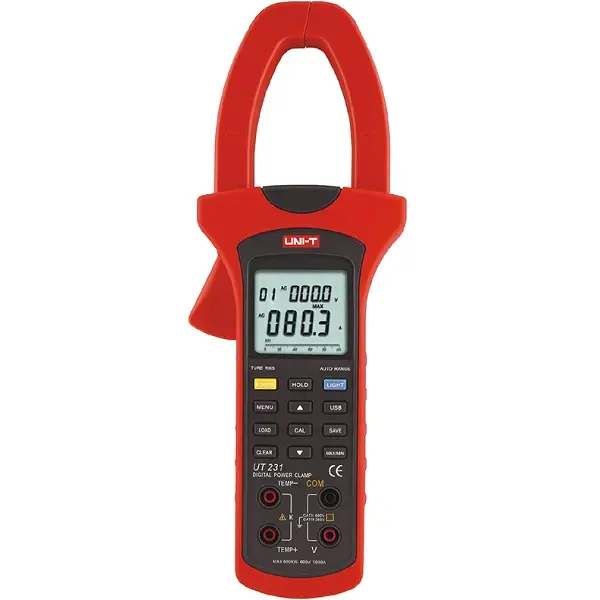

Võimsustangid AC 1000A 600V kW/kVA/kVAr/cos/f/t/kWh UNI-T UT231
SKU:UT231
Manufacturer:Uni-T
Image is for illustrative purposes only
AC Voltage: 15 V/100 V/300 V/600 V; ±(1,2%+5)
AC Current: 40 A/100 A/400 A/1000 A; ±(2%+5)
Active Power: 0,01 kW-600 kW; ±(3%+5)
Apparent Power: 0,01 kVA-600 kVA; ±(3%+5)
Reactive Power: 0,01 kVAr-600 kVAr; ±(4%+5)
Power Factor: 0,3-1 (Capacitive or Inductive); ±(0,02 2)
Phase angle: 0°-360°; ± 1°
Frequency response: 20 Hz-500 Hz
Active Energy: 1-9999 kWh; ±(3%+2)
Temperature: -50°C-1000°C / -58°F-1832°F
Power: 1,5 V (LR6) x4
LCD size: 46 mm x 42 mm
Product size: 303 x 112 x 39 mm
Product weight: 601 g
Alternating Voltage
600 ACV
Alternating Current
1000 ACA
Backlight
jah
Clamp Opening Size
55 mm
Safety
CAT III 600V
CAT IV 300V
CAT IV 300V
Tüüp
amp AC/kW
Power
600kW
Omadused
hold
True RMS
autorange
USB
True RMS
autorange
USB
Temperature
-50°C...+1000°C
Maximum reading
9999
-
